Kia Stinger: Active hood lift system / Active hood actuator assembly

Kia Stinger CK 2018-2025 Service Manual / Restraint / Active hood lift system / Active hood actuator assembly

Repair procedures
Replacement
1.

Disconnect the negative battery terminal.



After disconnecting the cables, wait at least 30 seconds.

2.

Remove the cowl top cover.

(Refer to Body - "Cowl Top Cover")

3.

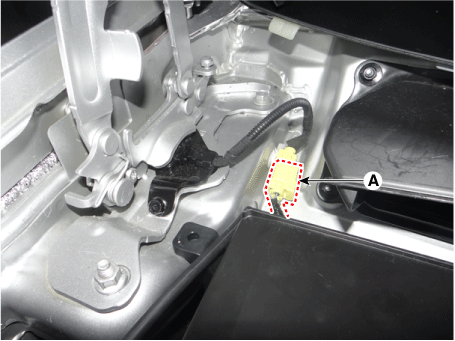

Disconnect the active hood actuator connector (A).

4.

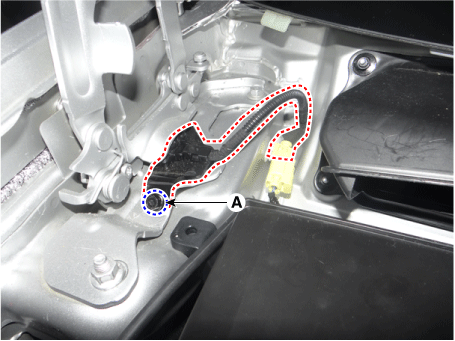

Remove the active hood actuator by loosening the bolt (A).

5.

Install in the reverse order of removal.
