Kia Stinger: Active hood lift system / Active hood sensor & unit assembly

Kia Stinger CK 2018-2025 Service Manual / Restraint / Active hood lift system / Active hood sensor & unit assembly

Repair procedures
Replacement
1.

Disconnect the negative battery terminal.



After disconnecting the cables, wait at least 30 seconds.

2.

Remove the front bumper assembly.

(Refer to Body - "Front Bumper Assembly")

3.

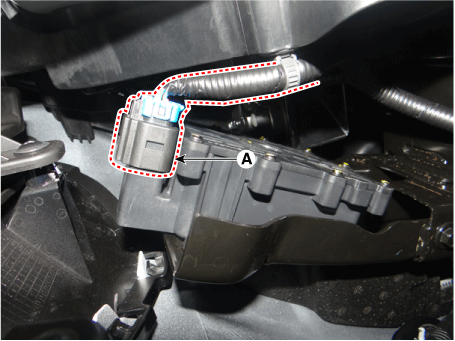

Disconnect the active hood unit connector (A).

4.

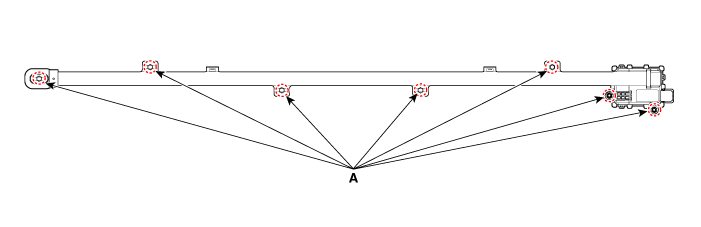

Remove the active hood unit by loosening the bolts (A).

5.

Install in the reverse order of removal.
