General safety information and caution
When Handling Refrigerant
1.

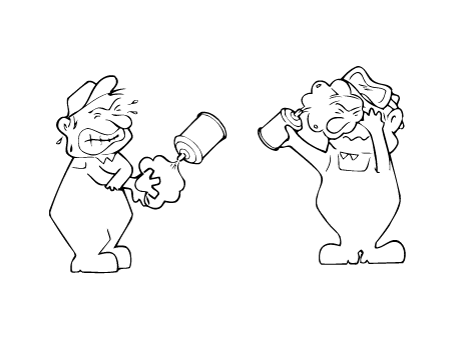

R-134a liquid refrigerant is highly volatile. A drop on the skin of your hand could result in localized frostbite. When handling the refrigerant, be sure to wear gloves.

2.

It is standard practice to wear goggles or glasses to protect your eyes, and gloves to protect your hands. If the refrigerant splashes into your eyes, wash off immediately with clean water.

3.

The R-134a container is highly pressurized. Never leave it in a hot place, and check that the storage temperature is below 52°C (126°F).

4.

An electronic leak detector should be used to check the system for refrigerant leakage. Bear in mind that the R-134a, upon coming into contact with flame, produces phosgene, a highly toxic gas.

5.

Use only recommended lubricant for R-134a systems. If lubricants other than the recommended type are used, system failure may occur.

6.

PAG lubricant absorbs moisture from the atmosphere at a rapid rate, therefore the following precautions must be observed:

When removing refrigerant components from a vehicle, cap the components immediately to prevent entry of moisture.

When installing refrigerant components to a vehicle, do not remove the cap until just before connecting the components.

Complete the connection of all refrigerant tubes and hoses without delay to prevent the A/C system from taking on moisture.

Use the recommended lubricant from a sealed container only.

7.

If an accidental discharge in the system occurs, ventilate the work area before resuming the service.

When Replacing Parts on A/C System

1.

Never open or loosen a connection before discharging the system.

2.

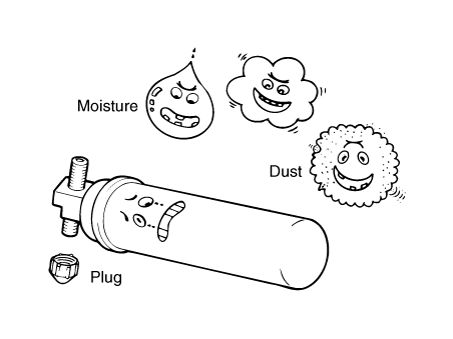

Seal the open fittings of components with a cap or plug immediately to prevent intrusion of moisture or dust.

3.

Do not remove the sealing caps from a replacement component until it is ready to be installed.

4.

Before connecting an open fitting, always install a new sealing ring. Coat the fitting and seal with refrigerant oil before making the connection.

When Installing Connecting Parts

Flange With Guide Pin

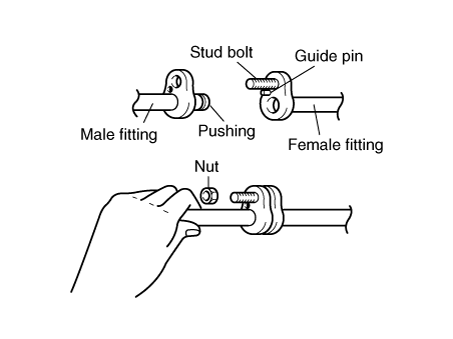

Check the new O-ring for damage (use only the specified) and lubricate by using compressor oil. Tighten the nut to the specified torque.

Handling Tubing and Fittings

The internal parts of the refrigeration system will remain in a state of chemical stability as long as pure moisture-free refrigerant and refrigerant oil are used. Abnormal amounts of dirt, moisture or air can upset the chemical stability and cause problems or serious damage.

The Following Precautions Must Be Observed

1.

When the refrigeration system needs to be opened, have everything you will need to service the system ready so the system will not be left open any longer than it is necessary.

2.

Cap or plug all lines and fittings as soon as they are opened to prevent entrance of dirt and moisture.

3.

All lines and components in parts stock should be capped or sealed until they are ready to be used.

4.

Never attempt to rebind formed lines to fit. Use the correct line for the installation you are servicing.

5.

All tools, including refrigerant dispensing manifold, gauge set manifold and test hoses, should be kept clean and dry.

Description and operation

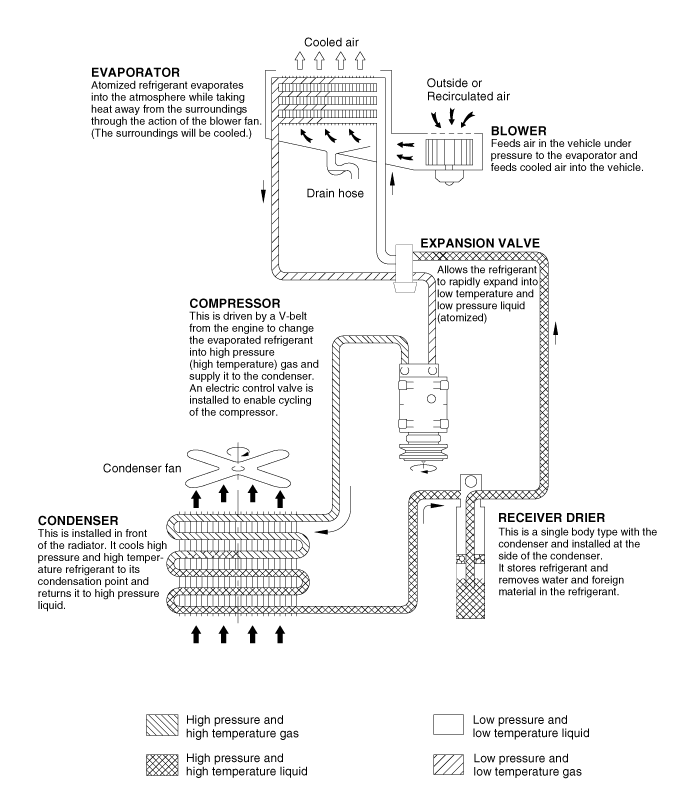

Refrigeration Cycle

Repair procedures
Checking Refrigerant Specifications
1.

Check refrigerant specifications label inside engine room.


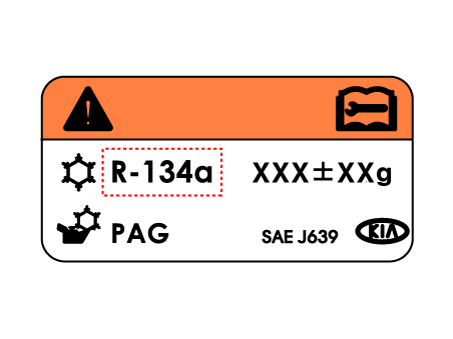

R-134a

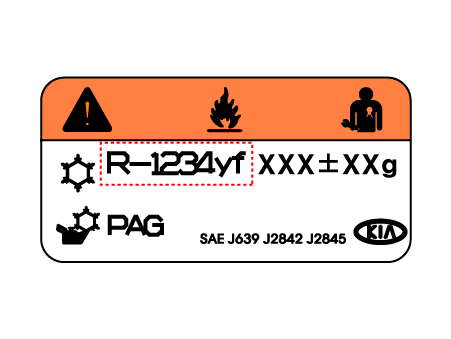

R-1234yf
Examples


2.

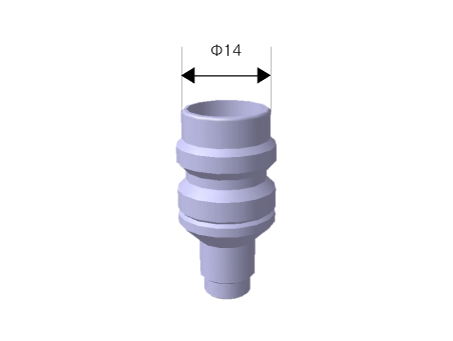

If refrigerant specifications label is not visible, check the refrigerant service port diameter.

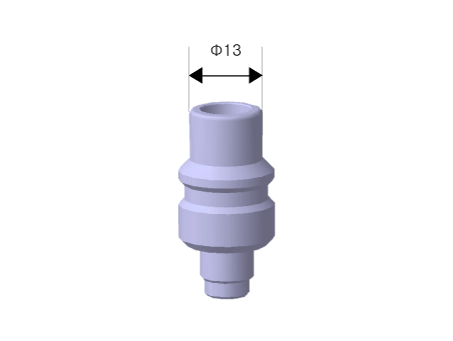

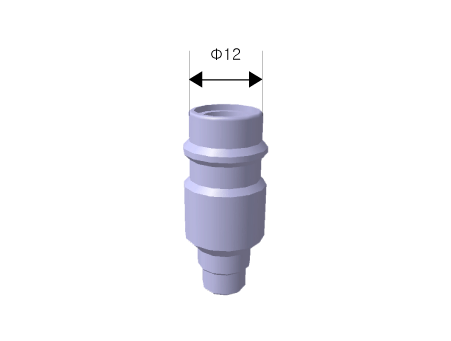

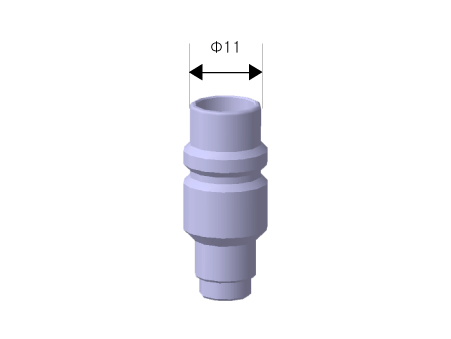

R-134a
R-1234yf
High pressure side

Low pressure side


※ Service port diameter for high/low pressure side varies based on refrigerant specification.

Refrigerant Recovery

Use only the UL-listed service equipment certified to meet the requirements of SAE J2210 to remove HFC-134a (R-134a) from the air conditioning system.



Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.

Be careful when connecting service equipment.

Do not breathe in refrigerant or vapor.

If accidental system discharge occurs, ventilate the work area before resume of service.

Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

1.

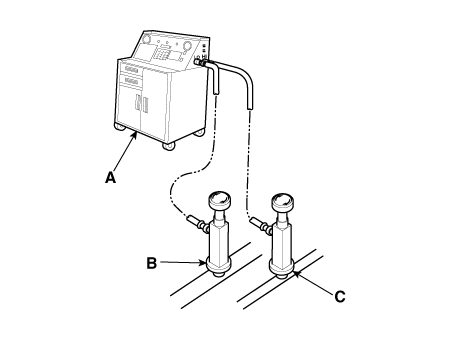

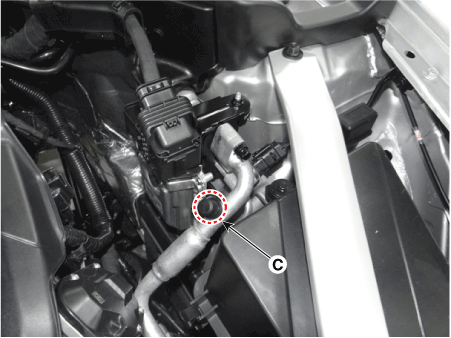

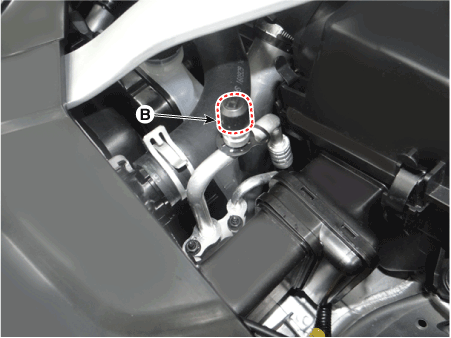

Connect an R-134a refrigerant Recovery / Recycling / Charging system (A) to the high-pressure service port (C) and the low-pressure service port (B) as shown, following the equipment manufacturer's instructions.

2.

Measure the amount of refrigerant oil removed from the A/C system after the recovery process is completed. Be sure to install the same amount of new refrigerant oil back into the A/C system before charging.

System Evacuation

Use only U.L.-listed service equipment that is certified to meet the requirements of SAE J2210 when removing HFC-134a (R-134a) from the air conditioning system.



Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.

Be careful when connecting service equipment.

Do not breathe in refrigerant or vapor.

If accidental system discharge occurs, ventilate work area before resuming to service.

Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

1.

When an A/C system has been opened to the atmosphere, during installation or repair, it must be evacuated using an R-134a refrigerant Recovery/Recycling/Charging system. (If the system has been open for several days, the receiver/drier should be replaced, and the system should be evacuated for several hours.)

2.

Connect an R-134a refrigerant Recovery/Recycling/Charging system (A) to the high-pressure service port (B) and the low-pressure service port (C) as shown, following the equipment manufacturer's instructions.

3.

If the low-pressure does not reach more than 93.3 kPa (700 mmHg, 27.6 in.Hg) in 10 minutes, there is probably a leakage in the system. Partially charge the system, and check for leakage. (See Refrigerant Leak Test.)

4.

Remove the low pressure valve from the low-pressure service port.

System Charging

Use only U.L.-listed service equipment that is certified to meet the requirements of SAE J2210 when removing HFC-134a (R-134a) from the air conditioning system.



Air conditioning refrigerant or lubricant vapor can irritate your eyes, nose, or throat.

Be careful when connecting service equipment.

Do not breathe in refrigerant or vapor.

If accidental system discharge occurs, ventilate the work area before resume of service.

Additional health and safety information may be obtained from the refrigerant and lubricant manufacturers.

1.

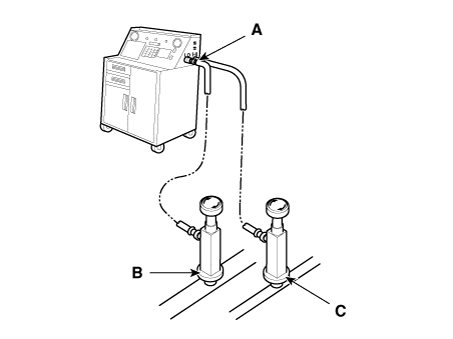

Connect an R-134a refrigerant Recovery/Recycling/Charging System (A) to the high-pressure service port (B) as shown, following the equipment manufacturer's instructions.

2.

Add the same amount of new refrigerant oil to the system that was removed during recovery. Use only specified refrigerant oil. Charge the system with R-134a or R-1234yf refrigerant. Do not overcharge the system as it may damage the compressor.

Specified amount

R-134a : 600 ± 25g (20.0 ± 0.88 oz.)

R-1234yf : 570 ± 25g (22.9 ± 0.88 oz.)

Refrigerant Leak Test

Always conduct a leak test with an electronic leak detector whenever leakage of refrigerant is suspected and when conducting service operations that accompany disassembling, loosening or connecting of fittings.



In order to use the leak detector properly, read the manual supplied by the manufacturer.

If a gas leak is detected, proceed as follows:

1.

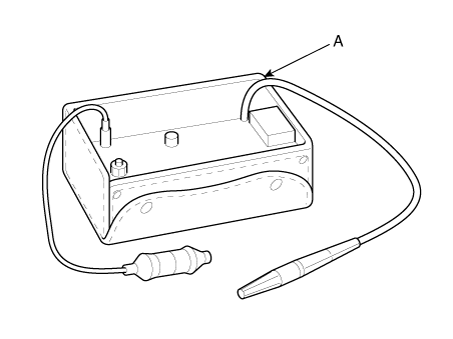

Check the tightening torque of the connection fittings, and if it is too loose, tighten to the proper torque. Using a leak detector (A), check for gas leakage.

2.

If leakage continues even after the fitting has been tightened, discharge the refrigerant from the system, disconnect the fittings, and check their seating faces for damage. Replace at all times even for a slight damage.

3.

Check the compressor oil and add oil if required.

4.

Charge the system and recheck for gas leaks. If no leaks are found, evacuate and charge the system again.

Components and components location
Component Location Index

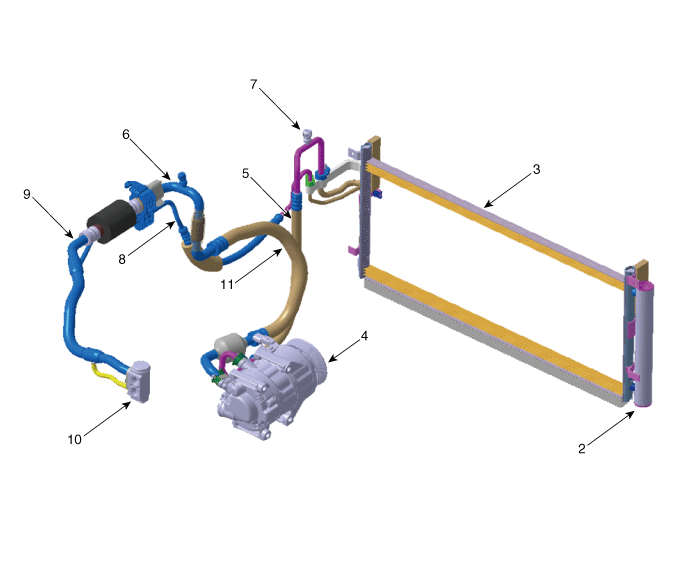

[Engine Room]

1. Ambient sensor
2. Receiver drier
3. Condenser
4. Compressor
5. Discharge hose
6. Service port (Low pressure)
7. Service port (High pressure)
8. A/C Pressure Transducer (APT)
9. Suction & Liquid tube assembly
10. Expansion valve
11. Suction hose

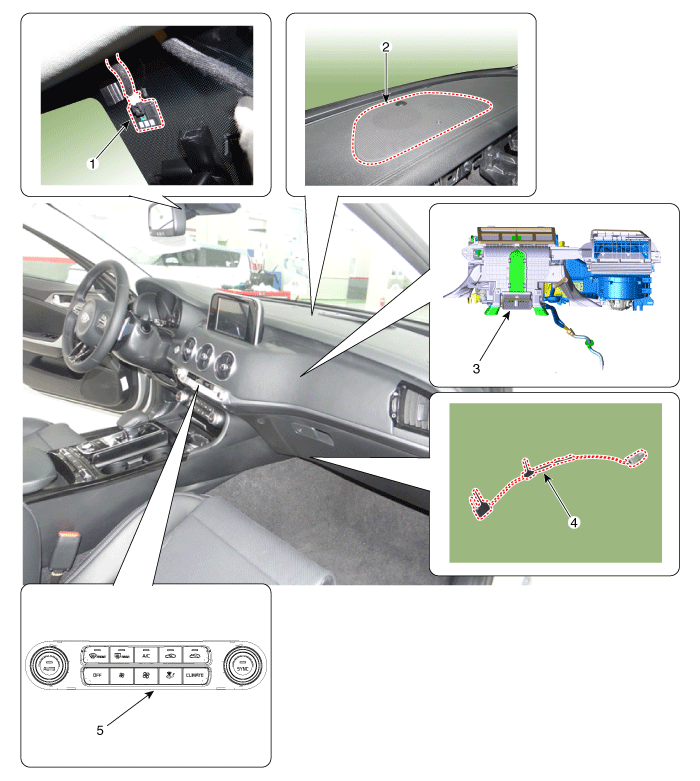

Interior

1. Auto Defogging Sensor
2. Photo Sensor
3. Heater & Blower Unit
4. Evaporator Temperature Sensor
5. Heater & A/C Control Unit (DATC)

Specifications
Service data Service data Air Conditioner Item Specification Compressor Type 7HV x 17 Oil type & ...

Compressor oil
Repair procedures Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oil ...
