Kia Stinger: Light bulb position (Side) / Back-up lamp bulb replacement

Kia Stinger CK 2018-2020 Owners Manual / Maintenance / Light bulb position (Side) / Back-up lamp bulb replacement

1. Open the liftgate.

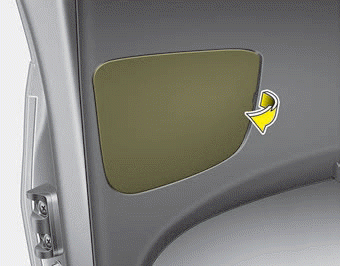

2. Remove the service cover of both side (drive side and passenger side).

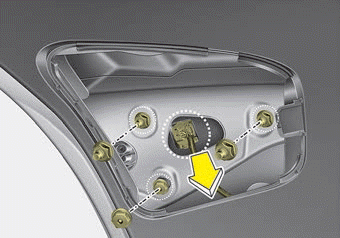

3. Remove the nuts from rear combination lamp of both side (drive side and passenger side).

4. Disconnect the connector from rear combination lamp of both side (drive side and passenger side).

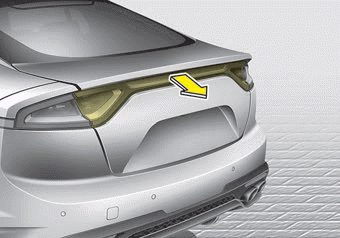

5. Remove the rear combination lamp assembly from the body of the vehicle.

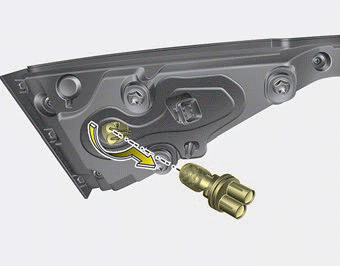

6. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

7. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket. Pull the bulb out of the socket.

8. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

9. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

10. Install the rear combination lamp assembly to the body of the vehicle.

11. Install the service cover by putting it into the service hole.
