Kia Stinger: Drive Belt System / Crankshaft Damper Pulley

Kia Stinger CK 2018-2021 Service Manual / Engine Mechanical System / Drive Belt System / Crankshaft Damper Pulley

Repair procedures
Removal
1.

Remove the engine room front under cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")

2.

Remove the drive belt and water pump belt.

(Refer to Drive Belt System - "Drive Belt")

3.

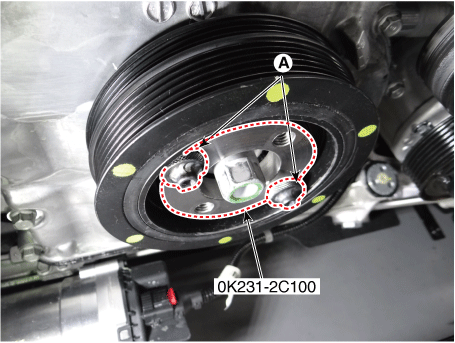

Install the SST (0K231-2C100) on the crankshatf damper pulley, and then tighten the bolts (A).

4.

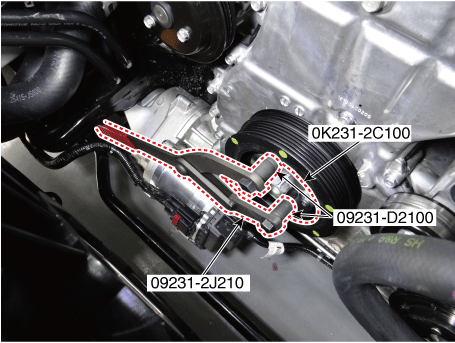

Install the SSTs (09231-2J210, 09231-D2100) on the SST (0K231-2C100) and then unfasten the crankshaft damper pulley mounting bolt.

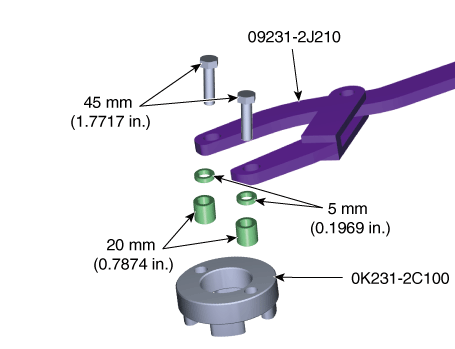

Inset a adapter 5 mm (0.1969 in.) + 20 mm (0.7874 in.) of SST (09231-D2100) between SST (09231-2J210) and SST (0K231-2C100).

And then tighten bolts 45 mm (1.7717 in.) of SST (09231-D2100)

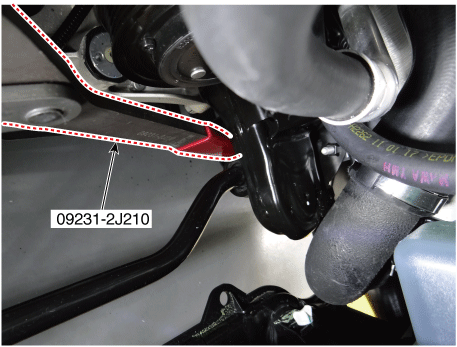

When unfasten the crankshaft damper pulley mounting bolt, fix the SST 09231-2J210 on the sub frame.

5.

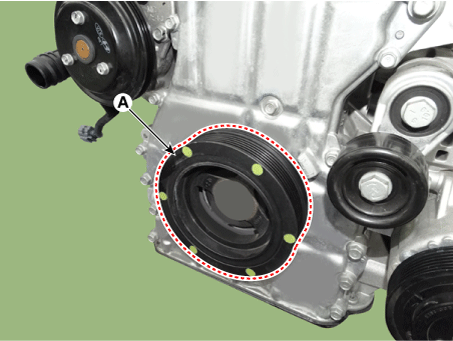

Remove the crankshaft damper pulley (A).

Installation
1.

Install the crankshaft damper pulley (A).

2.

Install the SST (0K231-2C100) on the crankshatf damper pulley, and then tighten the bolts (A).

3.

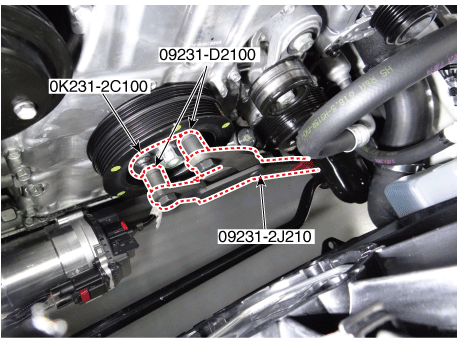

Install the SSTs (09231-2J210, 09231-D2100) on the SST (0K231-2C100) and then tighten the crankshaft damper pulley mounting bolt.



Inset a adapter 5 mm (0.1969 in.) + 20 mm (0.7874 in.) of SST (09231-D2100) between SST (09231-2J210) and SST (0K231-2C100).

And then tighten bolts 45 mm (1.7717 in.) of SST (09231-D2100)

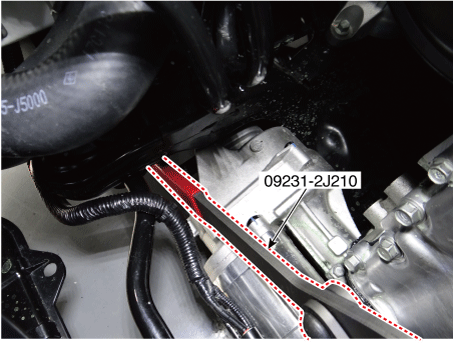

When tighten the crankshaft damper pulley mounting bolt, fix the SST 09231-2J210 on the sub frame.

4.

Remove the SSTs (09231-2J210, 09231-D2100, 0K231-2C100) from the crankshaft damper pulley.

5.

Install the water pump belt and drive belt.

(Refer to Drive Belt System - "Drive Belt")

6.

Install the engine room front under cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")
