Description and operation
Description

Installed inside the headliner, the curtain airbags (CAB) protect the driver and passengers from danger in the eThe SRSCM determines deployment of curtain airbag based on side impact sensor (SIS) signal.The SRSCM determines deployment of curtain airbag by using side impact sensor (SIS) signal.



Never attempt to measure the circuit resistance of the airbag module even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental airbag deployment will result in serious personal injury.

Components and components location
Components

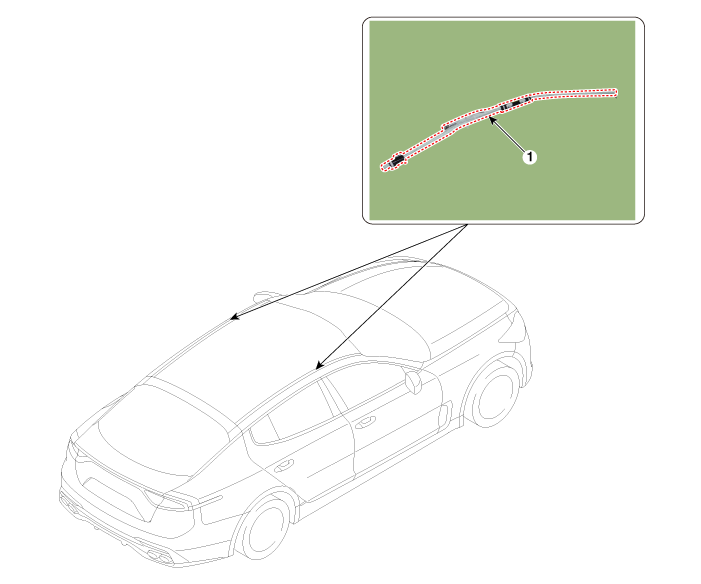

1. Curtain Airbag (CAB)


Repair procedures
Removal
1.

Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.

2.

Remove the roof trim.

(Refer to Body (Interior and Exterior) - "Roof Trim Assembly")

3.

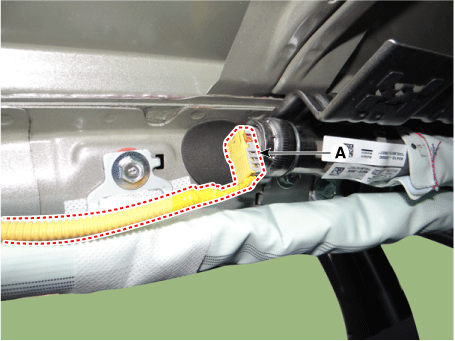

Disconnect the connector (A) from the curtain airbag module.

4.

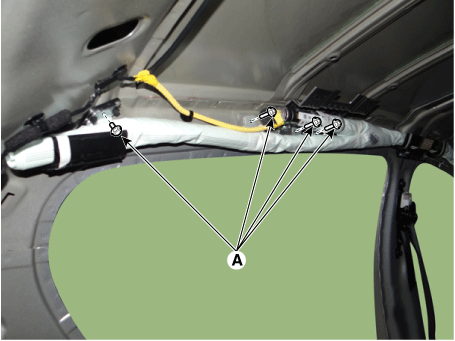

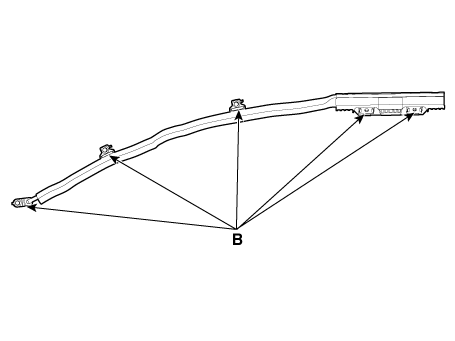

Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.

Tightening torque

Bolt : 7.7 - 11.7 N·m (0.79 - 1.2 kgf·m, 5.7 - 8.6 lb·ft)

Nut : 3.8 - 5.8 N·m (0.39 - 0.6 kgf·m, 2.8 - 4.3 lb·ft)



Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.

Installation
1.

Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.

2.

Install in the reverse order of removal.

3.

Reconnect the negative battery terminal.

4.

After installing the curtain airbag (CAB), confirm proper system operation:

Switch "ON" the ignition. The SRS indicator light should turn on for about six seconds and then off.
