Kia Stinger: Drive Belt System / Drive Belt Tensioner

Kia Stinger CK 2018-2022 Service Manual / Engine Mechanical System / Drive Belt System / Drive Belt Tensioner

Repair procedures
Removal and Installation
1.

Remove the drive belt.

(Refer to Drive Belt System - "Drive Belt")

2.

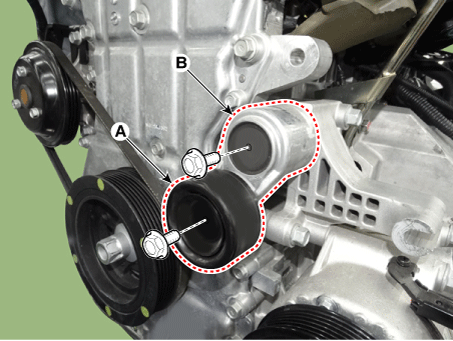

Remove the drive belt auto tensioner pulley (A).

Tightening torque :

53.9 - 63.7 N·m (5.5 - 6.5 kg·m, 39.8 - 47.0 lb·ft)



Tensioner pulley bolt is left-hands screw.

3.

Remove the drive belt tensioner (B).

Tightening torque :

53.9 - 63.7 N·m (5.5 - 6.5 kg·m, 39.8 - 47.0 lb·ft)

4.

Install in the reverse order of removal.
