Kia Stinger: Brake System / ESP(Electronic Stability Program) System

Kia Stinger CK 2018-2020 Service Manual / Brake System / ESP(Electronic Stability Program) System

Components and components location

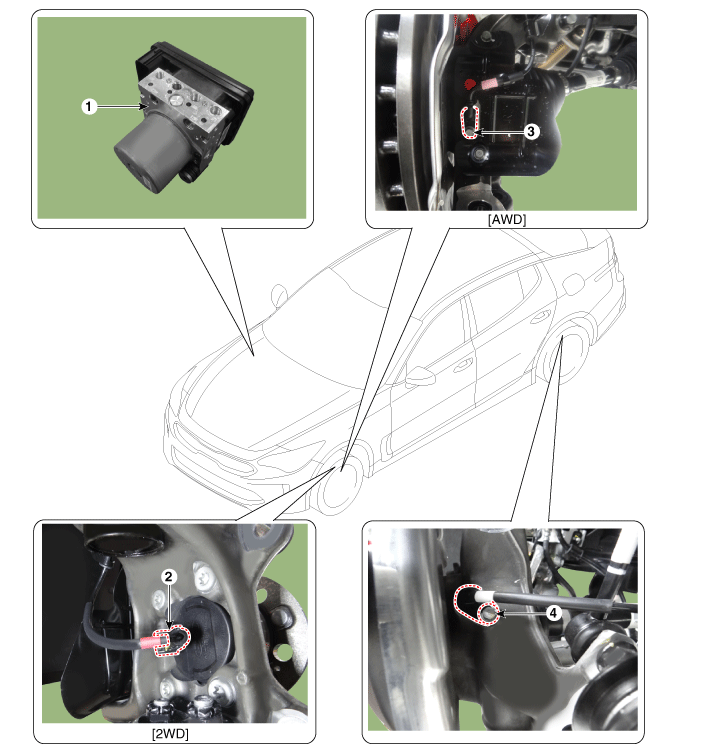

Components Location

1. HECU module
2. Front wheel speed sensor (2WD)
3. Front wheel speed sensor (AWD)
4. Rear wheel speed sensor

Description and operation
Description of ESP

Electronic Stability Program (ESP) recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by wheel-individual braking and engine control intervention.

ESP adds a further function known as Active Yaw Control (AYC) to the ABS, TCS, EBD and ESP functions. Whereas the ABS/TCS function controls wheel slip during braking and acceleration and, thus, mainly intervenes in the longitudinal dynamics of the vehicle, active yaw control stabilizes the vehicle about its vertical axis.

This is achieved by wheel individual brake intervention and adaptation of the momentary engine torque with no need for any action to be taken by the driver.

ESP essentially consists of three assemblies : the sensors, the electronic control unit and the actuators.

The stability control feature works under all driving and operating conditions. Under certain driving conditions, the ABS/TCS function can be activated simultaneously with the ESP function in response to a command by the driver.

In the event of a failure of the stability control function, the basic safety function, ABS, is still maintained.

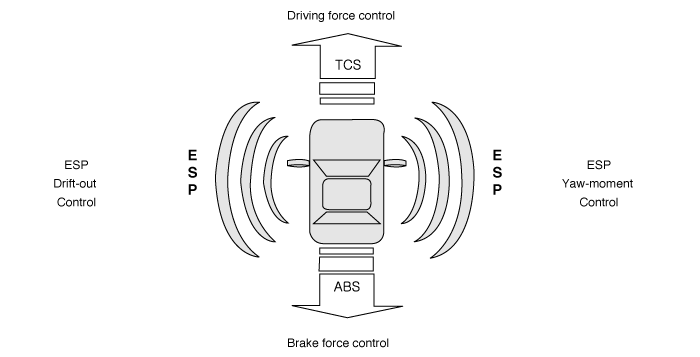

Description of ESP Control

ESP system includes ABS/EBD, TCS and AYC function.

ABS/EBD function : The ECU changes the active sensor signal (current shift) coming from the four wheel sensors to the square wave. By using the input of above signals, the ECU calculates the vehicle speed and the acceleration & deceleration of the four wheels. And, the ECU judges whether the ABS/EBD should be actuated or not.

TCS function prevents the wheel slip of drive direction by adding the brake pressure and engine torque reduction via CAN communication. TCS function uses the wheel speed sensor signal to determine the wheel slip as far as ABS function.

AYC function prevents unstable maneuver of the vehicle. To determine the vehicle maneuver, AYC function uses the maneuver sensor signals(Yaw Rate Sensor, Lateral Acceleration Sensor, Steering Wheel Angle Sensor).

If vehicle maneuver is unstable (Over Steer or Under Steer), AYC function applies the brake pressure on certain wheel, and send engine torque reduction signal by CAN.

After the key-on, the ECU continually diagnoses the system failure. (self-diagnosis)If the system failure is detected, the ECU informs driver of the system failure through the BRAKE/ABS/ESP warning lamp. (fail-safe warning)

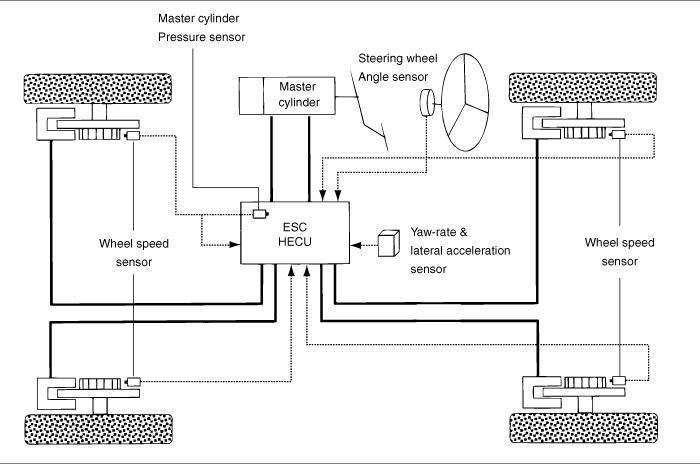

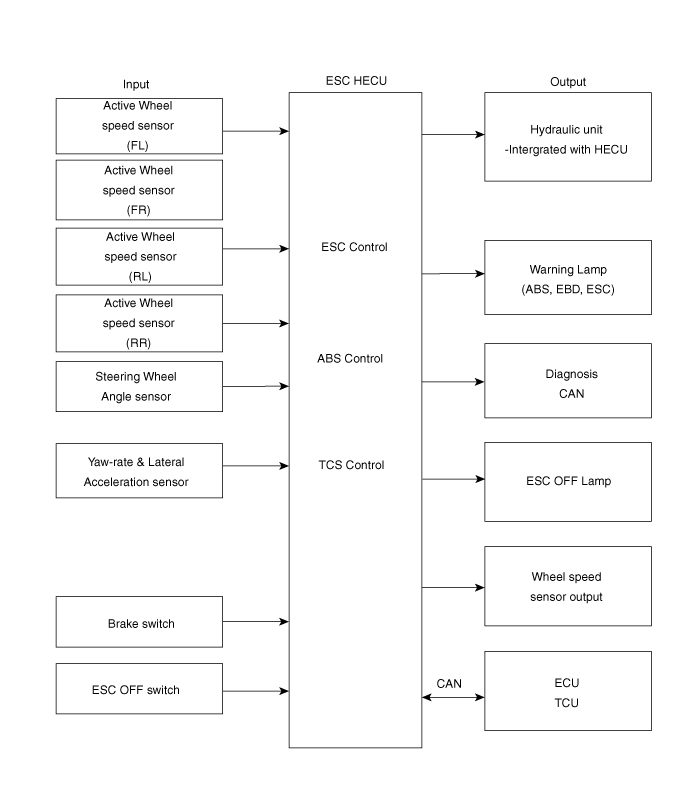

Input and Output Diagram

ESP Operation Mode

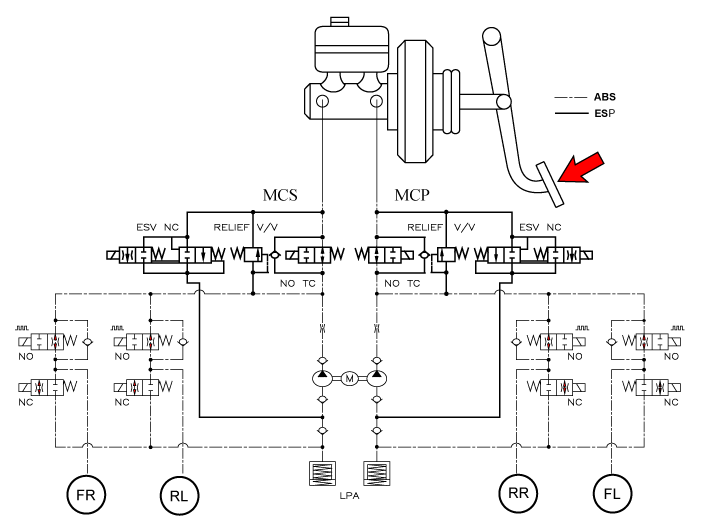

ESP Hydraulic System Diagram

1.

ESP Non-operation : Normal braking.

Solenoid valve
Continuity
Valve
Motor pump
TC Valve
IN (NO)
OFF
OPEN
OFF
OFF
OUT (NC)
OFF
CLOSE

2.

ESP operation

Solenoid valve
Continuity
Valve
Motor pump
TC Valve
Understeering
(Only inside of rear wheel)
IN(NO)
OFF
OPEN
ON
ON
OUT(NC)
OFF
CLOSE
Oversteering
(Only outside of front wheel)
IN(NO)
OFF
OPEN
OUT(NC)
OFF
CLOSE

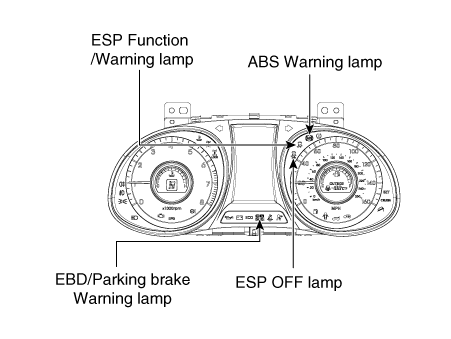

ABS Warning Lamp module

The active ABS warning lamp module indicates the self-test and failure status of the ABS. The ABS warning lamp shall be on:

During the initialization phase after IGN ON. (continuously 3 seconds).

In the event of inhibition of ABS functions by failure.

During diagnostic mode.

When the ECU Connector is seperated from ECU.

Cluster lamp is ON when communication is impossible with CAN module.

EBD/Parking Brake Warning Lamp Module

The active EBD warning lamp module indicates the self-test and failure status of the EBD. However, in case the Parking Brake Switch is turned on, the EBD warning lamp is always turned on regardless of EBD functions. The EBD warning lamp shallbe on:

During the initialization phase after IGN ON. (continuously 3 seconds).

When the Parking Brake Switch is ON or brake fluid level is low.

When the EBD function is out of order .

During diagnostic mode.

When the ECU Connector is seperated from ECU.

Cluster lamp is ON when communication is impossible with CAN module.

ESP Function/Warning Lamp (ESP system)

The ESP function/warning lamp indicates the self-test and failure status of the ESP.

The ESP function/warning lamp is turned on under the following conditions :

During the initialization phase after IGN ON. (continuously 3 seconds).

When the ESP function is inhibited by system failure.

When the ESP control is operating. (Blinking - 2Hz)

During diagnostic mode.(Except standard mode)

Cluster lamp is ON when communication is impossible with CAN module.

ESP Off Lamp (ESP system)

The ESP Off lamp indicates the self-test and operating status of the ESP.

The ESP Off lamp operates under the following conditions :

During the initialization mode after IGN ON. (continuously 3 seconds).

ESP Off lamp is On when driver input the ESP Off switch.

ESP On/Off Switch (ESP system)

The ESP On/Off Switch shall be used to toggle the ESP function between On/Off states based upon driver input.

The On/Off switch shall be a normally open, momentary contact switch.Closed contacts switch the circuit to ignition.

Initial status of the ESP function is on and switch toggle the state.

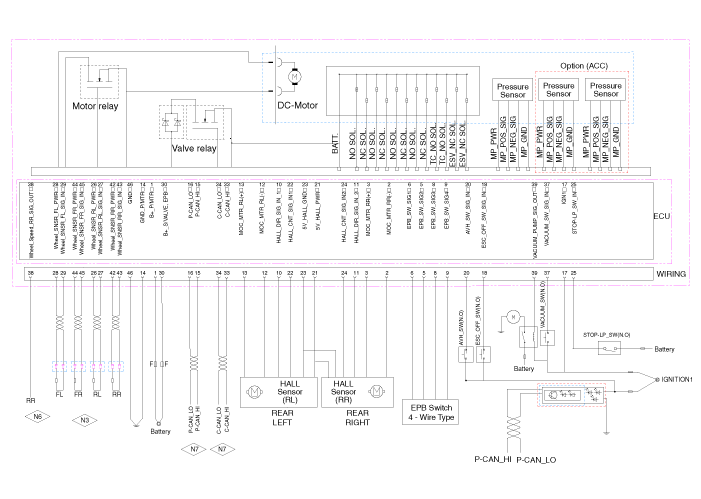

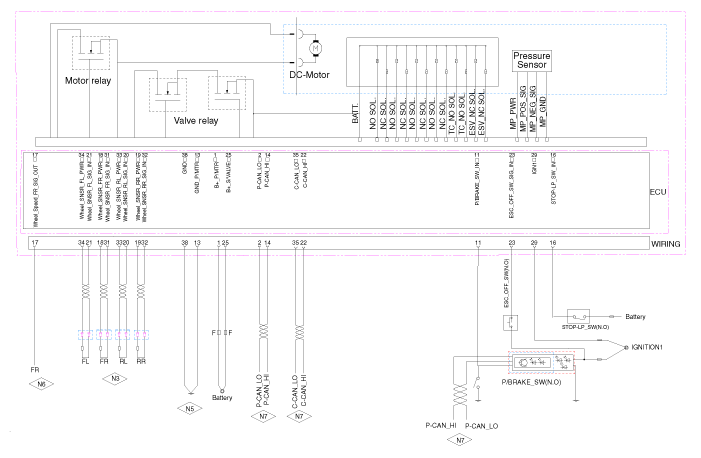

Schematic diagrams
Schematic Diagrams
Applied for EPB

Not applied for EPB

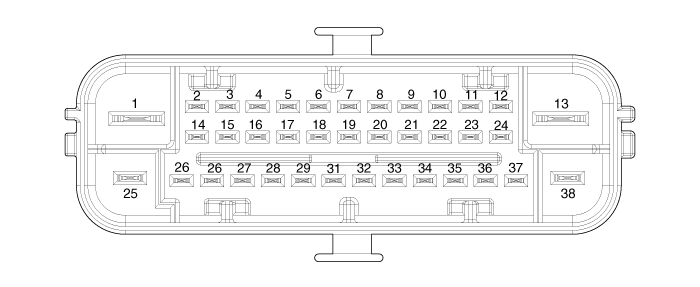

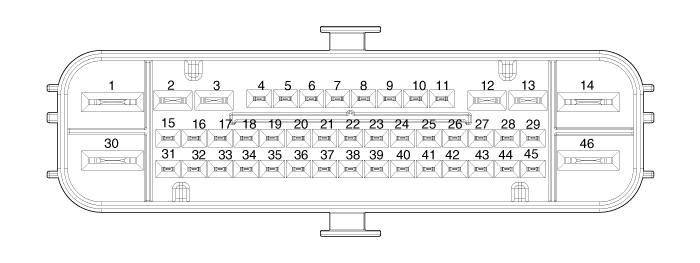

Terminal Function
Applied for EPB

Pin No
Description
1
Pump motor power
2
Motor ground (RR)
3
Motor power (RR)
5
EPB Switch signal 2 supply
6
EPB Switch signal 1 supply
8
EPB Switch signal 3 release
9
EPB Switch signal 4 release
10
Hall signal input 1
11
Hall signal input 2
12
Motor ground (RL)
13
Motor power (RL)
14
Pump motor ground
15
P-CAN High
16
P-CAN Low
17
IGN1
18
ESP ON/OFF
20
AVH ON/OFF switch signal
21
Hall sensor power (5V)
22
Hall signal input 1
23
Hall sensor ground
24
Hall signal input 2
25
Brake lamp switch signal
26
Wheel speed sensor power (RL)
27
Wheel speed sensor ground (RL)
28
Wheel speed sensor power (FL)
29
Wheel speed sensor ground (FL)
30
B+
33
C-CAN High
34
C-CAN Low
37
Vaccum switch signal input
38
Wheel speed sensor output (RR)
39
Vaccum pump signal output진공 펌프 신호 출력
42
Wheel speed sensor power (RR)
43
Wheel speed sensor ground (RR)
44
Wheel speed sensor power (FR)
45
Wheel speed sensor ground (FR)
46
Ground

Not applied for EPB

Pin No
Description
1
Pump motor supply power
2
P-CAN Low
13
Pump motor ground
14
P-CAN High
16
Brake lamp switch signal
17
Wheel speed sensor output (FR)
18
Wheel speed sensor power (FR)
19
Wheel speed sensor power (RR)
20
Wheel speed sensor signal ground (RL)
21
Wheel speed sensor signal ground (FL)
22
C-CAN High
23
ESP ON/OFF switch signal
25
B +
29
IGN1
31
Wheel speed sensor signal ground (FR)
32
Wheel speed sensor signal ground (RR)
33
Wheel speed sensor power (RL)
34
Wheel speed sensor power (FL)
35
C-CAN Low
38
Ground

Troubleshooting
Failure Diagnosis
1.

In principle, ESP and TCS controls are prohibited in case of ABS failure.

2.

When ESP or TCS fails, only the failed system control is prohibited.

3.

However, when the solenoid valve relay should be turned off in case of ESP failure, refer to the ABS fail-safe.

4.

Information on ABS fail-safe is identical to the fail-safe in systems where ESP is not installed.

Memory of Fail Code

1.

It keeps the code as far as the backup lamp power is connected. (O)

2.

It keeps the code as far as the HCU power is on. (X)

Failure Checkup

1.

Initial checkup is performed immediately after the HECU power on.

2.

Valve relay checkup is performed immediately after the IG2 ON.

3.

It executes the checkup all the time while the IG2 power is on.

Countermeasures in Fail

1.

Turn the system down and perform the following actions and wait for HECU power OFF.

2.

Turn the valve relay off.

3.

Stop the control during the operation and do not execute any until the normal condition recovers.

Warning Lamp ON

1.

ESP warning lamp turn on for 3sec after IGN ON.

2.

ESP function lamp blinks when ESP Act.

3.

If ESP fail occured, ESP warning turns ON.

4.

ESP OFF lamp turn on in case of

ESP Switch OFF

3sec after IGN ON

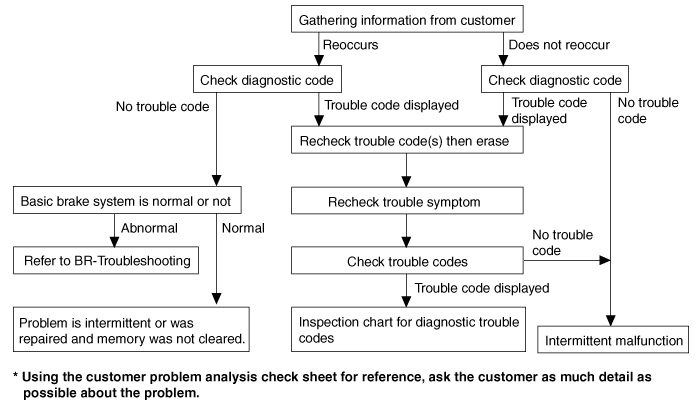

Standard Flow of Diagnostic Troubleshooting

Notes With Regard To Diagnosis

The phenomena listed in the following table are not abnormal.

Condition
Explanation
System check sound
When starting the engine, a thudding sound can sometimes be heard coming
from inside the engine compartment. This is because the system operation
check is being performed.
ABS operation sound
1)

Sound of the motor inside the ABS hydraulic unit operation (whine).

2)

Sound is generated along with vibration of the brake pedal (scraping).

3)

When ABS operates, sound is generated from the vehicle chassis due to

repeated brake application and release

(Thump : suspension; squeak: tires)

ABS operation (Long braking distance)
For road surfaces such as snow-covered and gravel roads, the braking distance for vehicles with ABS can sometimes be longer than that for other vehicles. Accordingly, advise the customer to drive safely on such roads by lowering the vehicle speed.
Diagnosis detection conditions can vary depending on the diagnosis code. When checking the trouble symptom after
the diagnosis code has been erased, ensure that the requirements listed in "Comment" are met.

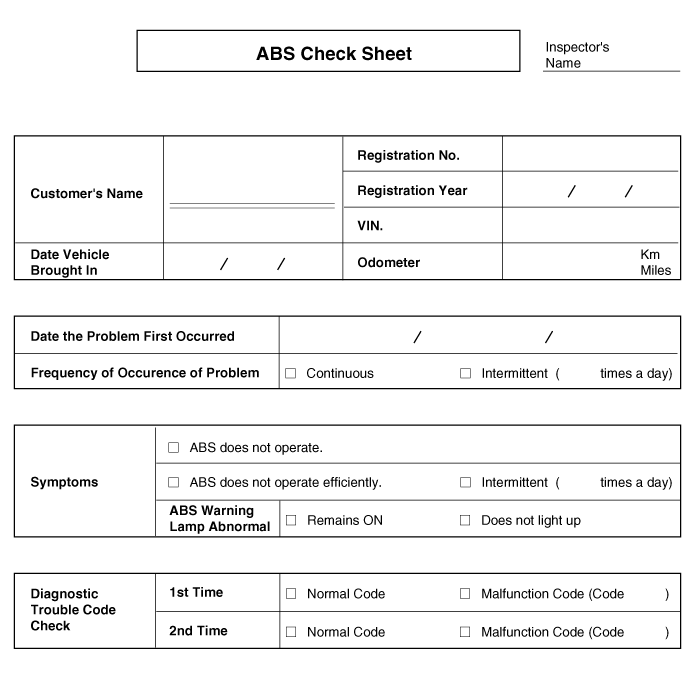

ABS Check Sheet

Problem Symptoms Table

Symptom
Suspect Area
ABS does not operate.
Only when 1 - 4 are all normal and the problem is still occurring, replace the HECU.
1)

Check the DTC reconfirming that the normal code is output.

2)

Power source circuit.

3)

Speed sensor circuit.

4)

Check the hydraulic circuit for leakage.

ABS does not operate intermittently.
Only when 1 - 4 are all normal and the problem is still occurring, replace the ABS actuator assembly.
1)

Check the DTC reconfirming that the normal code is output.

2)

Wheel speed sensor circuit.

3)

Stop lamp switch circuit.

4)

Check the hydraulic circuit for leakage.

Communication with KDS
is not possible.
(Communication with any system is
not possible)
1)

Power source circuit

2)

CAN line

Communication with KDS
is not possible.
(Communication with ABS only is
not possible)
1)

Power source circuit

2)

CAN line

3)

HECU

When ignition key is turned ON
(engine OFF),
the ABS warning lamp does not light up.
1)

ABS warning lamp circuit

2)

HECU

Even after the engine is started, the ABS
warning lamp remains ON.
1)

ABS warning lamp circuit

2)

HECU




During ABS operation, the brake pedal may vibrate or may not be able to be depressed. Such phenomena are due to intermittent changes in hydraulic pressure inside the brake line to prevent the wheels from locking and is not an abnormality.

Detecting condition

Trouble Symptoms
Possible Cause
Brake operation varies depending on driving conditions and road surface conditions, so diagnosis can be difficult. However if a normal DTC is displayed, check the following probable cause. When the problem is still occurring, replace the ESP control module.

Faulty power source circuit

Faulty wheel speed sensor circuit

Faulty hydraulic circuit for leakage

Faulty HECU


Inspection procedures

DTC Inspection

1.

Connect the KDS with the data link connector and turn the ignition switch ON.

2.

Verify that the DTC code is output.

3.

Is the DTC code output?

▶ Check the power source circuit.

▶ Erase the DTC and recheck using KDS.

Check the power source circuit

1.

Disconnect the connector from the ESP control module.

2.

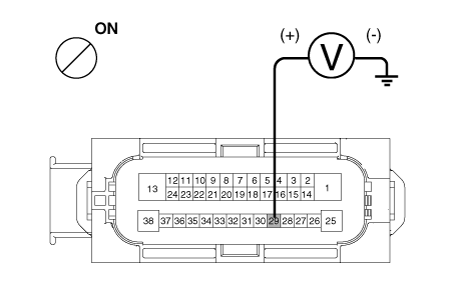

Turn the ignition switch ON, measure the voltage between terminal 29 of the ESP control module harness side connector and body ground.

Specification: approximately B+

3.

Is the voltage within specification?

▶ Check the ground circuit.

▶ Check the harness or connector between the fuse (10A) in the engine compartment junction block and the ESP control module. Repair if necessary.

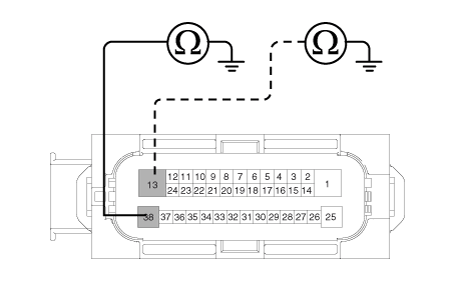

Check the ground circuit

1.

Disconnect the connector from the ESP control module.

2.

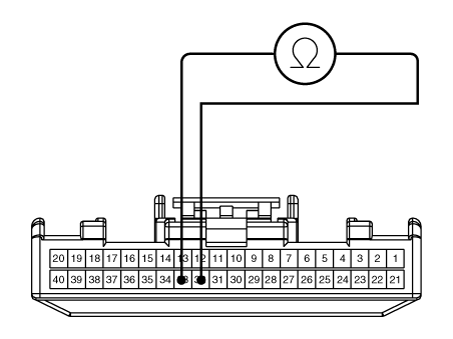

Check for continuity between terminals 13, 38 of the ESP control module harness side connector and ground point.

3.

Is there continuity?

▶ Check the wheel speed sensor circuit.

▶ Repair an open in the wire and ground point.

Check the wheel speed sensor circuit

1.

Refer to the DTC troubleshooting procedures.

2.

Is it normal?

▶ Check the hydraulic circuit for leakage.

▶ Repair or replace the wheel speed sensor.

Check the hydraulic circuit for leakage

1.

Refer to the hydraulic lines.

2.

Inspect leakage of the hydraulic lines.

3.

Is it normal?

▶ The problem is still occurring, replace the ESP control module.

▶ Repair the hydraulic lines for leakage.

Detecting condition

Trouble Symptoms
Possible Cause
Brake operation varies depending on driving conditions and road surface conditions, so diagnosis can be difficult. However if a normal DTC is displayed, check the following probable cause. When the problem is still occurring, replace the ESP control module.

Faulty power source circuit

Faulty wheel speed sensor circuit

Faulty hydraulic circuit for leakage

Faulty HECU


Inspection procedures

DTC Inspection

1.

Connect the KDS with the data link connector and turn the ignition switch ON.

2.

Verify that the DTC code is output.

3.

Is the DTC code output?

▶ Check the wheel speed sensor circuit.

▶ Erase the DTC and recheck using KDS.

Check the wheel speed sensor circuit

1.

Refer to the DTC troubleshooting procedures.

2.

Is it normal?

▶ Check the stop lamp switch circuit.

▶ Repair or replace the wheel speed sensor.

Check the stop lamp switch circuit

1.

Check that stop lamp lights up when brake pedal is depressed and turns off when brake pedal is released.

2.

Measure the voltage between terminal 23 of the ESP control module harness side connector and body ground when brake pedal is depressed.

Specification : approximately B+

3.

Is the voltage within specification?

▶ Check the hydraulic circuit for leakage.

▶ Repair the stop lamp switch. Repair an open in the wire between the ESP control module and the stop lamp switch.

Check the hydraulic circuit for leakage

1.

Refer to the hydraulic lines.

2.

Inspection leakage of the hydraulic lines.

3.

Is it normal?

▶ The problem is still occurring, replace the ESP control module.

▶ Repair the hydraulic lines for leakage.

Detecting condition

Trouble Symptoms
Possible Cause
Possible defect in the power supply system (including ground) for the diagnosis line.

An open in the wire

Poor ground

Faulty power source circuit


Inspection procedures

Check The Power Supply Circuit For The Diagnosis

1.

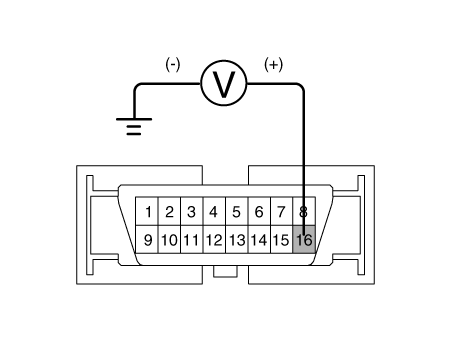

Measure the voltage between terminal 16 of the data link connector and body ground.

Specification : approximately B+

2.

Is voltage within specification?

▶ Check the ground circuit for the diagnosis.

▶ Repair an open in the wire. Check and replace fuse from the engine compartment junction block.

Check the ground circuit for the diagnosis

1.

Check for continuity between terminal 4 of the data link connector and body ground.

2.

Is there continuity?

▶ Repair an open in the wire between terminal 4 of the data link connector and ground point.

Detecting condition

Trouble Symptoms
Possible Cause
When communication with KDS is not possible, the cause may be probably an open in the HECU power circuit or an open in the diagnosis output circuit.

An open in the wire

Faulty HECU

Faulty power source circuit


Inspection procedures

Check for Continuity in the CAN Line

1.

Disconnect the connector from the ESP control module.

2.

Check for continuity between terminals 26, 14 of the ESP control module connector and 3, 11 of the data link connector.

3.

Is there continuity?

▶ Check the power source of ESP control module.

▶ Repair an open in the wire.

Check the power source of ESP control module

1.

Disconnect the connector from the ESP control module.

2.

Turn the ignition switch ON, measure the voltage between terminal 29 of the ESP control module harness side connector and body ground.

Specification : approximately B+

3.

Is voltage within specification?

▶ Check for poor ground.

▶ Check the harness or connector between the fuse (10A) in the engine compartment junction block and the ESP control module.Repair if necessary.

Check for poor ground

1.

Check for continuity between terminal 4 of the data link connector and ground point.

▶ Replace the ESP control module and recheck.

▶ Repair an open in the wire or poor ground

Detecting condition

Trouble Symptoms
Possible Cause
When current flows in the HECU the ABS warning lamp turns from ON
to OFF as the initial check. Therefore if the lamp does not light up, the
cause may be an open in the lamp power supply circuit, a blown bulb,
an open in the both circuits between the ABS warning lamp and the
HECU, and the faulty HECU.

Faulty ABS warning lamp bulb

Blown fuse is related to ABS in the engine compartment junction block

Faulty ABS warning lamp module

Faulty HECU


Inspection procedures

Problem verification

1.

Disconnect the connector from the ESP control module and turn the ignition switch ON.

2.

Does the ABS warning lamp light up?

▶ Inspectagain after replacing the ESP HECU.

▶ Check the power source for the ABS warning lamp.

Check the power source for the ABS warning lamp

1.

Disconnect the instrument cluster connector (M08) and turn the ignition switch ON.

2.

Measure the voltage between terminal (M08) 39 of the cluster harness side connector and body ground.

Specification : approximately B+

3.

Is voltage within specification?

▶ Check the CAN circuit resistance for ABS warning lamp.

▶ Check for blown fuse.

Check the CAN circuit resistance for ABS warning lamp

1.

Disconnect the instrument cluster connector (M08) and turn the ignition switch OFF.

2.

Measure the resistance between terminal (M08) 32 and 33 of the cluster harness side connector.

Specification : 60Ω

3.

Is resistance within specification?

▶ Repair ABS warning lamp bulb or instrument cluster assembly.

▶ Check the CAN circuit wiring for ABS warning lamp.

Check the CAN circuit wiring for ABS warning lamp

1.

Disconnect the instrument cluster connector (M08) and ESP HECU connector, and then turn the ignition switch OFF.

2.

Check for continuity between terminal (M08) 32 of the cluster harness side connector and terminal 26 of ESP HECU harness side.

Check for continuity between terminal (M08) 33 of the cluster harness side connector and terminal 14 of ESP HECU harness side.

Specification : Below 1Ω

3.

Is resistance within specification?

▶ Repair short of wiring between terminal 26, 14 of ESP HECU harness connector and ABS warning lamp module.

▶ Repair open of wiring between terminal 26, 14 of ESP HECU harness connector and ABS warning lamp module.

Detecting condition

Trouble Symptoms
Possible Cause
If the HECU detects trouble, it lights the ABS warning lamp while at the
same time prohibiting ABS control. At this time, the HECU records a
DTC in memory. Even though the normal code is output, the ABS
warning lamp remains ON, then the cause may be probably an open
or short in the ABS warning lamp circuit.

An open in the wire

Faulty instrument cluster assembly

Faulty ABS warning lamp module

Faulty HECU


Inspection procedures

Check DTC Output

1.

Connect the KDS to the 16P data link connector located behind the driver's side kick panel.

2.

Check the DTC output using KDS.

3.

Is DTC output?

▶ Perform the DTC troubleshooting procedure (Refer to DTC troubleshooting).

▶ Check the CAN circuit resistance for ABS warning lamp.

Check the CAN circuit resistance for ABS warning lamp

1.

Disconnect the instrument cluster connector (M08) and turn the ignition switch OFF.

2.

Measure the resistance between terminal (M08) 32 and 33 of the cluster harness side connector.

Specification : 60Ω

3.

Is resistance within specification?

▶ Repair ABS warning lamp bulb or instrument cluster assembly.

▶ Check the CAN circuit wiring for ABS warning lamp.

Check the CAN circuit wiring for ABS warning lamp

1.

Disconnect the instrument cluster connector (M08) and ESP HECU connector, and then turn the ignition switch OFF.

2.

Check for continuity between terminal (M08) 32 of the cluster harness side connector and terminal 26 of ESP HECU harness side.

Check for continuity between terminal (M08) 33 of the cluster harness side connector and terminal 14 of ESP HECU harness side.

Specification : Below 1Ω

3.

Is resistance within specification?

▶ Repair short of wiring between terminal 26, 14 of ESP HECU harness connector and ABS warning lamp module.

▶ Repair open of wiring between terminal 26, 14 of ESP HECU harness connector and ABS warning lamp module.

Electric Parking Brake (EPB)
Description and operation Description Description of EPB The EPB is an electronic parking brake. The EPB is different from existing parking systems which operated with the brake peda ...

Emergency Signal System
Description and operation Description Introduction of quick brake warning system (ESS) In case of quick brake by driver, the brake lamp or turn signal is blinked to warn against the ...

Other information:

Kia Stinger CK 2018-2020 Owners Manual: Care of seat belts


Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse. WARNING - Pinched seat belt Make sure that the webbing and/or buckle does not get caught or pinched in ...

Kia Stinger CK 2018-2020 Owners Manual: Seat belt precautions


Infant or small child Most countries have child restraint laws.You should be aware of the specific requirements in your country. Child and/or infant seats must be properly placed and installed in the rear seat. For more information about the use of these restraints, refer to “Child restrain ...

Copyright © www.kstinger.com 2015-2020
