Components and components location
Component Location

1. Fender assembly


Repair procedures
Replacement


Be careful not to damage the fender and body.



When removing the clips, use a clip remover.

1.

Remove the front bumper.

(Refer to Front Bumper - "Front Bumper Assembly")

2.

Remove the headlamps.

(Refer to Body Electrical System - "Headlamps")

3.

Remove the side sill molding.

(Refer to Body Side Molding - "Side Sill Molding")

4.

Remove the front wheel guard.

(Refer to Body Side Molding - "Front Wheel Guard")

5.

Remove the fender garnish.

(Refer to Body Side Molding - "Fender Garnish")

6.

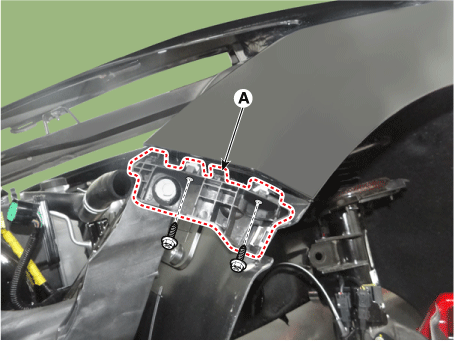

Remove the front bumper side mounting bracket (A) after loosening the screw and bolt.

7.

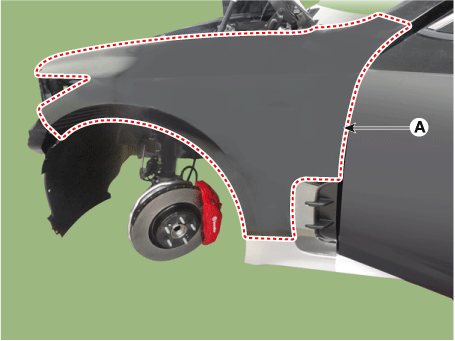

Remove the fender assembly (A) after loosening the nut and bolts.

8.

Install in the reverse order of removal.



Replace any damaged clips.
