Contents:
| Components |

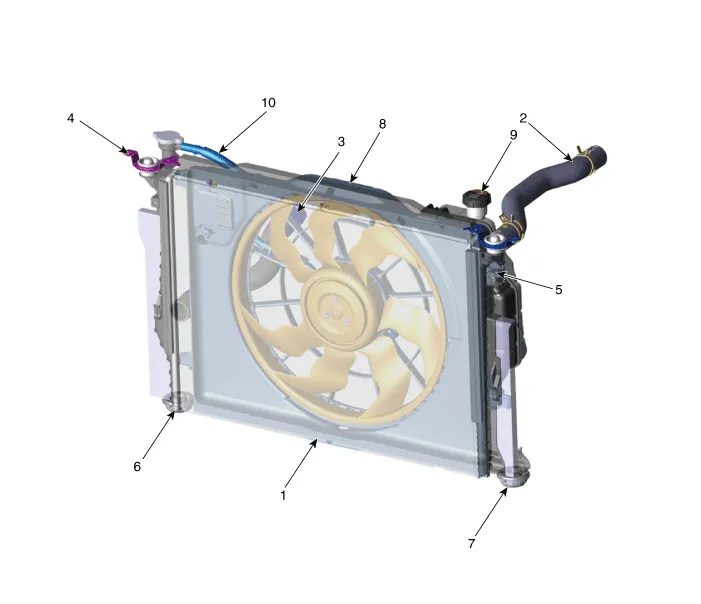

| 1. Radiator 2. Radiator upper hose 3. Radiator lower hose 4. Radiator upper mounting bracket (RH) 5. Radiator upper mounting bracket (LH) |
6. Radiator lower mounting insulator
(RH) 7. Radiator lower mounting insulator (LH) 8. Cooling fan assembly 9. Reservoir tank 10. Reservoir hose |
| Engine Overheat Troubleshooting |
|
Inspection |
Remedy |
||||||||
|
Visual inspection |
Inspect for shortage of coolant in reservoir tank . |
Reinspect after replenishing coolant. |
|||||||
Inspect for coolant pollution after removing radiator cap.
|
Reinspect after replacing coolant. |
||||||||
|
Inspect for leakage and loose coolant hoses (radiator hose, heater hose,
oil cooler hose, etc.). |
Reinspect for leakage after reinstalling hoses and clamps. |
||||||||
|
Inspect for leakage on water inlet fitting mounting part. |
Reinspect for leakage after replacing O-ring. |
||||||||
|
Reinspect for leakage after tightening to the specified torque. |
|||||||||
|
Inspect drive belt (for normal operation of water pump). |
Adjust drive belt tension or replace. |
||||||||
|
Inspect for leakage on water pump gasket mounting part. |
Reinspect for leakage after replacing gasket. |
||||||||
|
Reinspect for leakage after tightening to the specified torque. |
|||||||||
|
Inspect for loose coolant temperature sensor, cooling fan connector and
pin. |
Reinstall loose connector. |
||||||||
|
Replace relevant part if connector pin is damaged. |
|||||||||
|
Inspect operation status of cooling fan. - Check operation status by switching ON/OFF the heater control A/C.
|
Check mounting status of ground cable. |
||||||||
|
Diagnostic device |
Inspect self-diagnostic code using KDS/GDS. |
Check coolant temperature sensor, wiring, connector, etc. |
|||||||
|
Unit inspection |
Inspect water pump impeller. |
Replace water pump. |
|||||||
|
Inspect for foreign materials and status of thermostat valve. |
Inspect unit after removing foreign materials. |
||||||||
|
Inspect for stuck thermostat valve. - Immerse thermostat in water heated to over 95°C (203°F), then heat for at least 3 minutes to check valve lift.
|
Check valve lift. - Replace thermostat if valve lift is below specification or valve is stuck. |
||||||||
| Removal |
| 1. |
Disconnect the reservoir hose (A).
|
| 2. |
Remove the LH front strut bar (A).
|
| 3. |
Remove the reservoir tank (A).
|
| 4. |
Install in the reverse order of removal. |
Kia Stinger (CK) 2018-2023 Service Manual: Restraint
General information General The supplemental restraint system (SRS) is designed to supplement the seat belt to help reduce the risk or severity of injury to the driver and passenger by activating and deploying the driver, passenger, side airbag and seat belt pretensioner in certain frontal or side collisions. The SRS (Airbag) consists of: a driver side airbag module with the folded cushion and an inflator unit located at the center of the steering wheel, a passenger side airbag module with the folded cushion assembled with inflator unit located in the passenger side crash pad, side airbag modules with the folded cushion and an inflator unit located in the front seat, and curtain airbag modules with folded cushions and inflator units located inside the headliner.Kia Stinger (CK) 2018-2023 Service Manual: Water Temperature Control Assembly
Components and components location Components 1. Water temperature control assembly 2. Engine coolant temperature sensor 3. Water outlet hose 4. Heater hose 5. Intake manifold water hose 6. Oil cooler hose Repair procedures Removal and Installation 1.
