Kia Stinger: Front Seat Belt
Components and components location

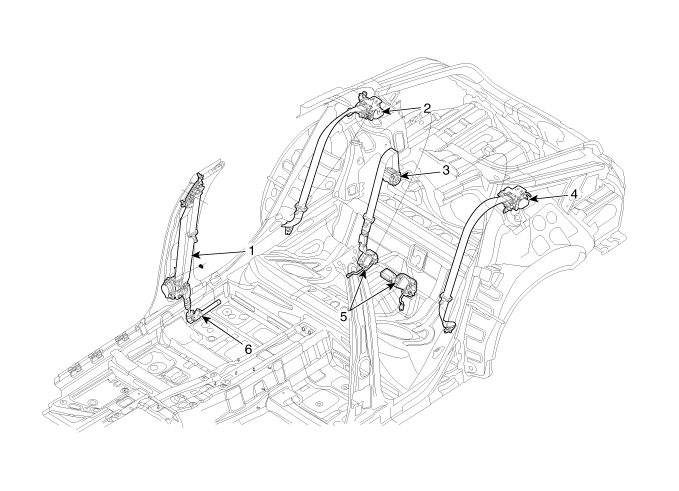

| Components |
| 1. Front seat belt retractor
2. Rear seat belt retractor [RH] 3. Rear center seat belt retractor |
4. Rear seat belt retractor[LH]
5.Rear seat belt buckle 6. Emergency fastening device (EFD) |
Front Seat Belt Retractor
Components and components location

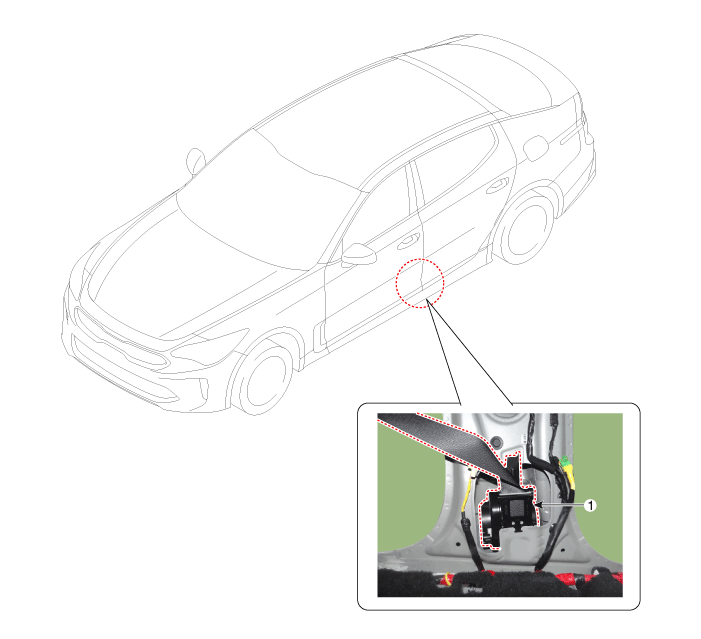

| Component Location |
| 1. Front seat belt retractor
|
Repair procedures
| Replacement |
When installing the belt, be careful not to damage the retractor. |
| 1. |
Remove the center pillar trim. (Refer to Interior Trim - "Center Pillar Trim") |
| 2. |

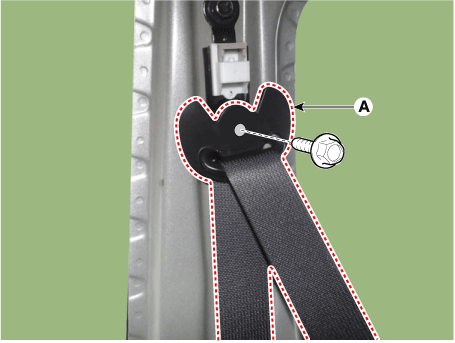

Separate the front seat belt upper anchor (A) after loosening the mounting bolt.
|
| 3. |

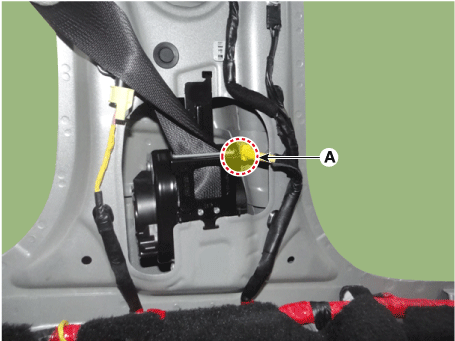

Disconnect the front seat belt retractor connector (A).
|
| 4. |

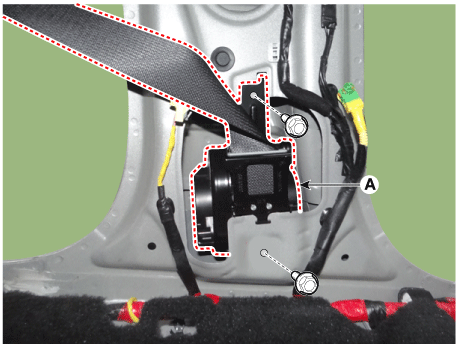

Remove the front seat belt retrator (A) after loosening the mounting bolt.
|
| 5. |
Install in the reverse order of removal.
|
Height Adjuster
Components and components location
| Component Location |
| 1. Height adjuster |
Repair procedures
| Replacement |
| 1. |
Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Retractor") |
| 2. |

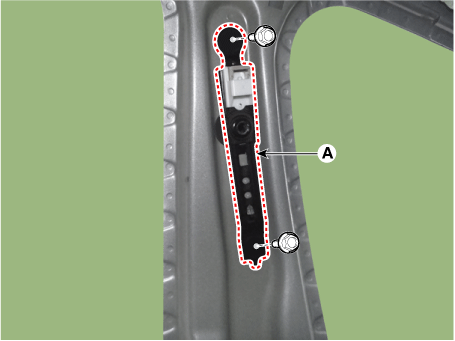

After loosening the mounting bolts, remove the height adjuster (A).
|
| 3. |
Install in the reverse order of removal.
|
Front Seat Belt Buckle
Components and components location

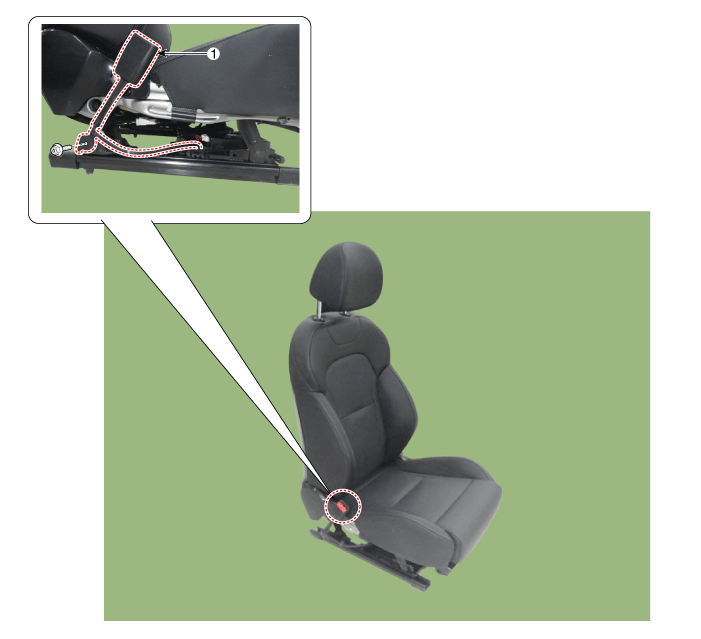

| Component Location |
| 1. Front seat belt buckle |
Repair procedures
| Replacement |
| 1. |
Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly") |
| 2. |

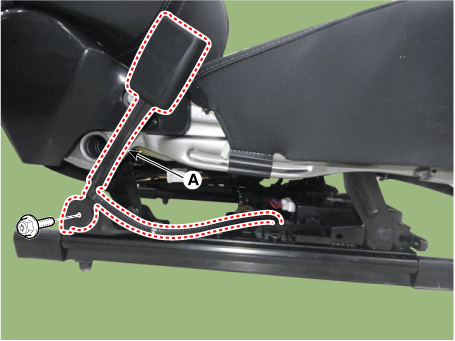

Remove the front seat belt buckle (A) after loosening the mounting bolt.
|
| 3. |
Install in the reverse order of removal.
|
