Kia Stinger: Body Electrical System / Headlamp Leveling System

Kia Stinger CK 2018-2020 Service Manual / Body Electrical System / Headlamp Leveling System

Components and components location

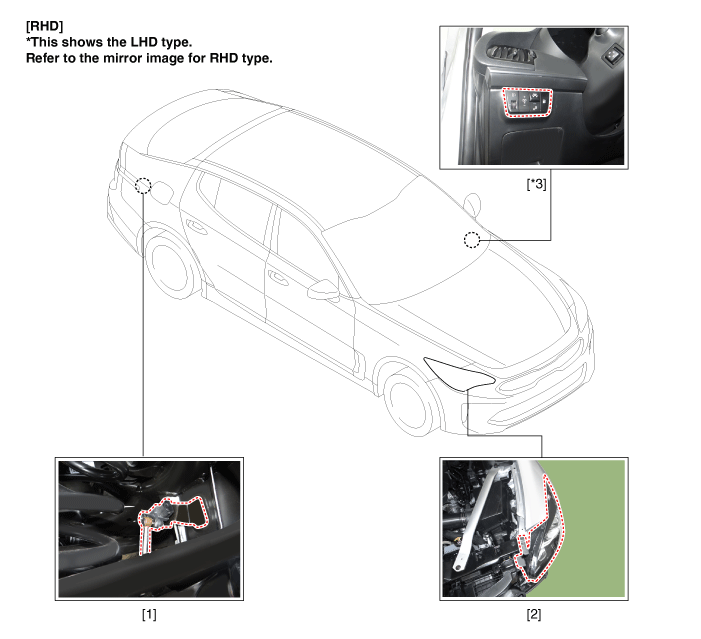

Component Location

1. Headlamp leveling unit (Auto)
2. Headlamp leveling actuator (Built in leveling actuator)
3. Headlamp leveling switch (Manual)

Relay Box (Passenger Compartment)
Components and components location Component Location Integrated central control unit (ICU) Circuit (ICU Junction Block) Rear Sub Junction Block ...

Headlamp Leveling Actuator
Components and components location Circuit Diagram Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. ...
