■ Head lamp - Type A

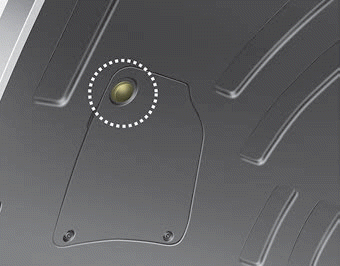

1. Remove the service cover clip on the wheel housing.

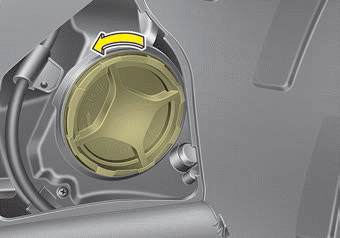

2. Remove the headlamp bulb cover by turning it counterclockwise.

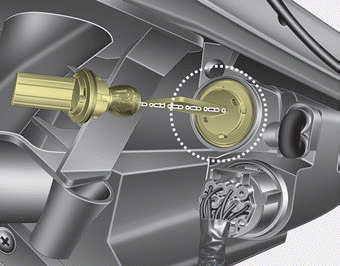

3. Disconnect the headlamp bulb socket-connector.

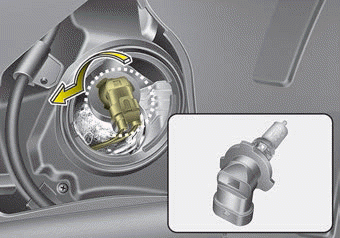

4. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.

5. Install a new bulb-socket assembly in the headlamp assembly by aligning the tabs on the bulb-socket with the slots in the headlamp assembly. Push the bulb-socket into the headlamp assembly and turn the bulb-socket clockwise.

6. Connect the headlamp bulb socket- connector.

7. Install the headlamp bulb cover by turning it clockwise.

8. Install the clip on the service cover.

❈ If it is difficult to replace light bulbs, have the vehicle checked by an authorized Kia dealer.

Headlamp bulb

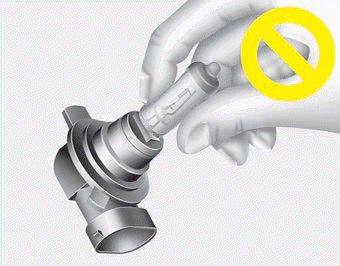

WARNING - Halogen bulbs



Front turn signal lamp bulb replacement (Headlamp Type A)

1. Open the hood.

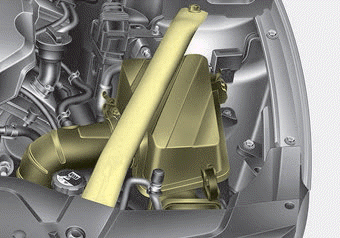

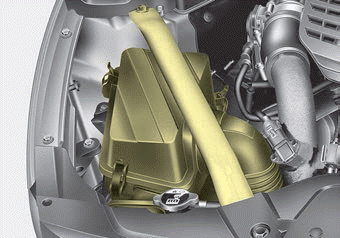

2. Remove the strut bar and the air cleaner assembly.

3. Remove the bulb-socket from the headlamp assembly by turning the bulb-socket counterclockwise until the tabs on the bulb-socket align with the slots on the headlamp assembly.

4. Remove the bulb from the bulbsocket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the bulb-socket. Pull the bulb out of the bulb-socket.

5. Insert a new bulb by inserting it into the bulb-socket and rotating it until it locks into place.

6. Install the socket in the headlamp assembly by aligning the tabs on the bulb-socket with the slots in the assembly. Push the bulb-socket into the headlamp assembly and turn the socket clockwise.

7. Install the strut bar and the air cleaner assembly.

❈ If it is difficult to replace light bulbs, have the vehicle checked by an authorized Kia dealer.

Position lamp + DRL (LED type) bulb replacement (Headlamp Type A)
■ Head lamp - Type A If the position lamp + DRL (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer. The LED lamps cannot be replaced as a single component because ...

Stop and tail lamp (LED type) bulb replacement
If the stop and tail lamp (LED) (1, 2) does not operate, have the vehicle checked by an authorized Kia dealer. The LED lamps cannot be replaced as a single component because they are part of an ...
