Kia Stinger (CK) 2018-2023 Owner's Manual / Safety features of your vehicle / Seat

Contents:

Driver`s seat

(1) Driver position memory system*
(2) Forward and backward
(3) Seatback angle
(4) Seat cushion height
(5) Lumbar support
(6) Cushion extension
(7) Seat back bolster control
(8) Headrest

Front Passenger`s seat

(9) Forward and backward
(10) Seatback angle
(11) Seat cushion height
(12) Lumbar support
(13) Headrest

Rear seat

(14) Armrest
(15) Headrest
(16) Seatback folding lever

WARNING - Loose objects

Do not place anything in the driver's foot well or under the front seats. Loose objects in the driver's foot area could interfere with the operation of the foot pedals.

WARNING - Driver responsibility for passengers

The driver must advise the passengers to keep the seatback in an upright position whenever the vehicle is in motion. If a seat is reclined during an accident, the restraint system's ability to restrain will be greatly reduced.

WARNING - Seat cushion

Occupants should never sit on aftermarket seat cushions or sitting cushions. The passenger's hips may slide under the lap portion of the seat belt during an accident or a sudden stop.

WARNING - Driver’s seat

Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control of your vehicle.
Do not allow anything to interfere with the normal position of the seatback. Storing items against the seatback could result in serious or fatal injury in a sudden stop or collision.

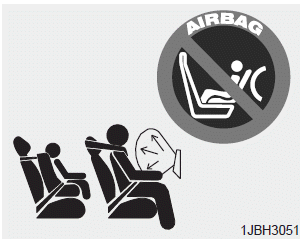

Sit as far back as possible from the steering wheel while still maintaining comfortable control of the your vehicle. A distance of at least 25 cm (10 in.) from your chest to the steering wheel is recommended. Failure to do so can result in air bag inflation injuries to the driver.

WARNING - Rear seatbacks

Always lock the rear seatback before driving. Failure to do so could result in passengers or objects being thrown forward injuring vehicle occupants.

WARNING - Luggage and Cargo

Do not stack pile or stack luggage or cargo higher than the seatback in the cargo area. In an accident the cargo could strike and injury a passenger. If objects are large, heavy or must be piled, they must be secured in the cargo area.

WARNING - Cargo Area

Do not allow passengers to ride in the cargo area under any circumstance. The cargo area is solely for the purpose of transporting luggage or cargo.

WARNING - Seat adjustment

Do not adjust the seat while wearing seat belts. Moving the seat forward will cause strong pressure on the abdomen.
Do not place your hand near the seat bottom or seat track while adjusting the seat. Your hand could get caught in the seat mechanism.

WARNING - Small Objects

Use extreme caution when picking up small objects trapped under the seats or between the seat and the center console. Your hands might be cut or injured by the sharp edges of the seats mechanism.

Feature of Seat Leather

Leather is made from the outer skin of an animal, which goes through a special process to be available for use. Since it is a natural substance, each part differs in thickness or density. Wrinkles may appear as a natural result of stretching and shrinking depending on the temperature and humidity.
The seat is made of stretchable fabric to improve comfort.
The parts contacting the body are curved and the side supporting area is high which provides driving comfort and stability.
Wrinkles may appear naturally from usage. It is not a fault of the product.

CAUTION

Belts with metallic accessories, zippers or keys inside your back pants pocket may damage the seat fabric.
Make sure not to wet the seat. It may change the nature of natural leather.
Jeans or clothes which contain bleach may contaminate the surface of the seat covering fabric and cause damage or discoloration.

✽ NOTICE

Wrinkles or abrasions which appear naturally from usage are not covered by warranty.

Front seat adjustment - power ➤

Driver position memory system ➤

Headrest ➤

Seatback pocket

The seatback pocket is provided on the back of the front passenger’s and driver’s seatbacks.

WARNING - Seatback pockets

Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure vehicle occupants.

Rear seat adjustment ➤
