Kia Stinger: Automatic Transmission Control System / Inhibitor Switch

Kia Stinger CK 2018-2020 Service Manual / Automatic Transmission System / Automatic Transmission Control System / Inhibitor Switch

Specifications
Specifications

Item
Specification
Output type
PWM
Power supply (V)
5

Components and components location
Components Location

1. Inhibitor switch
2. Manual control lever

Schematic diagrams

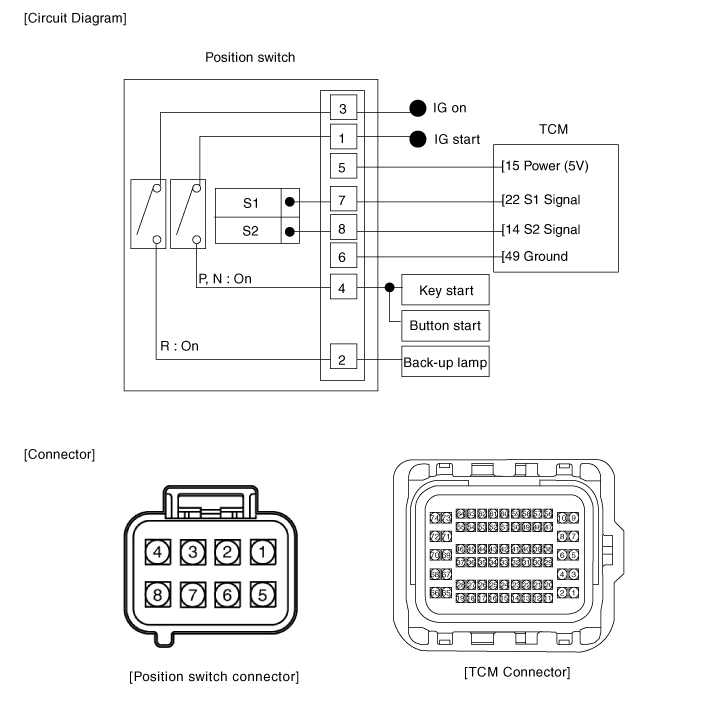

Circuit Diagram

Repair procedures
Inspection


Inspect the connector thoroughly for looseness, poor connection, bending, corrosion, contamination, deformation, or damage.

1.

Disconnect the parking switch connector.

2.

Turn Ignition "ON", & engine "OFF".

3.

Measure the output signal in each range (P, R, N, D).

Signal code table

Signal
P
R
N
D
S1
10 - 26.4%
31.4 - 55.0%
57.3 - 73.7%
76.6 - 90%
S2
90 - 73.6%
68.6 - 45.0%
42.7 - 26.3%
23.4 - 10%

Connection table

Pin
Connection information
1
Power (Ps,Ns)
2
Back-up lamp
3
Power (Back-up lamp)
4
Ps ,Ns
5
Power (5V)
6
Ground (5V)
7
S1
8
S2

Removal
1.

Shift the gear to "N".

2.

Disconnect the negative (-) battery terminal.

3.

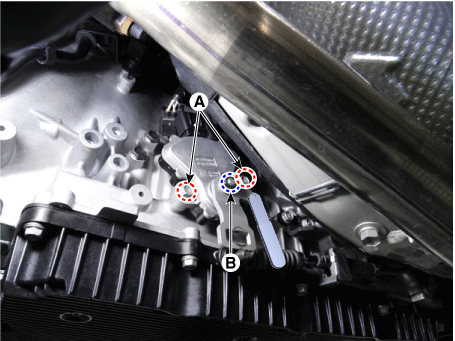

Inhibitor switch connector (A) and loosen the nut (B).

4.

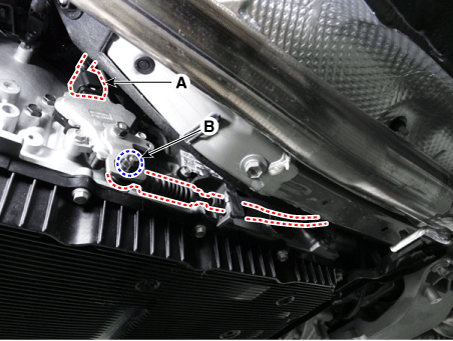

Remove the manual control lever (A) and then remove the inhibitor switch (B).

Installation
1.

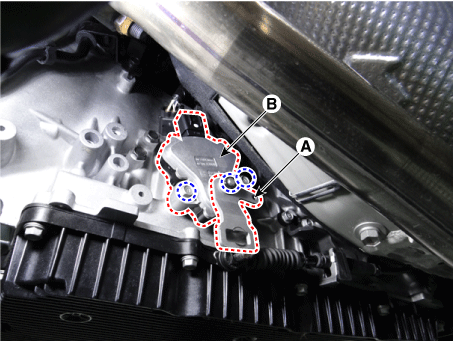

Install the inhibitor switch (B) and manual control lever (A).



Lightly tighten the bolts and nut so that necessary adjustments can be made.

2.

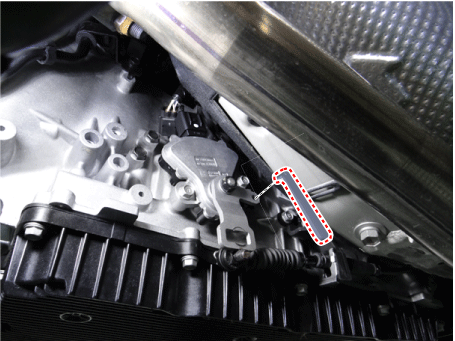

Install the SST (09480-D2100).

3.

Tighten the inhibitor switch mounting bolts (A) and manual control lever mounting nut (B).

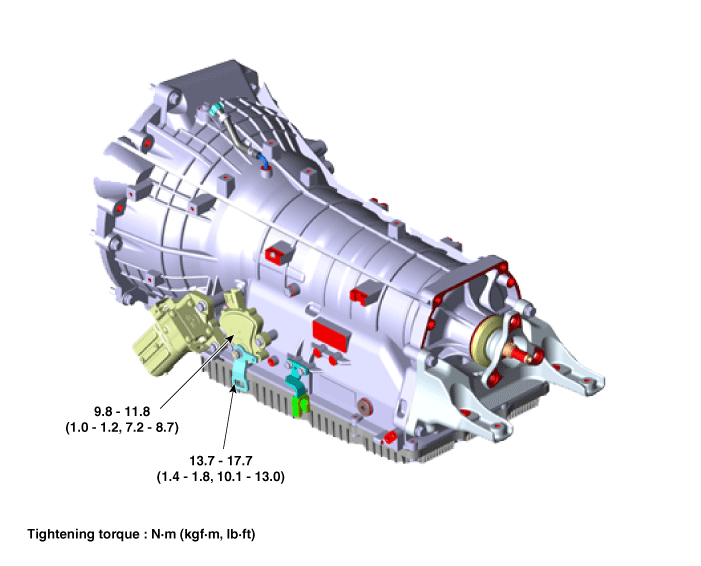

Tightening torque :

(A) 9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft)

(B) 13.7 - 17.7 N·m (1.4 - 1.8 kgf·m, 10.1 - 13.0 lb·ft)

4.

Remove the SST (09480-D2100).

5.

Connect the inhibitor switch connector (A) and tighten shift cable mounting nut (B).

E-Shifter
Components and components location Components 1. E-Shifter 2. Parking release actuator 3. Parking release cable 4. Parking release lever Schemat ...

Shift Lever
Components and components location Components 1. Manual control lever 2. Shift cable 3. Shift lever assembly 4. Knob Repair procedures ...
