Kia Stinger: Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Switch

Kia Stinger CK 2018-2020 Service Manual / Body Electrical System / Integrated Memory Seat (IMS) System / Integrated Memory Seat (IMS) Switch

Components and components location

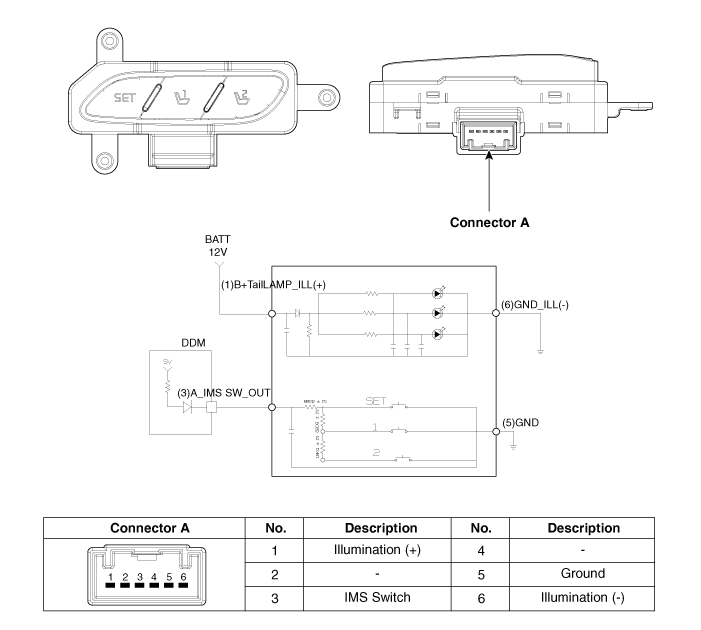

Components

Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the driver front door trim.

(Refer to Body - "Front Door Trim")

3.

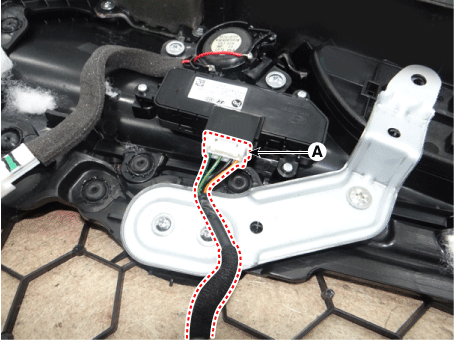

Disconnect the intergrated memory seat switch connector (A).

4.

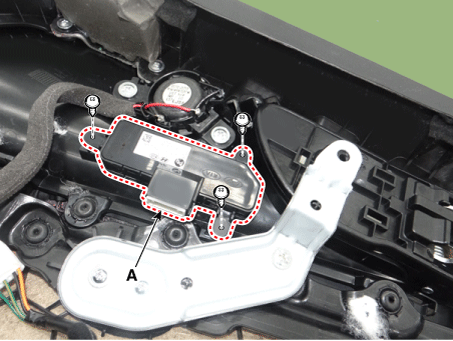

Remove the intergrated memory seat switch (A) after loosening the mounting screws.

Installation
1.

Install the intergrated memory seat switch.

2.

Connect the inegrated memory seat switch connector.

3.

Install the driver front door trim.

4.

Connect the negative (-) battery terminal.

Inspection
1.

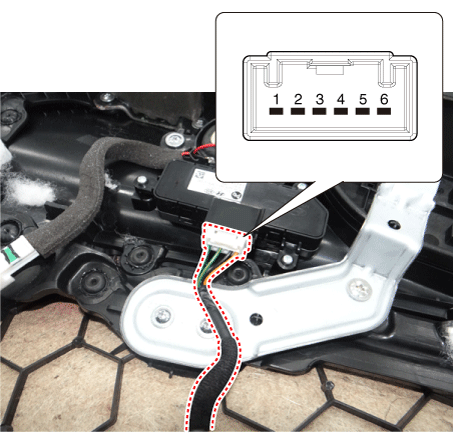

Remove the intergrated memory seat switch connector.

2.

When each switch is pressed, check the electricity flow between intergrated memory seat switch connector and grounding, and if the electricity does not match the specification, replace the switch.

Switch
Connector Terminal
Resistance
SET
3-5
680Ω
Memory 1
1.5 kΩ
Memory 2
3.3 kΩ
