Kia Stinger: Light bulbs / Light bulb position (Front)

Kia Stinger CK 2018-2021 Owners Manual / Maintenance / Light bulbs / Light bulb position (Front)

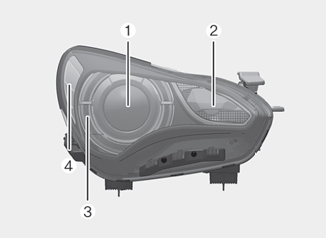

■ Head lamp - Type A

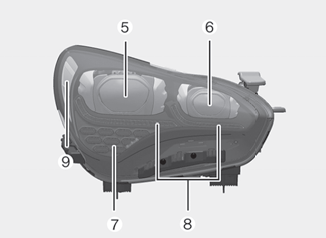

■ Head lamp - Type B

(1) Headlamp (Low/High) (bulb type)
(2) Front turn signal lamp (bulb type)
(3) Day time running lamp / Position lamp (LED type)
(4) Side marker (bulb type)
(5) Headlamp (Low/High) (LED type)
(6) Headlamp (Low/High assist) (LED type)
(7) Front turn signal lamp (LED type)
(8) Day time running lamp / Position lamp (LED type)
(9) Side marker (LED type)

Bulb replacement precaution
Please keep extra bulbs on hand with appropriate wattage ratings in case of emergencies. Refer to “Bulb Wattage” in chapter 8. When changing lamps, first turn off the engine at a safe place, fir ...

Light bulb position (Rear)
■ Rear combination lamp - Type A ■ Rear combination lamp - Type B ■ High mounted stop lamp ■ License plate lamp (1) Stop and tail lamp (LED type) (2) Stop lamp (LED type) (3) Bac ...
