The FCA system produces warning messages, warning alarms, and emergency braking based on the level of risk of a frontal collision, such as when a vehicle ahead suddenly brakes, or when the system detects that a collision with a pedestrian is imminent.

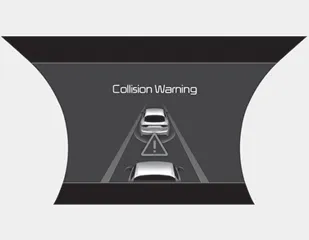

Collision Warning (1st warning)

The warning message appears on the LCD display with the warning alarms.
The FCA controls the brakes within certain limit to reduce the impact from the collision.

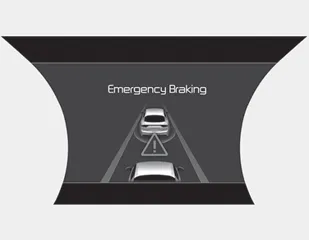

Emergency braking (2nd warning)

The warning message appears on the LCD display with the warning alarms.
The FCA controls the brakes within certain limit to reduce the impact from the collision. The FCA controls the maximum brakes just before the collision.
