Kia Stinger: Interior lights / Map lamp

Kia Stinger CK 2018-2021 Owners Manual / Features of your vehicle / Interior lights / Map lamp

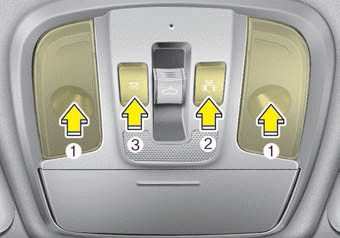

■ Type A

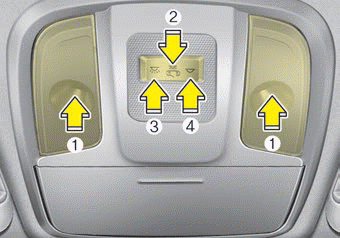

■ Type B

• Press the lens (1) to turn ON the map lamp.

To turn the map lamp OFF press the lens (1) again.

• (2) : DOOR mode

- The map lamp and room lamp come on when a door is opened. The lamps go out after approximately 30 seconds.
- The map lamp and room lamp come on for approximately 30 seconds when doors are unlocked with a transmitter or smart key as long as the doors are not opened.
- The map lamp and room lamp will stay on for approximately 20 minutes if a door is opened with the ignition switch in the ACC or LOCK/OFF position.
- The map lamp and room lamp will stay on continuously if the door is opened with the ignition switch in the ON position.
- The map lamp and room lamp will go out immediately if the ignition switch is changed to the ON position or all doors are locked.
- To turn off the DOOR mode, press the DOOR button (2) once again (not pressed).

✽ NOTICE

The DOOR mode and ROOM mode can not be selected at the same time.

Front Room Lamp:

• Type A

(3): Press this switch to turn the front and rear room lamps on and off.

• Type B

(3): Press this switch to turn the front and rear room lamps on.

(4): Press this switch to turn the front and rear room lamps off.

Automatic turn off function
The interior lights automatically turn off approximately 20 minutes after the ignition switch is turned off, if the lights are in the ON position. If your vehicle is equipped with the theft alarm s ...

Liftgate room lamp
The liftgate room lamp comes on when the liftgate is opened. The liftgate room lamp comes on as long as the liftgate lid opens. To prevent unnecessary battery drain, close the liftgate lid secure ...
