Kia Stinger: Parking distance warning - reverse / Operation of the parking distance warning-reverse
Operating condition
- This system will activate when the indicator on the parking distance warning-reverse
OFF button is not illuminated. If you desire to deactivate the parking distance
warningreverse, press the distance warning- reverse OFF button again. (The indicator
on the button will illuminate.) To turn the system on, press the button again.
(The indicator on the button will go off.)
- This system will activate when backing up with the ignition switch ON. If
the vehicle is moving at a speed over 5 km/h (3 mph), the system may not be
activated correctly.
- The sensing distance while the parking distance warning-reverse is in operation
is approximately 120 cm (47 in.).
- When more than two objects are sensed at the same time, the closest one
will be recognized first.

✽ NOTICE

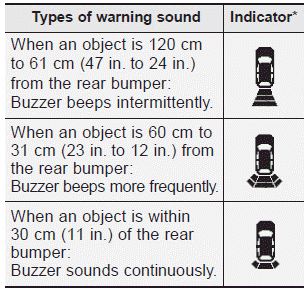

The indicator may differ from the illustration as objects or sensors status.
If the indicator blinks, the system should be checked by an authorized Kia
dealer.
The rear parking distance warning - reverse assists the driver during backward
movement of the vehicle by chiming if any object is sensed within a distance of
120 cm (47 in.) behind the vehicle. ...
The parking distance warningreverse may not operate properly when:
1. Moisture is frozen to the sensor. (It will operate normally when the moisture
has been cleared.)
2. The sensor is covered with ...
