Kia Stinger: Seat Electrical / Power Seat Motor

Kia Stinger CK 2018-2021 Service Manual / Body Electrical System / Seat Electrical / Power Seat Motor

Components and components location

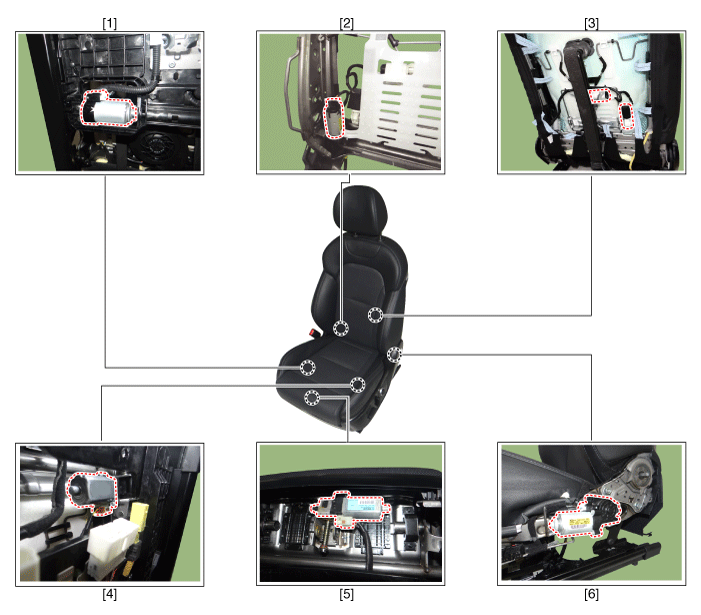

Component Location

1. Slide motor
2. Reclining motor
3. Lumber support motor

4. Front height motor
5. Cushion extension motor
6. Rear height motor

Description and operation

Description

Power seat motor is driven by a motor in the following.

1.	Slide motor

2.	Front height motor

3.	Rear height motor

4.	Reclining motor

Cushion extension motor

•	The power seat motor (IMS specification) mounted in this vehicle uses the hole sensor to calculate the maximum operation distance, so it does not require limit switch.

•	But the driver/passenger seats with non-IMS specification have the limit switch in the backrest motor.

Repair procedures

Inspection

Power Seat Motor

1.	Disconnect the negative (-) battery terminal.

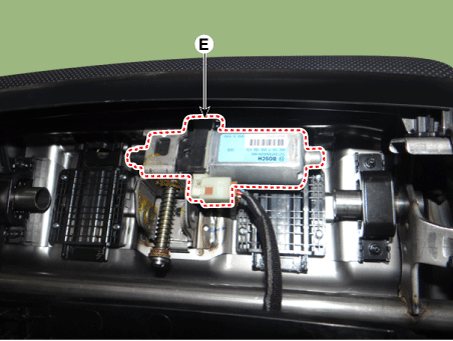

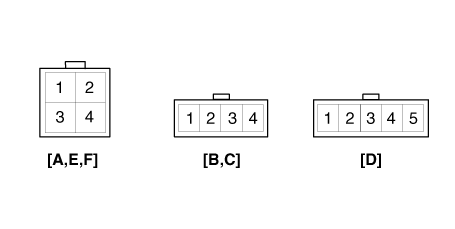

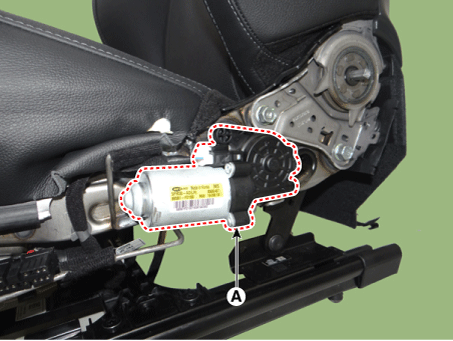

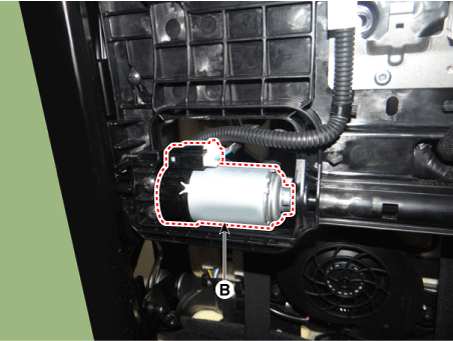

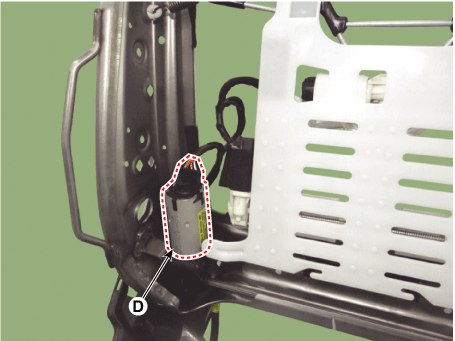

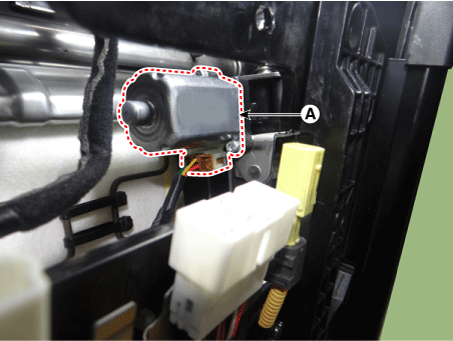

2.	Disconnect the connectors for each motor. A : Front height motor B : Slide motor C : Rear height motor D : Reclining motor E : Cushion extension motor F : Lumber support motor

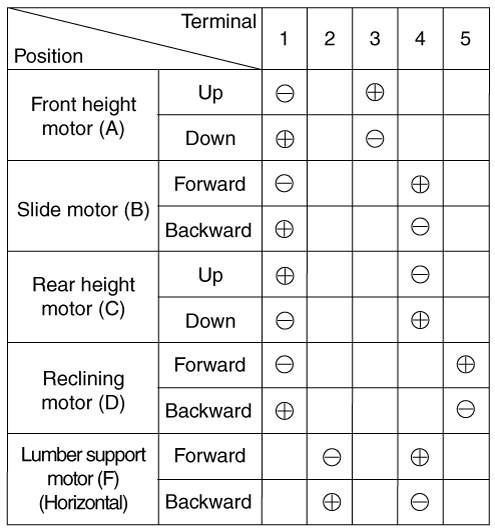

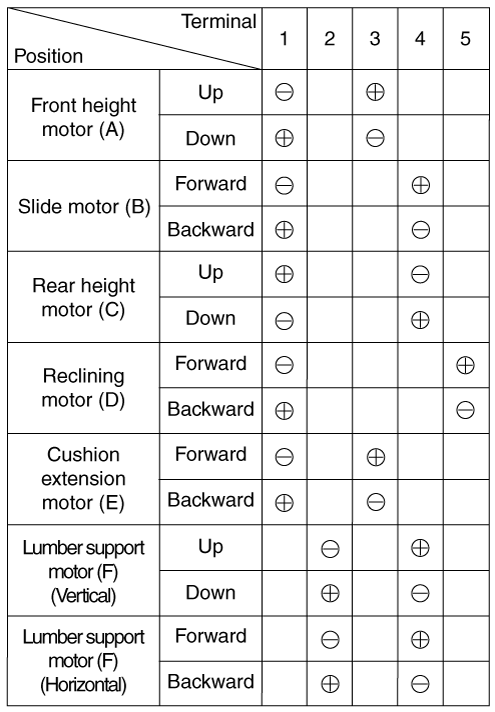

3.	When the battery power is supplied to the motor connector, check the motor for smooth operation.

4.	Reverse the connections and check that the motor turns in reverse.

5.	If the motor runs abnormally, replace it. [Driver] [Assist]

Remove

Front Seat

1.	Disconnect the negative (-) battery terminal.

2.	Remove the front seat assembly. (Refer to Body - "Front Seat Assembly")
