Kia Stinger: Rear Door / Rear Door Inside Handle

Kia Stinger CK 2018-2025 Service Manual / Front Seat Belt / Rear Door / Rear Door Inside Handle

Repair procedures

Replacement

1.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

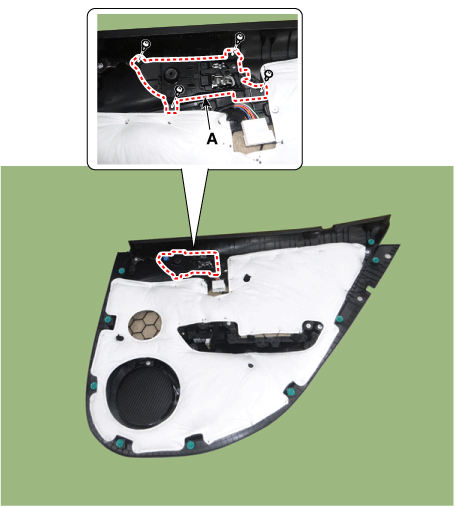

2.	Rremove the rear door inside handle (A) after loosening mounting screws.

Install in the reverse order of removal.

•	Make sure that the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
