Components and components location

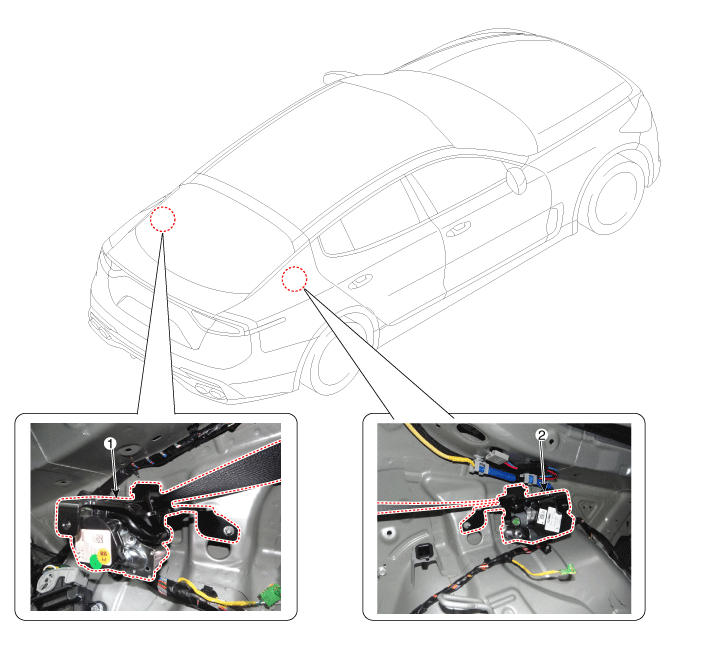

Component Location

1. Rear seat belt retractor [LH]
2. Rear seat belt retractor [RH]

Repair procedures
Replacement


When installing the belt, be careful not to damage the retractor.

1.

Remove the rear pillar trim.

(Refer to Interior Trim - "Rear Pillar Trim")

2.

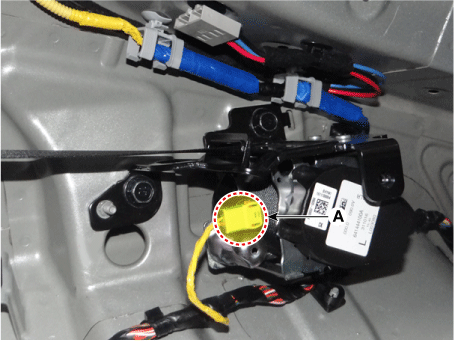

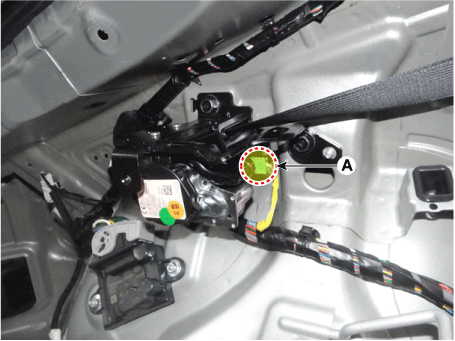

Disconnect the rear seat belt retractor connector (A).

[LH]

[RH]

3.

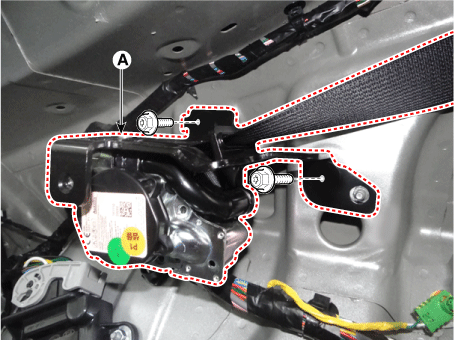

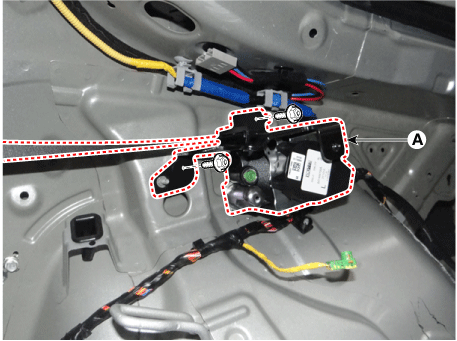

Remove the rear seat belt retractor (A) after loosening the mounting bolts.

Tightening torque :

39.2 - 53.9 N·m (4.0 - 5.5 Kgf·m, 28.8 - 39.8 lb·ft)

[LH]

[RH]

4.

Install in the reverse order of removal.



Replace any damaged clips.

Make sure that the connector is connected preperly.
