Kia Stinger: Front Seat Belt / Roof Trim

Kia Stinger CK 2018-2024 Service Manual / Front Seat Belt / Roof Trim

Components and components location

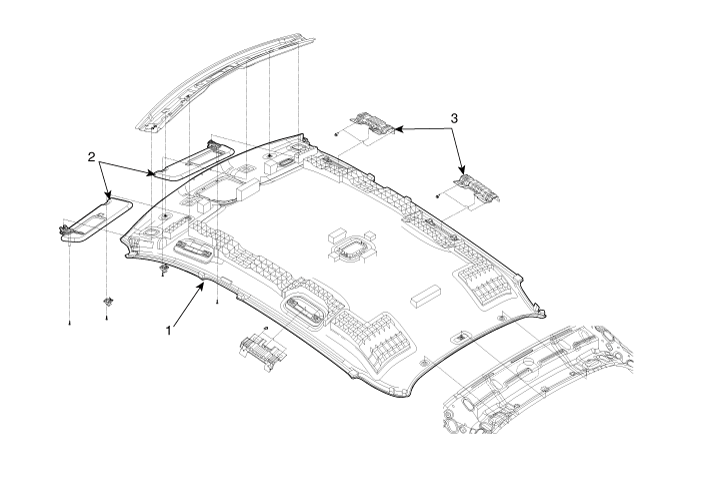

Components (1)

[General Type]

1. Roof trim
2. Sunvisor

3. Assist handle bracket

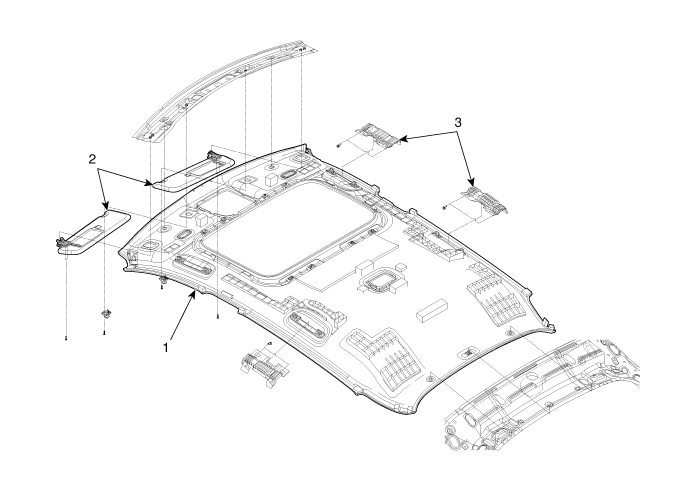

Components (2)

[Panorama Sunroof Type]

1. Roof trim
2. Sunvisor

3. Assist handle bracket
