Components and components location
Components

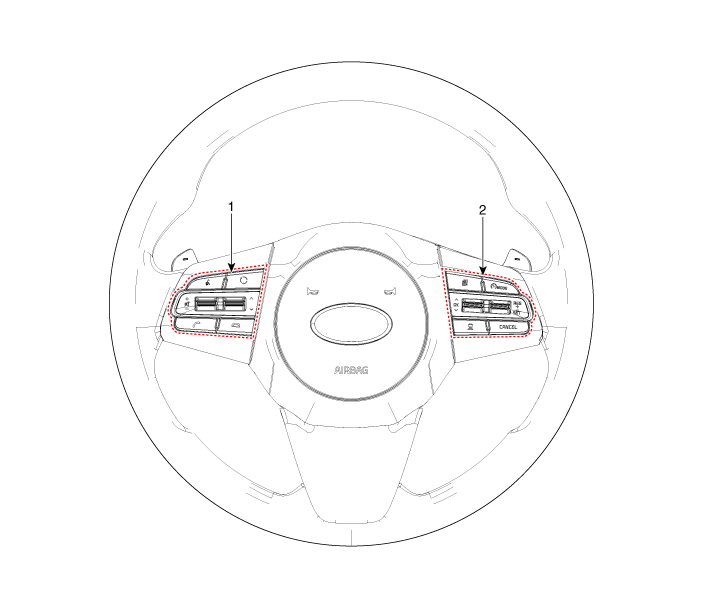

1. Left Remote Control Switch
(Audio + Bluetooth + Voice)
2. Right Remote Control Switch
(Trip Computer + ACC + SCC)

Schematic diagrams

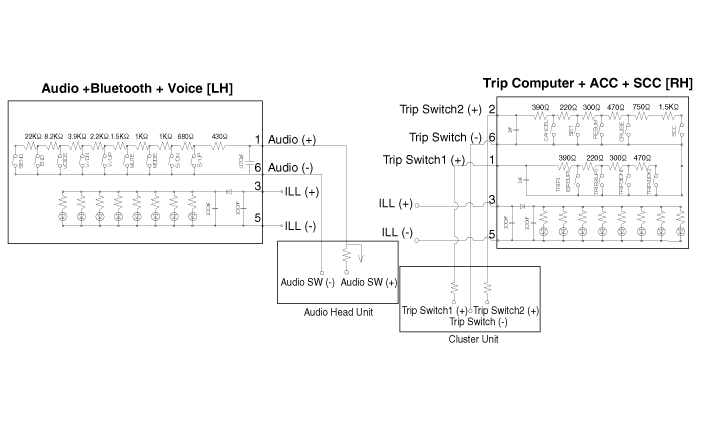

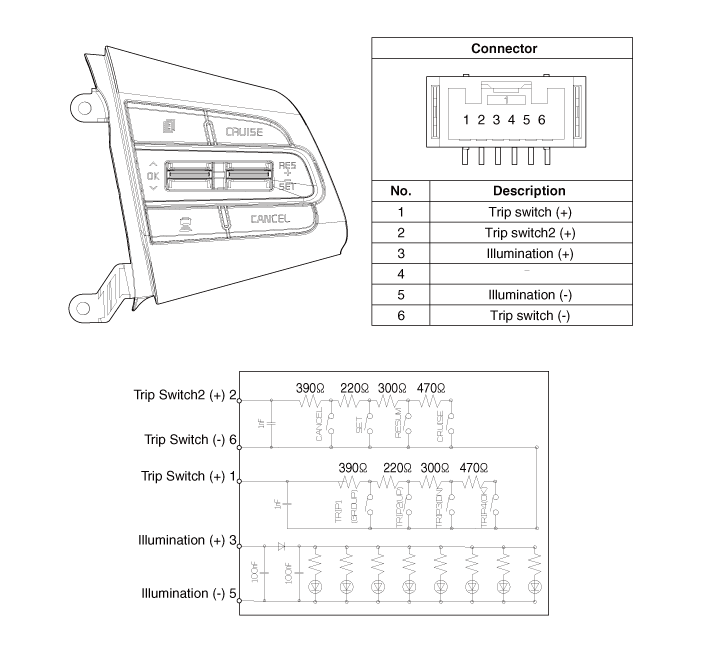

Circuit Diagram

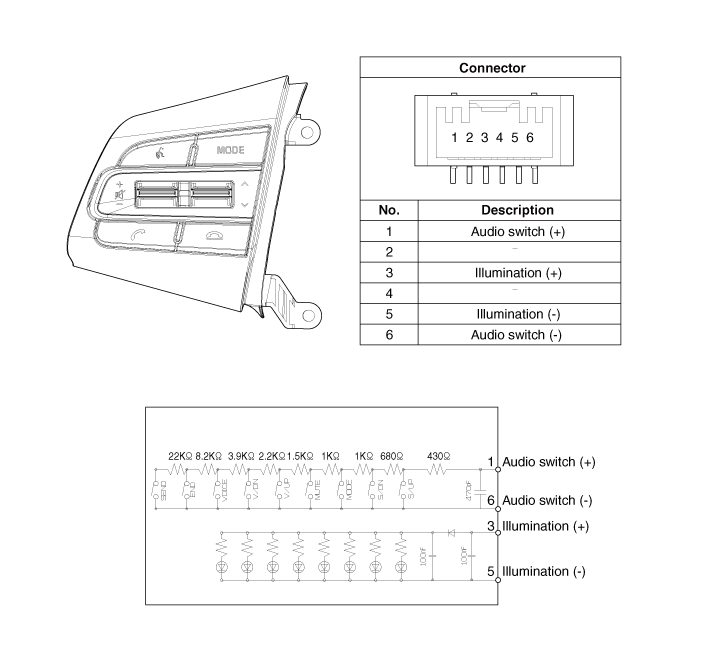

[Audio + Bluetooth + Voice]

[Trip + ACC]

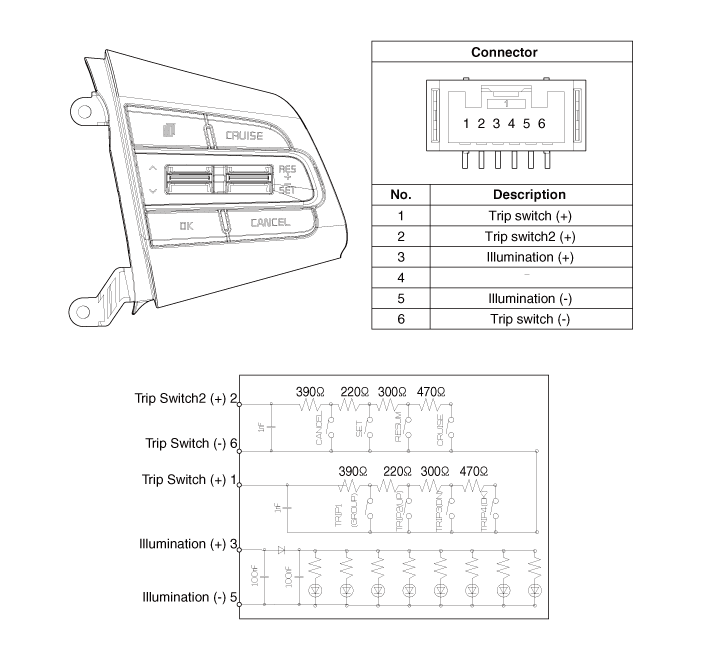

[Trip + ACC + SCC]

Repair procedures
Inspection
1.

Check for resistance between terminals in each switch position (RH).

[RH : Trip + ACC + SCC]

Switch
Connector
terminal
Resistance
(±3%)
Cancel
2-6
390 Ω
SET -
610 Ω
RES +
910 Ω
Cruise ON/OFF
1.38 kΩ
Cruise & Speed Limit ON/OFF
2.13 kΩ
SCC (Following distance control)
3.63 kΩ
Group
1-6
390 Ω
Trip Up
610 Ω
Trip Down
910 Ω
ENTER
1.38 kΩ

Removal
1.

Disconnect the negative (-) battery terminal.

2.

Remove the steering wheel assembly.

(Refer to Steering System - "Steering Wheel")

3.

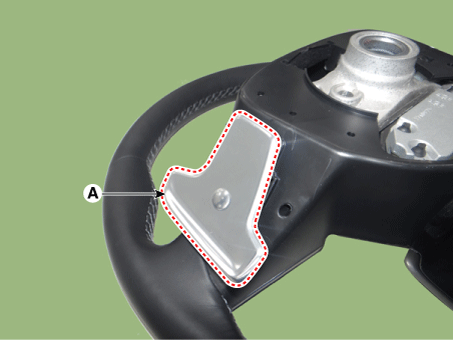

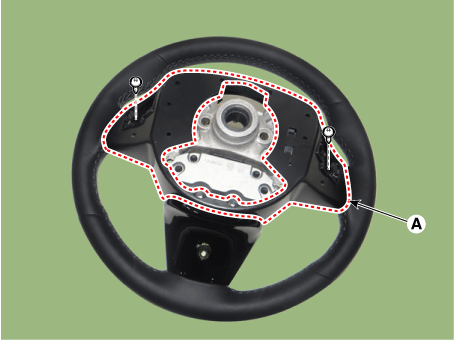

Remove the paddle shift switch (A) after loosening the mounting screws.

[LH]

[RH]

4.

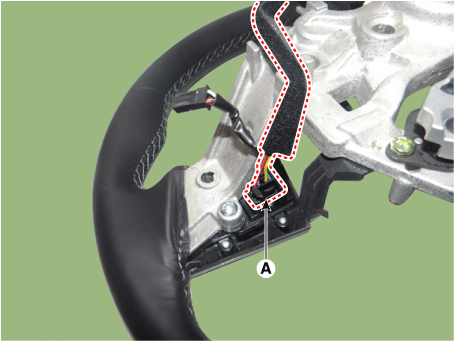

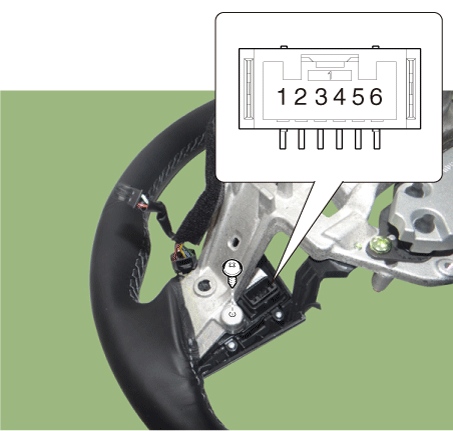

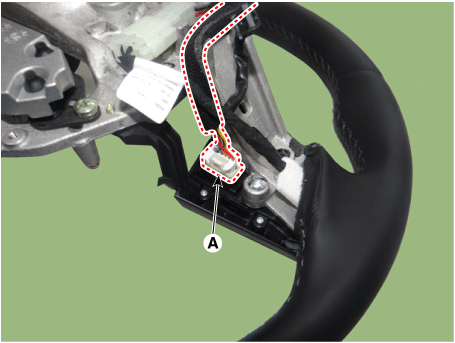

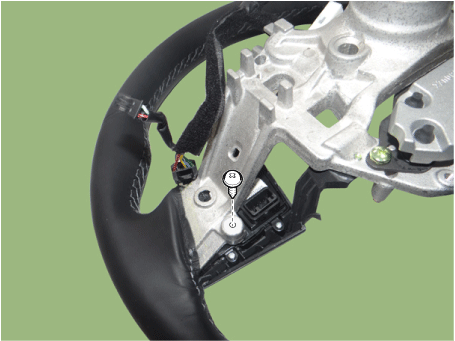

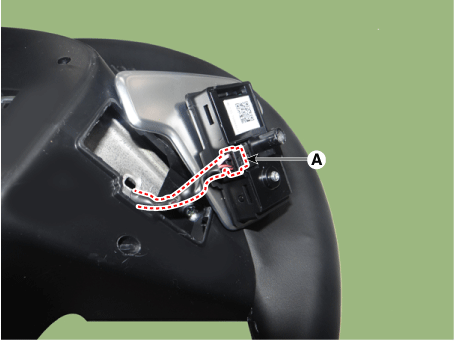

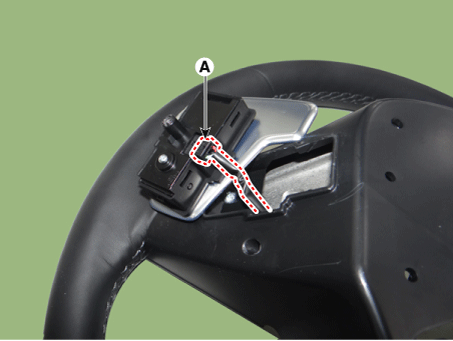

Disconnect the paddle shift switch connector (A).

[LH]

[RH]

5.

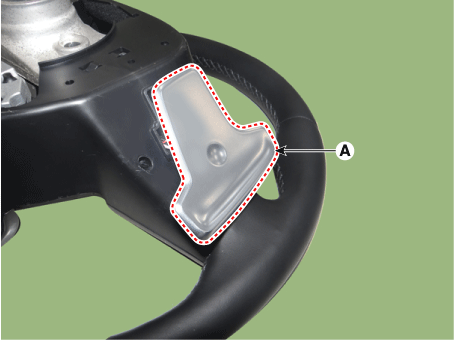

Remove the steering front cover (A) after loosening the mounting screws.

6.

Remove the steering rear cover (A) after loosening the mounting screws.

7.

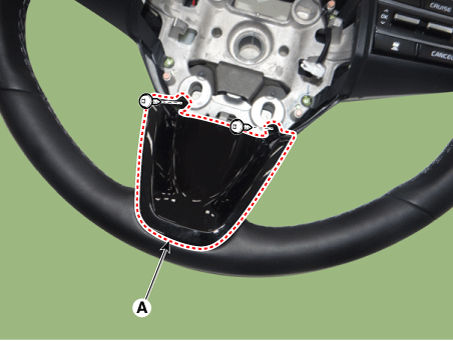

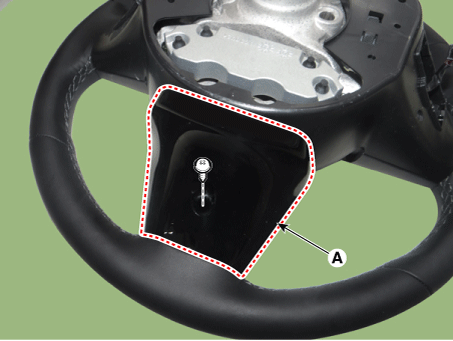

Remove the steering back cover (A) after loosening the mounting screws.

8.

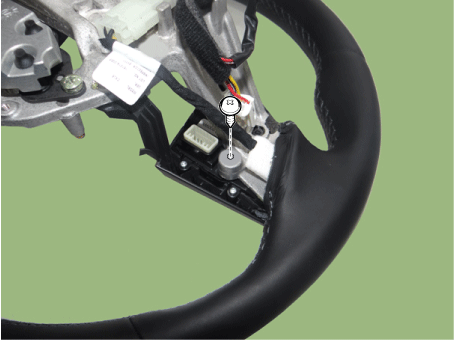

Disconnect the steering wheel remote control connector (A).

[LH]

[RH]

9.

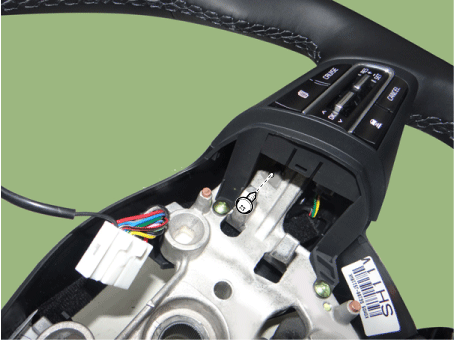

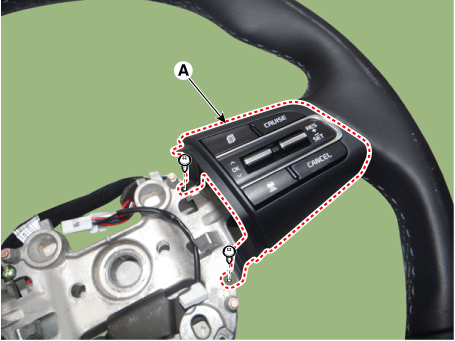

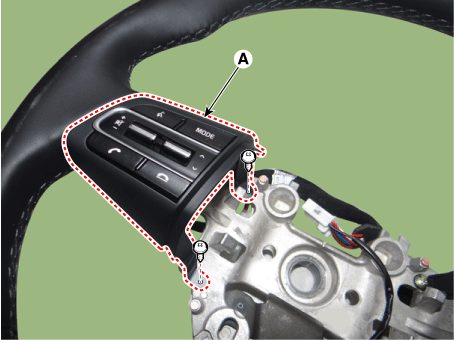

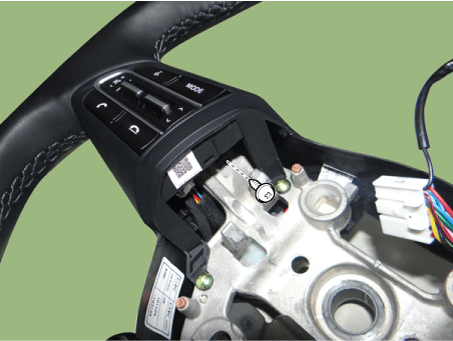

Remove the steering wheel remote control (A) after loosening the mounting screws.

[LH]

[RH]

Installation
1.

Install the steering wheel remote control.

2.

Connect the steering remote control connector.

3.

Install the steering back cover.

4.

Install the steering rear cover.

5.

Install the steering front cover.

6.

Connect the paddle shift switch connector.

7.

Install the paddle shift switch.

8.

Install the steering wheel assembly.

9.

Connect the negative (-) battery terminal.

Smart Cruise Control (Stop & Go) (SCC) Unit-Radar
Specifications Specification Item Specification Power supply(V) 12 Operation voltage (V) 9 - 16 ...

Smart Cruise Control (Stop & Go) (SCC) ECU
Description and operation Description The smart cruise control unit is installed on the front right-hand side of the chassis. A radar sensor is embedded in the front section of the uni ...
