Kia Stinger: Engine Mechanical System / Timing System

Kia Stinger CK 2018-2021 Service Manual / Engine Mechanical System / Timing System

Components and components location

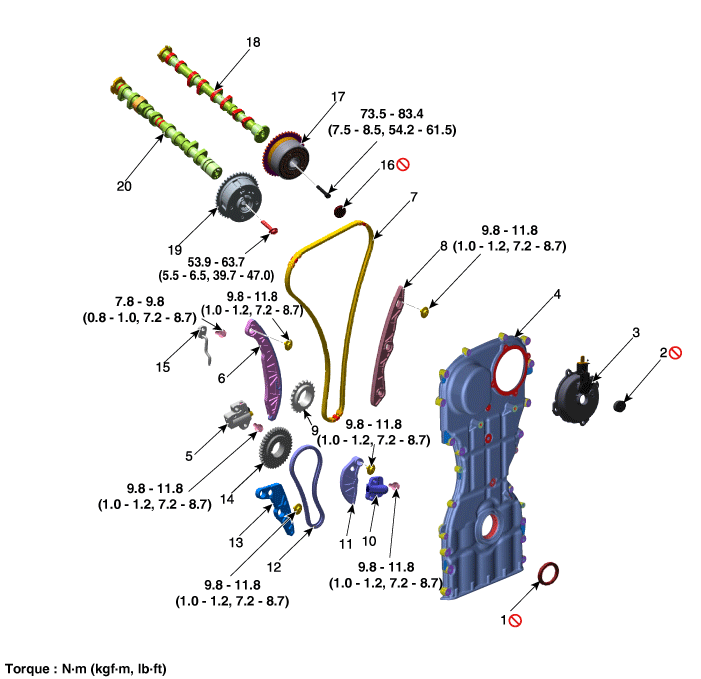

Components

1. Front oil seal
2. E-CVVT cover plug
3. E-CVVT assembly cover
4. Timing chain cover
5. Timing chain tensioner
6. Timing chain tensioner arm
7. Timing chain
8. Timing chain guide
9. Timing chain sprocket
10. Balance shaft chain tensioner
11. Balance shaft chain tensioner arm
12. Balance shaft chain
13. Balance shaft chain guide
14. Balance shaft chain sprocket
15. Timing chain oil jet
16. E-CVVT plug
17. Intake E-CVVT assembly
18. Intake camshaft
19. Exhaust CVVT assembly
20. Exhaust camshaft

Oil Level Gauge & Pipe
Repair procedures Removal and Installation 1. Remove the oil level gauge (A). 2. Remove the engine room front under cover and LH side cover. ...

Front Oil Seal
Repair procedures Replacement 1. Remove the crankshaft damper pulley. (Refer to Drive Belt System - "Crankshaft Damper Pulley") 2. Rem ...
