The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

✽ NOTICE

Some driving information stored in the trip computer (for example Average Fuel Economy) resets if the battery is disconnected.

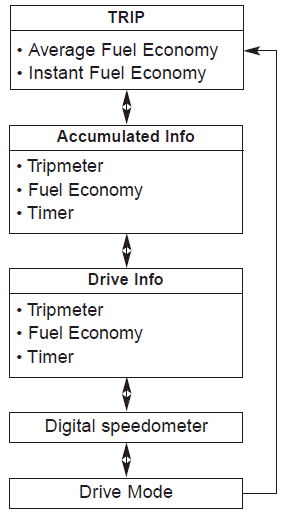

Trip Modes

Fuel Economy

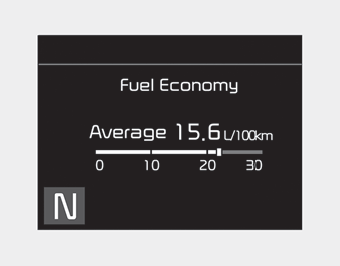

Average Fuel Economy (1)

✽ NOTICE

The fuel economy may vary significantly based on driving conditions, driving habits, and condition of the vehicle.

Manual reset

To clear the average fuel economy manually, press the OK button (reset) on the steering wheel for more than 1 second when the average fuel economy is displayed.

Automatic reset

To make the average fuel economy be reset automatically whenever refueling, select the “Fuel economy auto reset” mode in User Setting menu of the LCD window (Refer to “LCD window”).

✽ NOTICE

For a more accurate calculation of the average fuel economy, the vehicle must be continuously driven more than 10 seconds and 50 meters (0.03 miles).

Instant Fuel Economy (2)

• This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 8 km/h (4.9 mph).

- Fuel economy range : 0 ~ 30 (km/L, L/100 km), 0 ~ 50 (MPG).

CAUTION - Low Fuel Level

Level warning light on or with the fuel level below “E” can cause the engine to misfire and damage the catalytic converter.

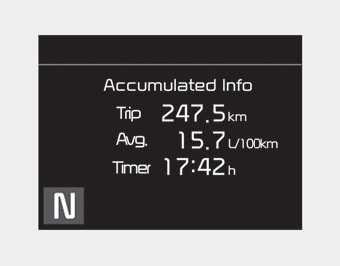

Accumulated driving information mode

Displays accumulated information starting from mileage/fuel efficiency/time default point.

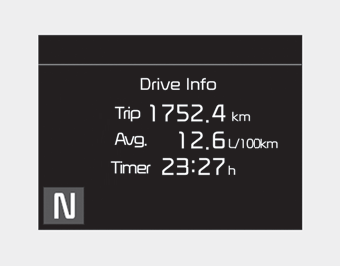

One time driving information mode

The vehicle will display Driving Information once per one ignition cycle.

- Fuel efficiency is calculated after the vehicle has run for more than 300 meters (0.19 mi).
- The Driving Information will be reset 4 hours after ignition has been turned off. So, when the vehicle ignition is turned on within 4 hours, the information will not be reset.
- If you press “OK” button for more than 1 second after the Driving Information is displayed, the information will be reset.
- If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

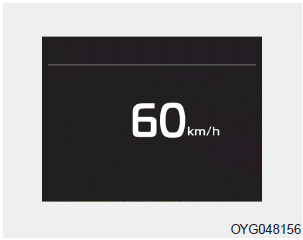

Digital speedometer

This mode displays the current speed of the vehicle.

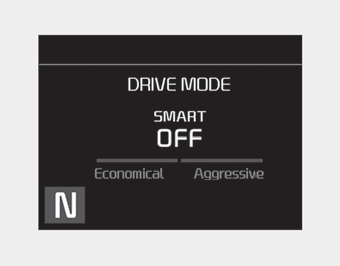

Smart Shift

This mode displays the currently selected drive mode.
