Kia Stinger: Hydraulic System / UD Clutch Control Soleoind Valve (UD/C_VFS)


		Specifications

		| Item
 | Specification
 |

		| Control type
 | N/L (Normal Low)
 |

		| Control pressure kpa (kgf/cm², psi)
 | 0 - 1,569.06 (0 - 16, 0 - 227.57)
 |

		| Current (mA)
 | 0 - 1,100
 |

		| Coil resistance (Ω)
 | 5.3 ± 0.3
 |

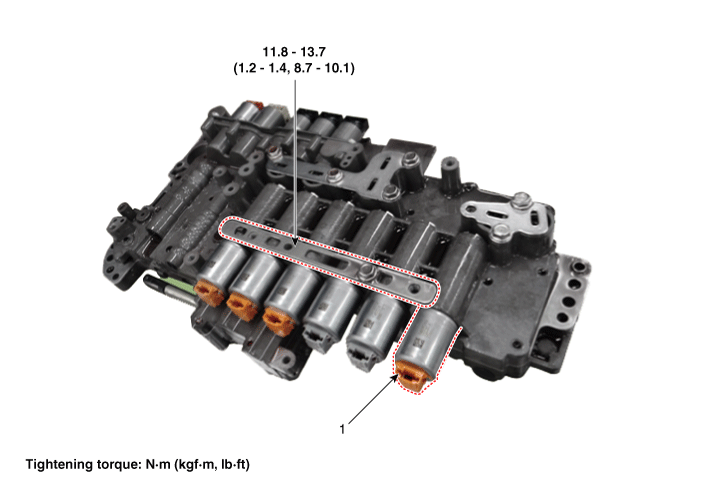

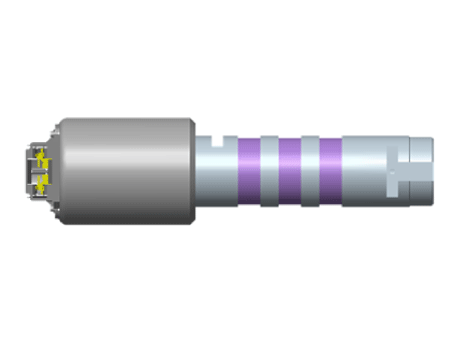

Components and components location


		| 1. UD clutch control solenoid
		valve
 | 2. Solenoid valve support bracket
 |
Description and operation

		| • | UD clutch control solenoid valve is a Variable Force Solenoid (VFS) type.
		 |

		| • | When TCM supplies variable current to solenoid valve, hydraulic pressure
		of 4&OD clutch is controlled directly by solenoid valve.  |

Solenoid Valve Operation
Table

		|
 | Solenoid Valve
 | Clutch
 |

		| UD/C_VFS
 | UD/C
 |

		| P
 |
 |
 |

		| N
 |
 |
 |

		| 1
 | ●
 | ●
 |

		| 2
 | ●
 | ●
 |

		| 3
 | ●
 | ●
 |

		| 4
 | ●
 | ●
 |

		| 5
 |
 |
 |

		| 6
 |
 |
 |

		| 7
 |
 |
 |

		| 8
 |
 |
 |

		| REV
 |
 |
 |

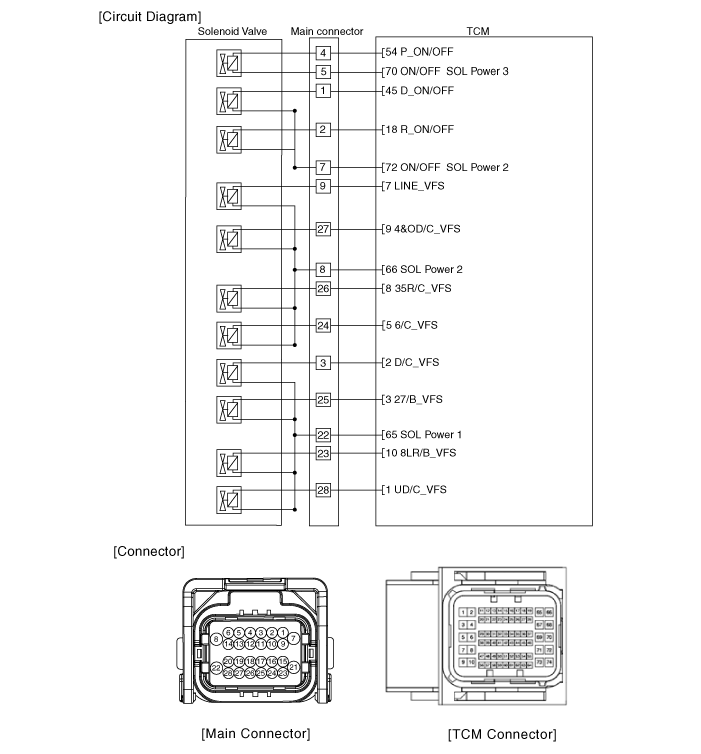

Schematic diagrams

Repair procedures

		| 2. | Disconnect the main connector (A).
		 |

		| 3. | Measure the resistance between power terminal (22) and signal terminal
		(28).

				| Specification : 5.3 ± 0.3 Ω  |  |

		|

				| • | Maintain clean condition so that foreign substance does not get
				into the automatic transmission. |

				| • | Use a coated apron, latex gloves, and stainless tray to prevent
				foreign substance from getting into the transmission.  |  |

		| 1. | Remove the under cover. (Refer to Engine Mechanical System - "Engine Room Under Cover").  |

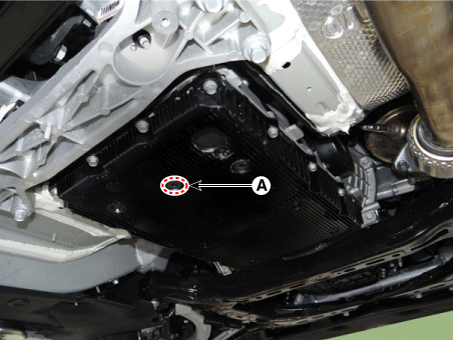

		| 2. | Remove the ATF drain plug (A), allow the fluid to drain out and then
		reinstall the drain plug.

				| Tightening torque :  22.6 - 24.5 N·m (2.3 - 2.5 kgf·m, 16.6 - 18.1 lb·ft) |


				|

						| • | ATF can be reused. Collect it in a clean beaker.  |

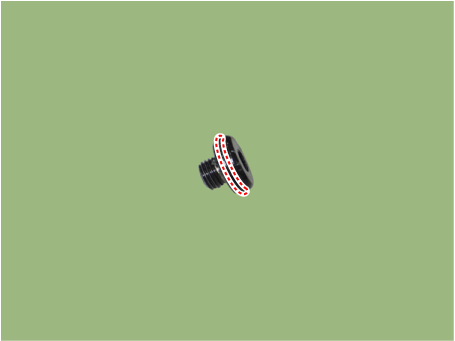

						| • | The existing ATF drain plug O-ring must be replaced with
						a new one. (Do not reuse it.)
						 |  |  |

		| 3. | Disconnect the main connector (A).
		 |

		| 4. | Remove the valve body cover.

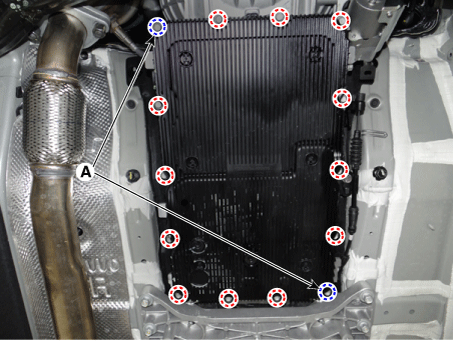

				| (1) | Loosen the all valve body mounting bolts except for the bolts
				(A) in the corner.

						| Tightening torque :  13.7 - 15.7 N·m (1.4 - 1.6 kgf·m, 10.1 - 11.6 lb·ft) |
				 |

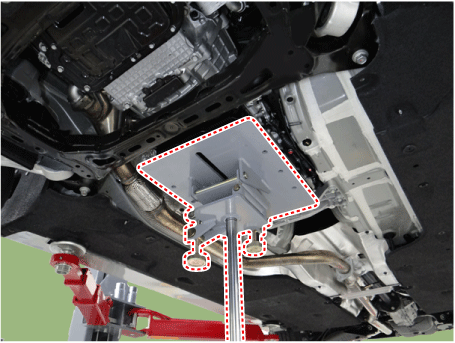

				| (2) | Loosen the two bolts (A) in the corner after supporting the valve
				body cover on a jack and then remove the valve body cover by lowering
				the jack slowly.

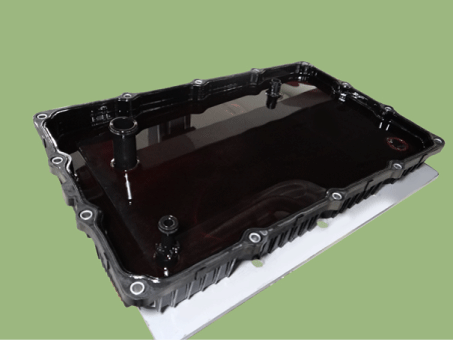

						| Be careful when removing the valve body cover because
						the remaining ATF remains in the valve body cover.
						 |  |  |

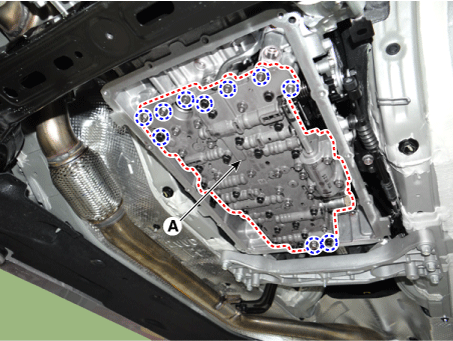

		| 5. | Remove the valve body assembly (A) after loosening the bolts.

				| Tightening torque :  9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft) |
		 |

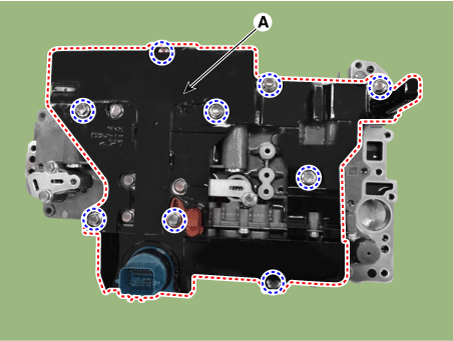

		| 6. | Remove the E-module (A) after loosening the bolts.

				| Tightening torque :  9.8 - 11.8 N·m (1.0 - 1.2 kgf·m, 7.2 - 8.7 lb·ft) |


				| When installing, after mounting the E-module, lightly tap the
				connector part (A) to insert the connector certainly and then tighten
				the bolts.
				 |  |

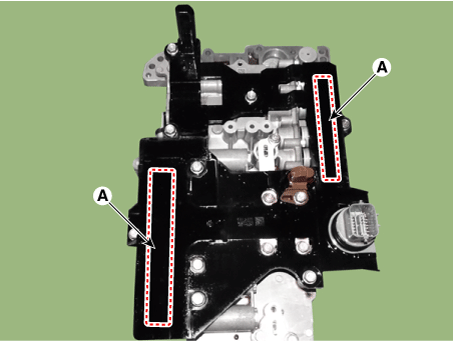

		| 7. | Remove the solenoid valve support bracket (A).

				| Tightening torque :  11.8 - 13.7 N·m (1.2 - 1.4 kgf·m, 8.7 - 10.1 lb·ft) |
		 |

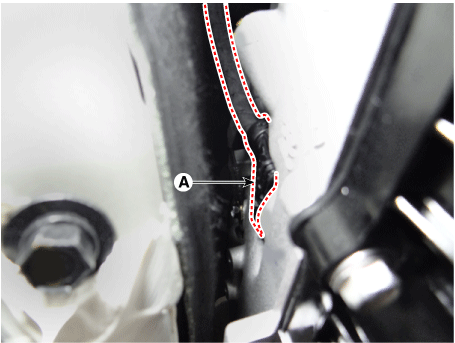

		| 8. | Remove the pin (A).
		 |

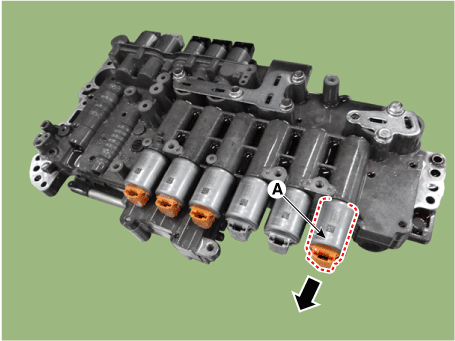

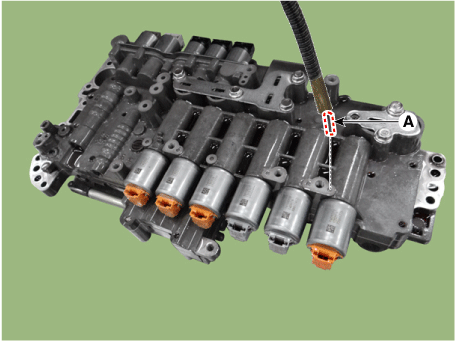

		| 9. | Remove the UD clutch control solenoid valve (A).
		 |

		| 1. | Install in the reverse order of removal.

				|

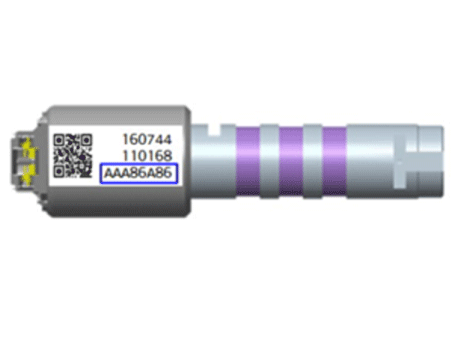

						| • | Check the code (oil pressure characteristics value) at
						the first before installing the solenoid valve.
						 |

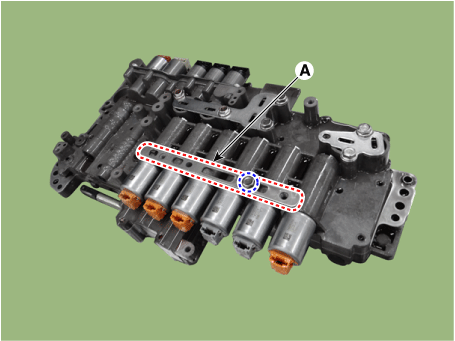

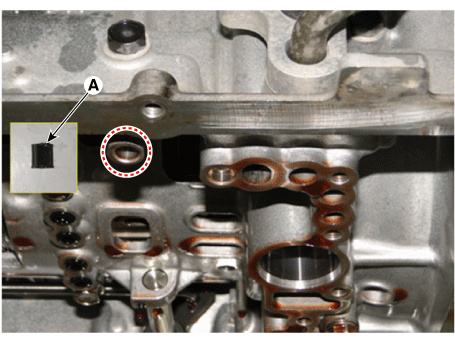

						| • | Check if the pipe (A) is inserted on the marked area
						before mounting the valve body assembly.
						 |  |  |

		| 2. | Perform the procedures below after installing.

				| (1) | Refill the automatic transmission with fluid. (Refer to Hydraulic System - "Fluid")  |

				| (2) | Clear the diagnostic trouble codes (DTC) using the KDS. Disconnecting
				the battery negative terminal will not clear the DTCs. Clear DTCs
				using the KDS at all times. |

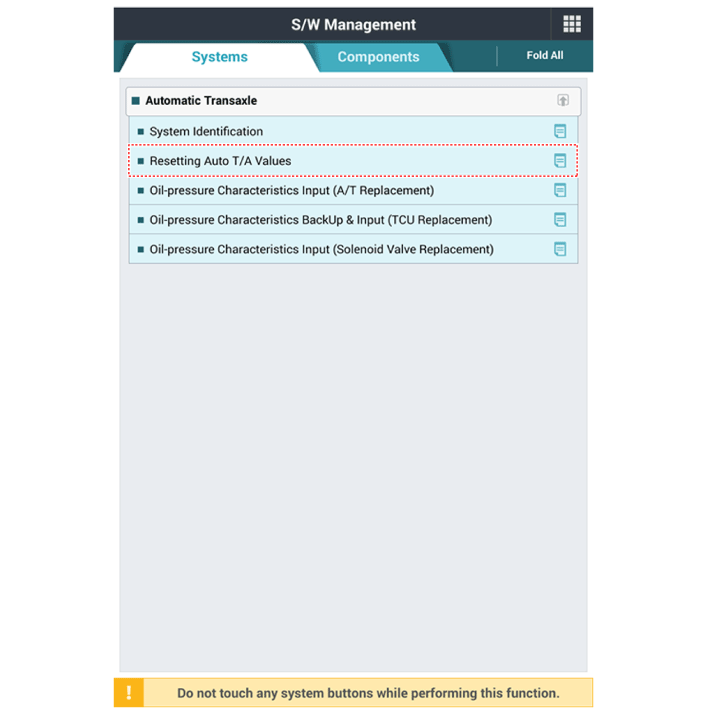

				| (3) | Reset the automatic transmission adaptive values using the KDS.
				 |

				| (4) | Perform the oil pressure characteristics input procedure using
				the KDS.  (Refer to Hydraulic System - "Oil pressure characteristics input")
				 |

				| (5) | Perform the TCM adaptive values learning procedure. (Refer to Automatic Transmission Control System - "Repair procedures")
				 |

				| (6) | After installing, check for leakage of fluid from hose connection
				during engine start. |  |
