Kia Stinger: LCD windows / User Settings Mode

Kia Stinger CK 2018-2020 Owners Manual / Features of your vehicle / LCD windows / User Settings Mode

Description

On this mode, you can change setting of the doors, lamps, and so on.

WARNING

Do not adjust the User Setting while driving.You may lose your steering control which could cause an accident and severe bodily injury.

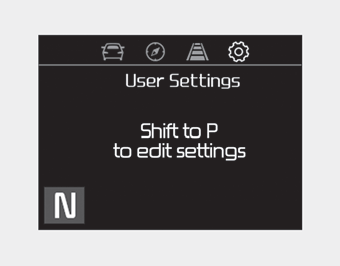

Shift to P to edit settings

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and pressing the parking “P” button.

Head-Up Display (HUD)

Driver Assistance (if equipped)

• Smart Cruise Control with Stop & Go Response (if equipped) :

- Choose the sensitivity (slow, normal, fast) of the smart cruise control.

❈For more details, refer to “Smart Cruise Control with Stop & Go” in chapter 5.

• Driver Attention Warning : Choose the alert stage (Off/Normal/Early stage) of the Driver Attention Warning.

• Lane Keeping Assist (LKA, if equipped) :

- Lane Departure Warning : To activate the lane departure warning function.
- Standard LKA : To activate the standard LKA mode.
- Active LKA : To activate the active LKA mode.

❈For more details, refer to “LKA (Lane Keeping Assist)” in chapter 5.

• Forward Collision-avoidance Assist (FCA, if equipped) :
- To activate or deactivate the FCA system.

❈For more details, refer to “Forward Collision-avoidance Assist(FCA)” in chapter 5.

• Forward Collision Warning (FCW, if equipped)
- Choose the sensitivity of the forward collision warning. (Late/Normal/Early)

❈For more details, refer to “Forward Collision-avoidance Assist(FCA)” in chapter 5.

• Blind Spot Collision Warning (if equipped)
- If this item is checked, the blind spot collision warning function will be activated.

❈For more details, refer to “Blind-spot Collision Warning” in chapter 5.

Blind Spot Collision Warning Sound (if equipped)
- If this item is checked, the blind spot collision warning sound function will be activated.

❈For more details, refer to “Blind-spot Collision Warning” in chapter 5.

Door/Liftgate

• Automatically Lock :
- Enable on Speed : All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph).
- Enable on Shift : All doors will be automatically locked if the automatic transaxle shift lever is shifted from the P (Park) position to the R (Reverse), N(Neutral), or D (Drive) position.

• Automatically Unlock :
- Disable : The auto door unlock operation will be canceled.
- Vehicle Off : All doors will be automatically unlocked when the Engine Start/Stop Button is set to the OFF position.
- On Shift to P : All doors will be automatically unlocked if the automatic transaxle shift lever is in the parking position by pressing “P”button.

• Two Press Unlock (if equipped) If this item checked, the two press unlock function will be activated. (Only the driver’s door will unlock when unlock button is pressed once and all doors will unlock when the same button is pressed again within 4 seconds.)

• Power Liftgate (if equipped)
- If this item is checked, the power liftgate function will be activated.

❈For more details, refer to “Power Liftgate” in this chapter.

• Smart Liftgate (if equipped)
- If this item is checked, the smart liftgate function will be activated.
- If the power liftgate function is not activated, you cannot activate this function.

❈For more details, refer to “Smart Liftgate” in this chapter.

Light

• One Touch Turn Signal :
- Off: The one touch turn signal function will be deactivated.
- 3, 5, 7 Flashes : The lane change signals will blink 3, 5 or 7 times when the turn signal lever is moved slightly.

❈For more details, refer to “Light” in this chapter.

• Ambient light brightness : Adjust the brightness of the Ambient light.
- Off/Level 1,2,3,4

• Ambient Light Color : Select the color of the ambient light.
- white, yellow, red, bluegreen, blue, violet

• Head Light Delay :
- If this item is checked, the head light delay function will be activated.

Sound

• Parking distance warning-reverse Vol. (if equipped) :
- Adjust the Parking distance warning- forward volume. (Level 1 ~ 3)

❈For more details, refer to “Parking distance warning-reverse” in this chapter.

• Welcome Sound (if equipped) :
- If this item checked, the welcome sound function will be activated.

Convenience

• Seat Easy Access (if equipped)
- Off : The seat easy access function will be deactivated.
- Normal/Extended : When you turn off the engine, the driver’s seat will automatically move rear for you to enter or exit the vehicle more comfortably. If you change the Engine Start/Stop Button from OFF position to the ACC function, the driver’s seat will return to the original position.

❈For more details, refer to “Driver Position Memory System” in chapter 3.

• Steering Easy Access (if equipped)
- On (checked) : The steering wheel will automatically move to the top of Steering column when leaving the vehicle and move to the last saved position when entering the vehicle for the driver to enter or exit the vehicle comfortably.
- Off (unchecked) : The steering easy access function will be deactivated.

❈For more details, refer to “Driver Position Memory System” in chapter 3.

• Welcome Mirror/Light (if equipped) :
- If this item is checked, the welcome Mirror/light function will be activated.

• Wiper/Light Display (if equipped) : If this item is checked, the Wiper/Light Display will be activated.

• Gear Position Pop-up (if equipped) : If this item is checked, the gear position pop-up display will be activated.

• Icy road warning (if equipped) : If this item is checked, the Icy road warning display will be activated.

Service interval

• Service Interval

To activate or deactivate the service interval function.

• Adjust Interval

To adjust the interval by mileageand period.

• Reset

To reset the service interval function.

Other features

• Fuel Economy Auto Reset

- Off : The average fuel economy will not reset automatically whenever refueling.
- After Ignition : The average fuel economy will reset automatically whenever it has passed 4 hours after turning OFF the engine.
- After Refueling : The average fuel economy will reset automatically when refueling.

❈For more details, refer to “Trip Computer” in this chapter.

• Fuel Economy Unit

- Choose the fuel economy unit. (L/100km, US gallon, UK gallon)

• Temperature Unit

- Choose the temperature unit. (°C,°F)

• Tire Pressure Unit (if equipped)

- Choose the tire pressure unit. (psi, kPa, bar)

• Torque Unit(if equipped)

- Choose the torque unit. (N·m, lb·ft)

Language

Choose the language

Reset

You can reset the menus in the User Settings Mode. All menus in the User Settings Mode are initialized, except language and service interval.
