Kia Stinger: LCD windows / Warning Messages

Kia Stinger CK 2018-2020 Owners Manual / Features of your vehicle / LCD windows / Warning Messages

Shift to P
Low Key Battery
Press brake pedal to start engine
Key not in vehicle
Key not detected
Press start button again
Press start button with key
Check BRAKE SWITCH fuse
Shift to P or N to start engine

• This warning message illuminates if you try to start the engine with the transmission not in the P (Park) or N (Neutral) position.

✽ NOTICE

You can start the engine with the transmission in the N (Neutral) position. But, for your safety, we recommend that you start the engine with the transmission in the P (Park) position.

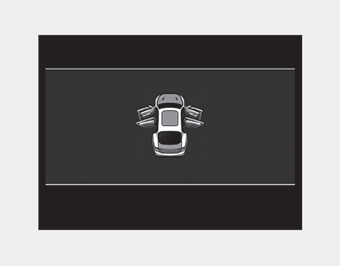

Door, Hood, Liftgate Open

Sunroof Open

• This warning message illuminates if you turn off the engine and then open the driver's door when the sunroof is open.

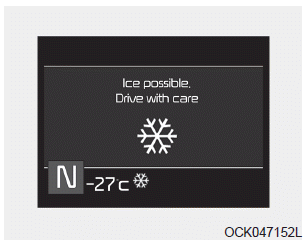

Icy Road Warning Light

This warning pop-up message and light are to warn the driver the road may be icy.

When the Outside Temperature is below approximately 4°C (39°F),

- The warning light (including Outside Temperature) blinks 5 times and then illuminates.
- The warning pop-up message displays, and the warning chime sounds once at the same time only once for each ignition cycle.

✽ NOTICE

If the icy road warning light appears while driving, you should drive more attentively and refraining from speeding, rapid acceleration, sudden braking or sharp turning.

Check headlight LED

This warning message illuminates if LED headlamp malfunctions.

Check headlight cooling fan

This warning message illuminates if LED headlamp cooling fan malfunctions.

Check shift lever

If there is a problem with the main function of the shift lever, this warning is displayed.

Low Washer Fluid
Turn on FUSE SWITCH

❈For more details, refer to “Fuses” in chapter 7.

Check headlights (if equipped)

This warning message illuminates if there is a malfunction (burned-out bulb or circuit malfunction) with the head lights (high and low beam). In this case, have the vehicle inspected by an authorized Kia dealer.

✽ NOTICE

Low Fuel

• This warning message illuminates if the fuel tank is nearly empty.

- When the low fuel level warning light is illuminated, add fuel as soon as possible.

Check Smart Phone Wireless Charger (if equipped)

If a smart phone is still left in the wireless charging pad unattended, even when the the Engine Start/Stop Button is in the ACC or OFF position, a warning message will appear on the instrument panel.

❈For more details, refer to “Smart Phone Wireless Charger” in this chapter.

User Settings Mode
Description On this mode, you can change setting of the doors, lamps, and so on. WARNING Do not adjust the User Setting while driving.You may lose your steering control which could cause an acc ...

Warning and indicator lights
...
