Kia Stinger: Cylinder Block / Water Jacket Separator

Kia Stinger CK 2018-2025 Service Manual / Engine Mechanical System / Cylinder Block / Water Jacket Separator

Repair procedures
Removal and Installation
1.

Remove the cylinder head.

(Refer to Cylinder Head Assembly - "Cylinder Head")

2.

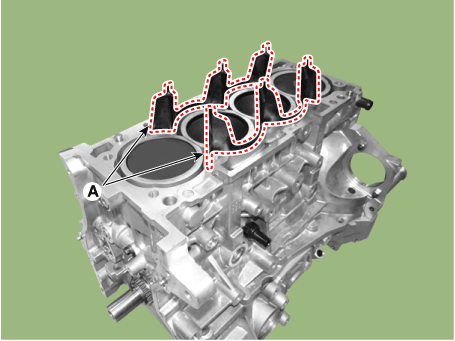

Remove the water jacket separator (A).

3.

Install the other parts in the reverse order of removal.
