Kia Stinger CK: Power Train / Fuel Filter (For Diesel engine only)

Kia Stinger (CK) 2018-2023 Service Manual / Maintenance / Power Train / Fuel Filter (For Diesel engine only)

Repair procedures
Removal
1.

Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

2.

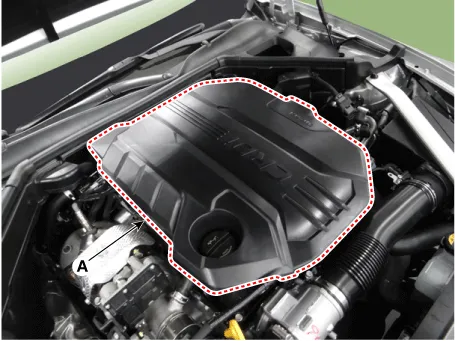

Remove the engine cover (A).

3.

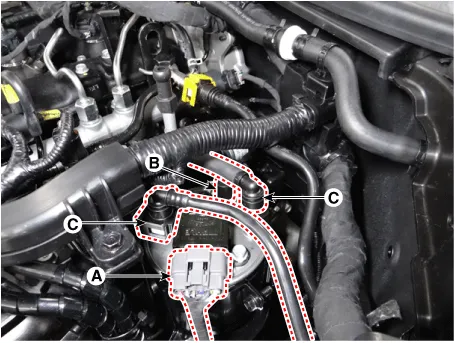

Disconnect the water sensor connector & fuel heater connector (A), fuel pressure sensor connector (B).

4.

Disconnect the fuel inlet tube line quick-connector (C),from the fuel filter.

5.

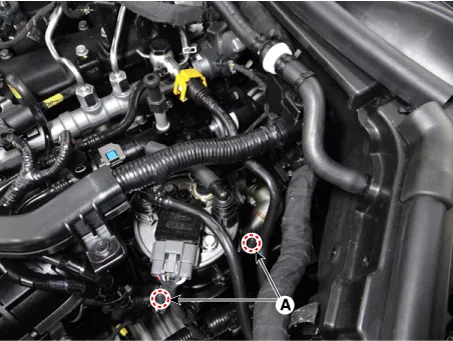

Remove the fuel filter bracket installation bolts (A), and then remove the fuel filter from the vehicle.

6.

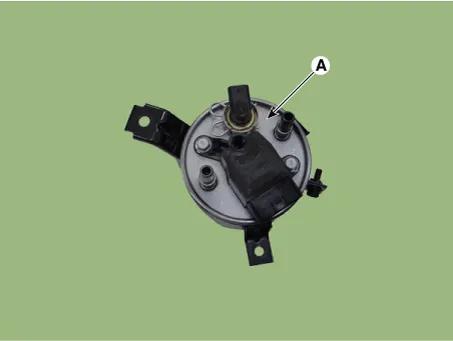

Remove the fuel filter installation bolts, and then remove the fuel filter assembly from the bracket.

Installation
1.

Install in the reverse order of removal.



After removing or replacing the following parts, bleed air in low pressure fuel circuit.

(Refer to Fuel Delivery System - "Air bleeding in low pressure fuel circuit")

–

Fuel Tank

–

Low Pressure Fuel Pump

–

Fuel Pump Motor

–

Fuel Sender

–

Fuel Filter

–

Fuel Heater

–

Water Sensor

–

Fuel Line

–

High Pressure Fuel Pump

–

Common Rail
