Kia Stinger: Cylinder Block / Rear Oil Seal

Kia Stinger CK 2018-2025 Service Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal

Repair procedures

Replacement

1.	Remove the automatic transmission. (Refer to Automatic Transmission System - "Automatic Transmission")

2.	Remove the drive plate. (Refer to Cylinder Block - "Drive Plate")

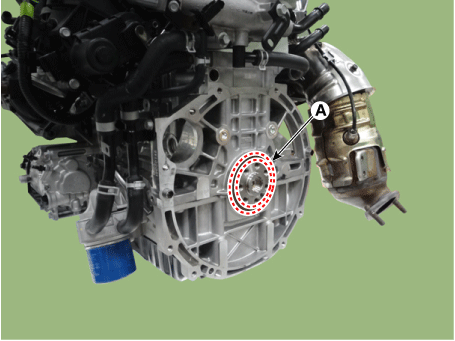

3.	Remove the rear oil seal (A).

Install new rear oil seal.

(1)	Apply engine oil to a new oil seal lip.

(2)

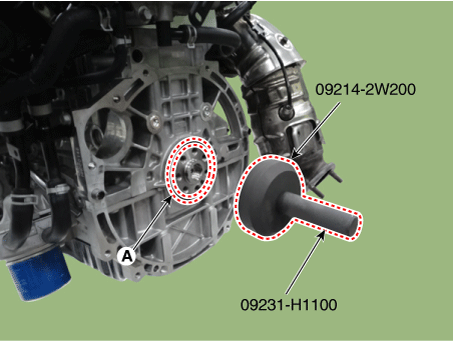

Using SST (09214 - 2W200, 09214-3K100) (B) and a hammer, tap in the oil seal (A) until its surface is flush with the rear oil seal retainer edge.

Always use a new rear oil seal.

5.	Install the other parts in the reverse order of removal.
