Description and operation

Description

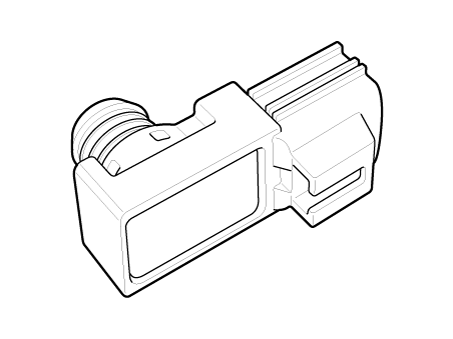

In order to ensure adequate brake power assistance in every situation, the brake booster is equipped with a partial vacuum sensor. The brake booster vacuum pressure sensor is located beside the brake booster.

Schematic diagrams

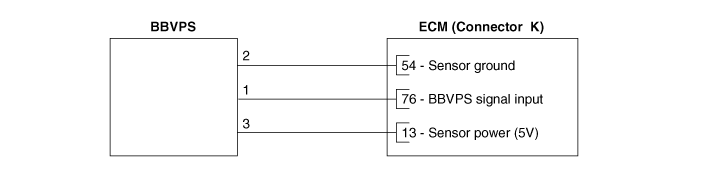

Circuit Diagram

Repair procedures

Inspection

1.	Check for loose connection of BBCPS and vacuum hose, and damage of vacuum hose.

2.	Connect KDS to DLC (Data Link Cable).

3.	Warm up the engine to normal operating temperature.

4.	Monitor "BBVPS" parameter on KDS.
