Kia Stinger: Interior Trim / Cowl Side Trim

Kia Stinger CK 2018-2024 Service Manual / Front Seat Belt / Interior Trim / Cowl Side Trim

Components and components location

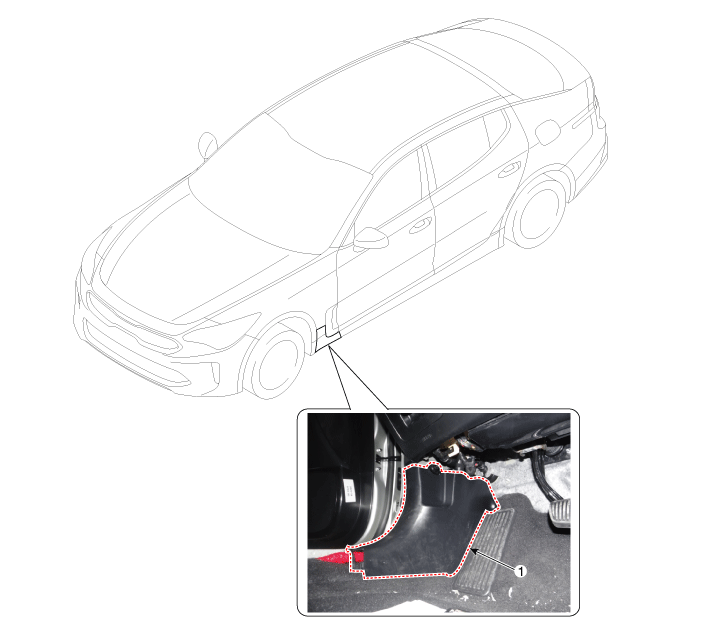

Component Location

1. Cowl side trim

Repair procedures

Replacement

Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or using a prying trim tool, wrap protective tap around the tool and related parts to prevent damage.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

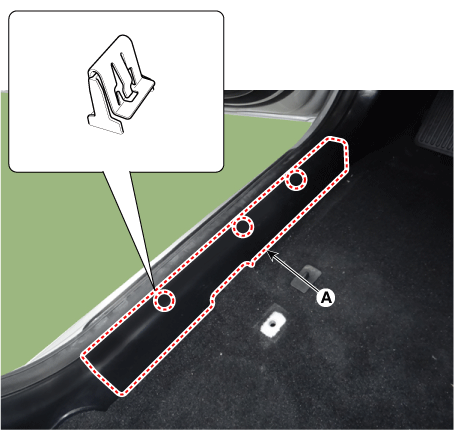

1.	Remove the front door scuff trim (A) by using a remover.

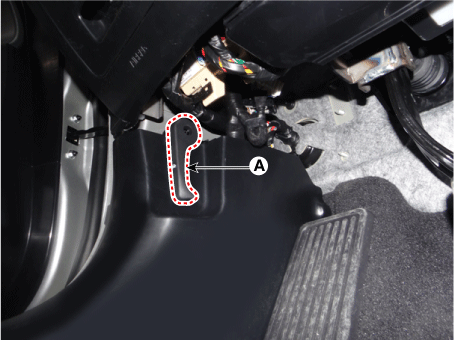

2.	Remove the hood latch release handle (A).

3.	Carefully remove the front door body side weather strip.

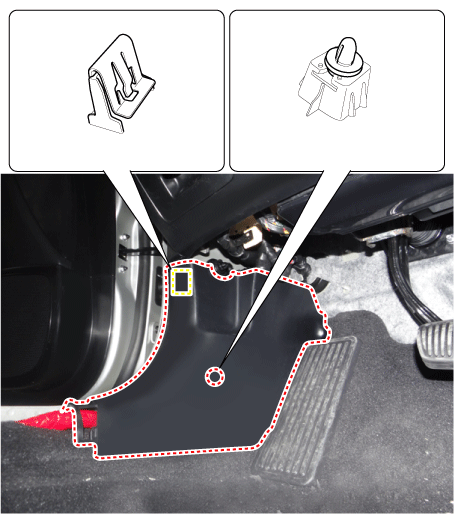

4.	Remove the cowl side trim (A) by using a remover.

Install in the reverse order of removal.

Replace any damage clips.
