Kia Stinger: Emission Control System / Crankcase Emission Control System
Kia Stinger CK 2018-2025 Service Manual / Emission Control System / Crankcase Emission Control System

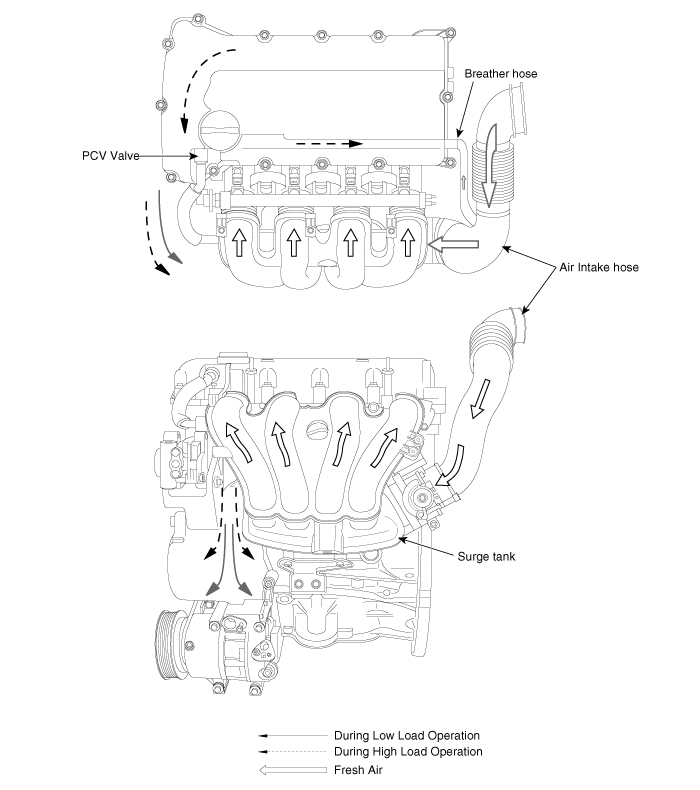

Schematic diagrams
| Schematic Diagram |
Repair procedures
| Inspection |
| 1. |
After disconnecting the vapor hose from the PCV valve, remove the PCV valve. |
| 2. |
Reconnect the PCV valve to the vapor hose. |
| 3. |

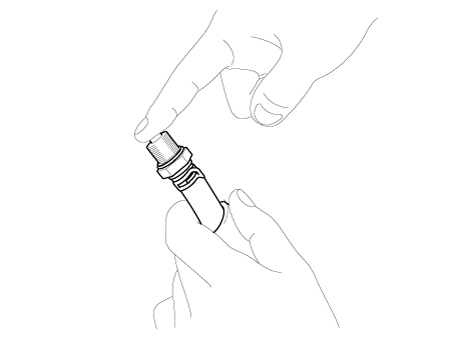

Run the engine at idle, then put a finger over the open end of the PCV valve and make sure that intake manifold vacuum can be felt.
|
| 4. |
If vacuum could not be felt, inspect the PCV operation. If operating correctly, clean or replace the vapor hose. |
Specifications
Service data
Service Data
Purge Control Solenoid Valve (PCSV)
▷ Specification
Item
Specification
Coil Resistance (Ω)
18.5 - ...
Positive Crankcase Ventilation (PCV) Valve
Description and operation
Operation Principle
Repair procedures
Removal
1.
Disconnect the PCV hose (A).
2.
Remove the PCV valve ...
