Kia Stinger: Fuses / Fuse/relay panel description
■ Driver’s side fuse panel
■ Engine compartment fuse panel

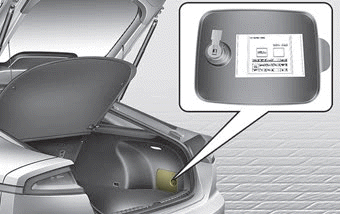

■ Rear fuse box panel
■ Battery box fuse panel
Inside the fuse/relay panel covers, you can find the fuse/relay label describing
fuse/relay name and capacity.
✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle.
It is accurate at the time of printing. When you inspect the fuse panel in your
vehicle, refer to the fuse panel label.
Driver’s side fuse panel

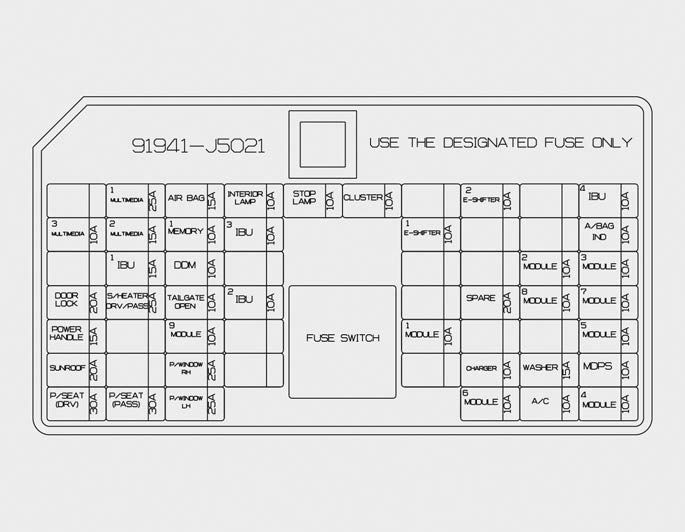

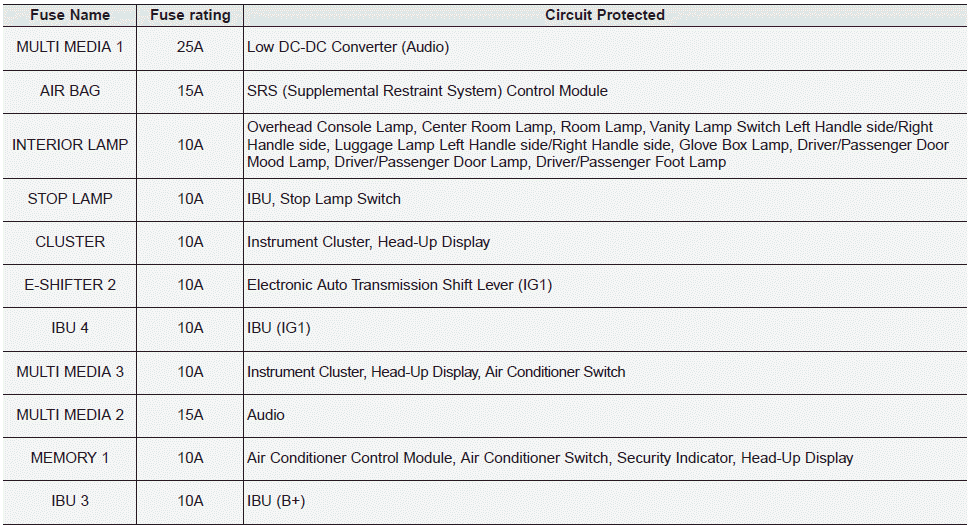

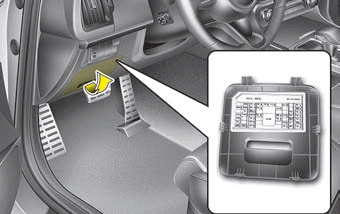

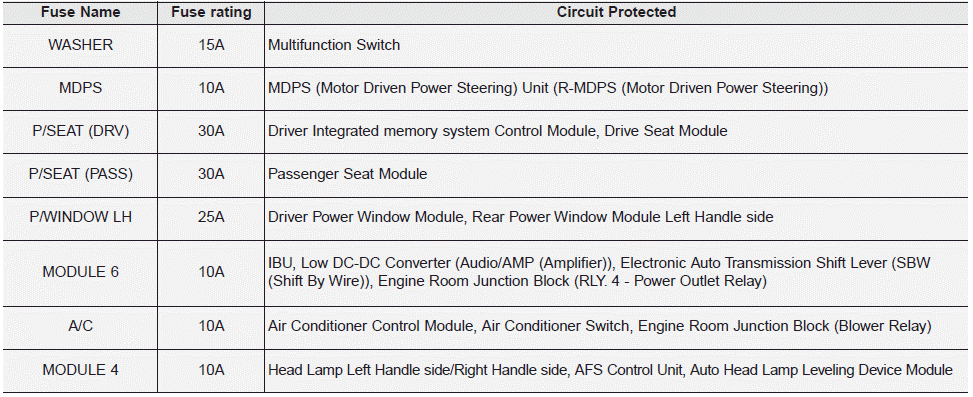

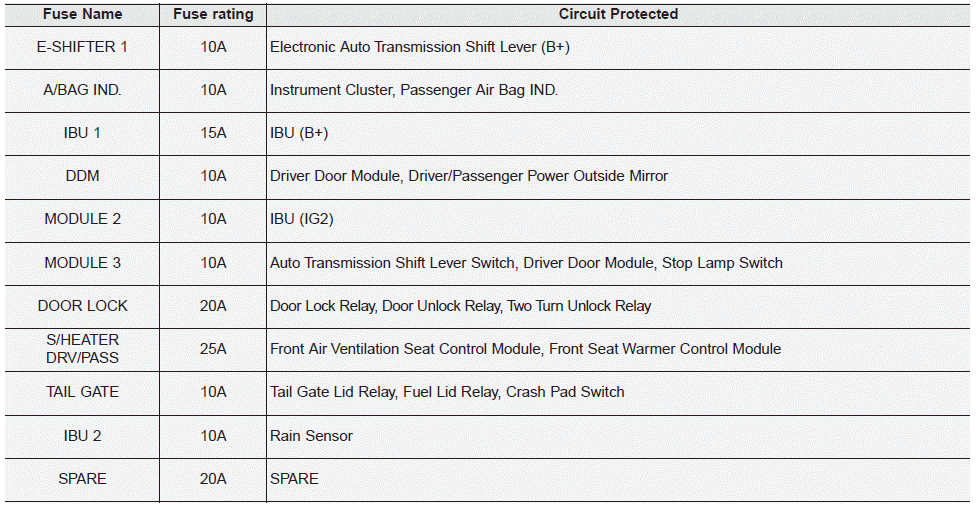

Instrument panel (Driver’s side fuse panel)

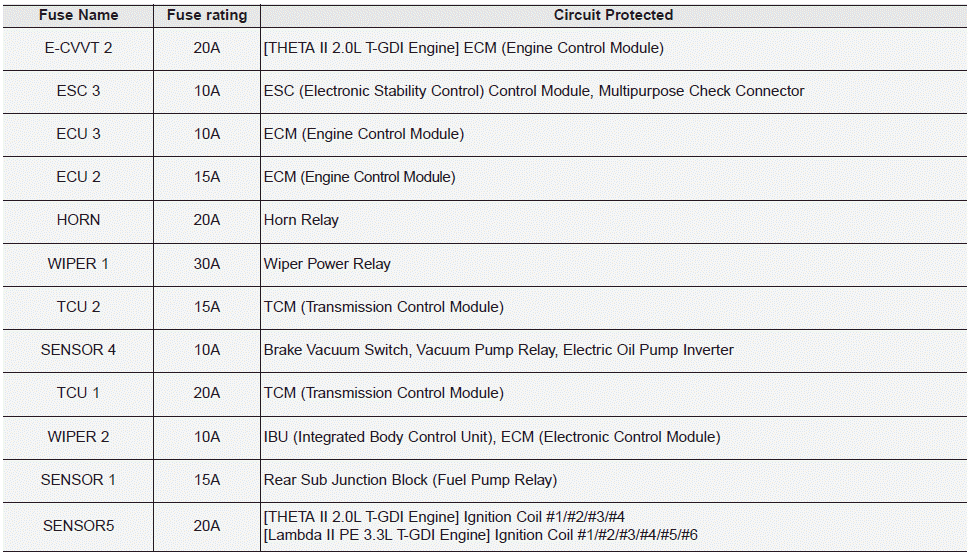

Engine compartment fuse panel

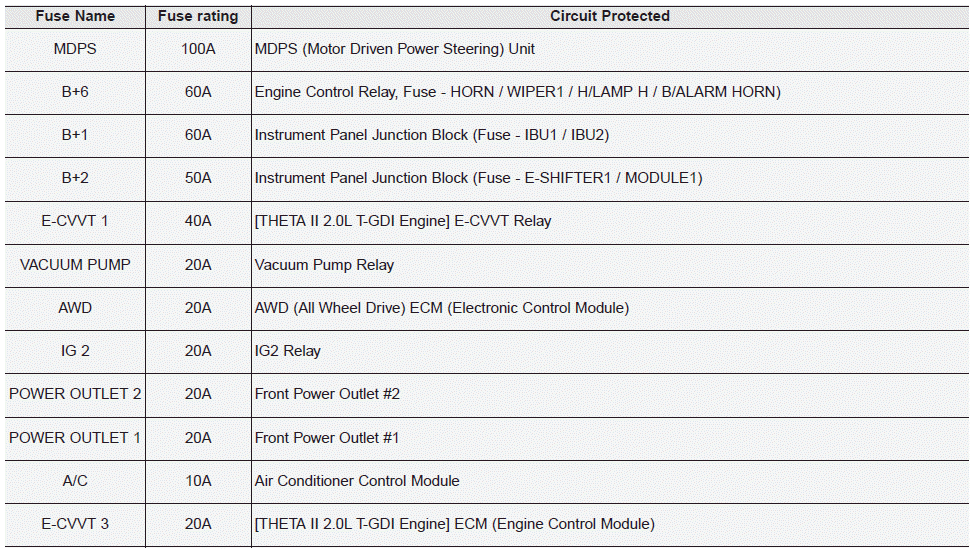

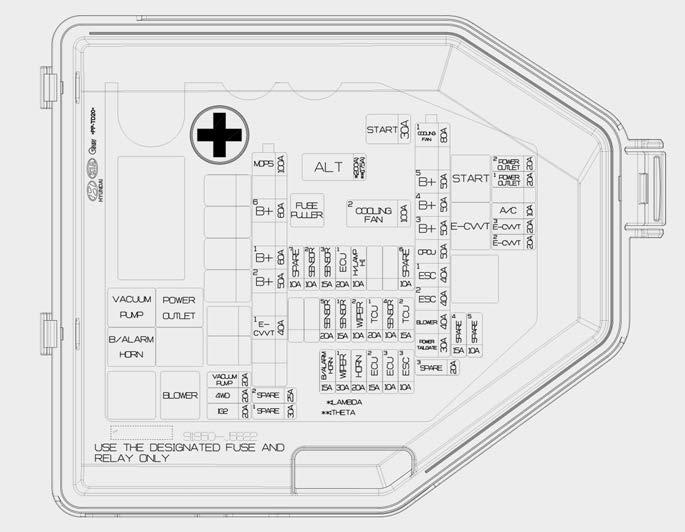

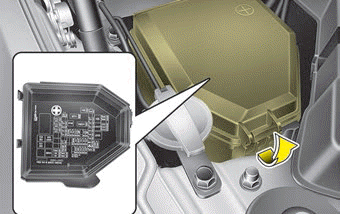

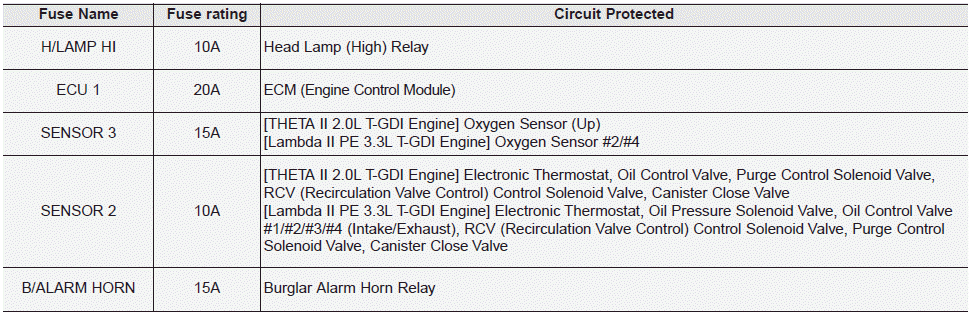

Engine room compartment fuse panel

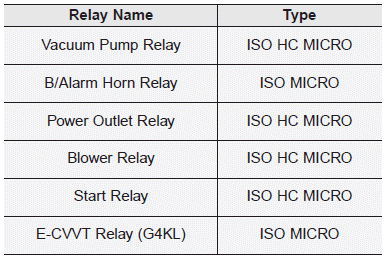

Relay

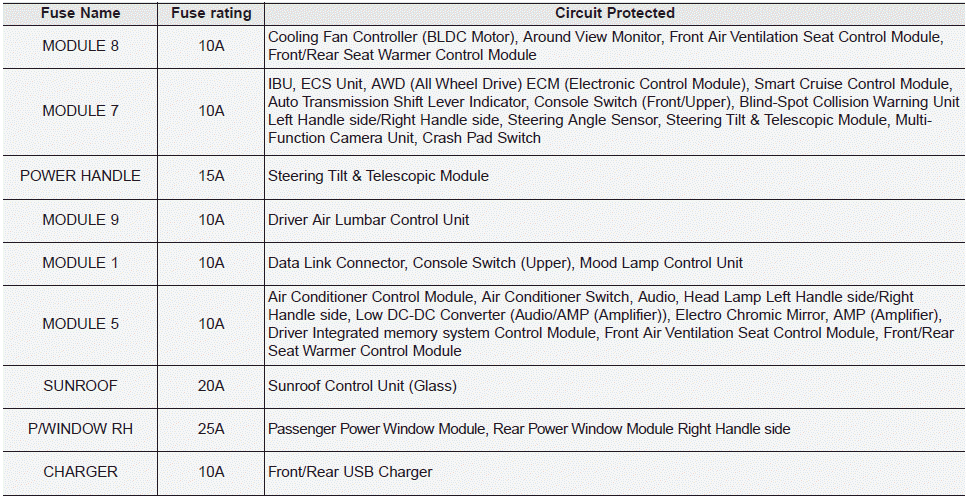

Rear fuse box panel

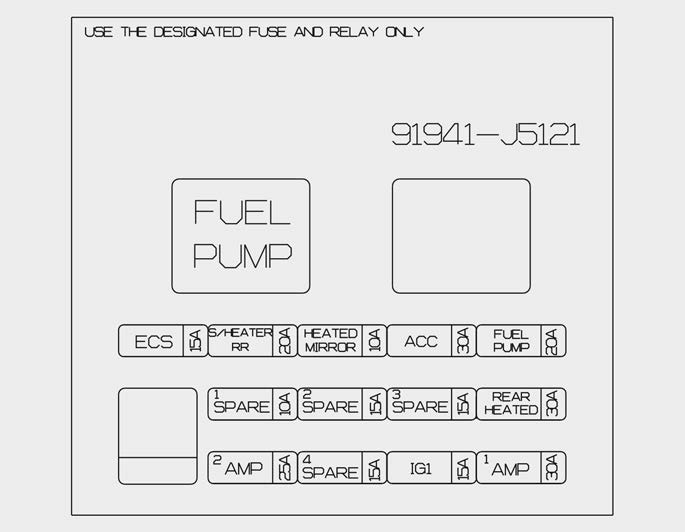

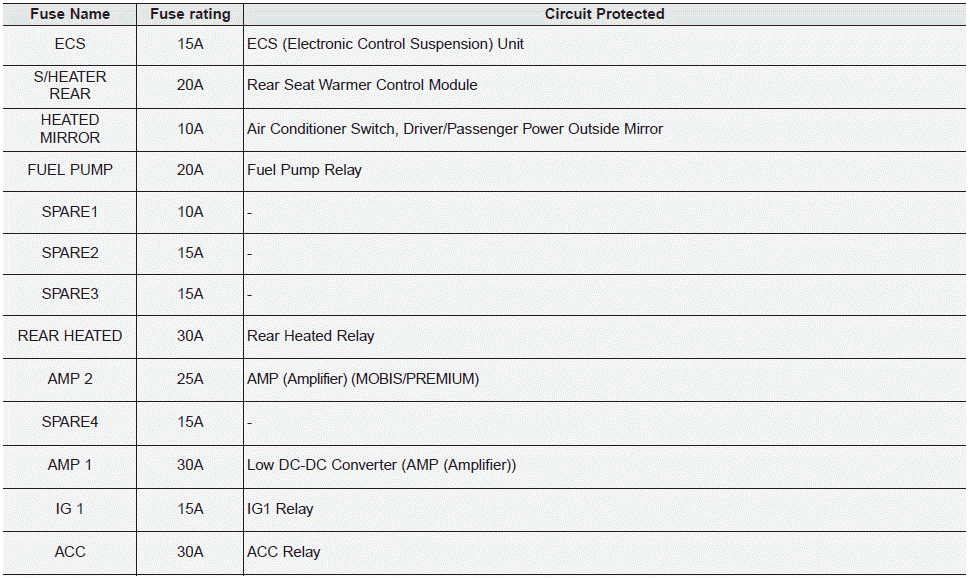

Rear fuse box panel

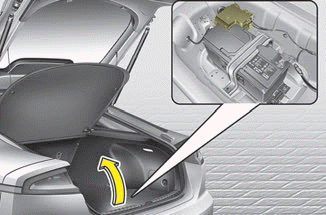

Battery box fuse panel

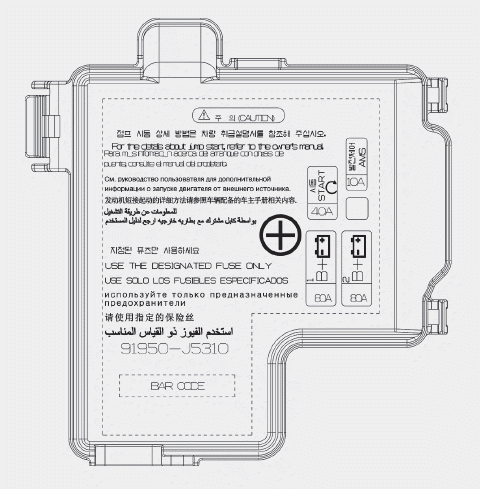

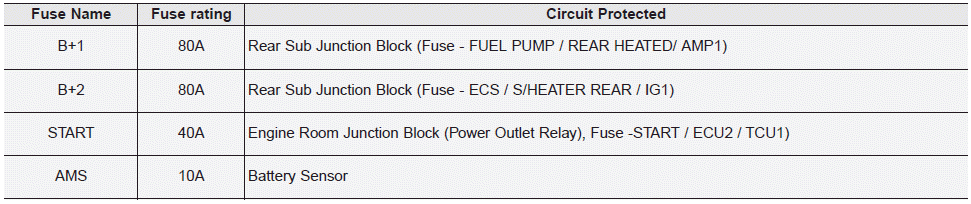

Battery box fuse panel
1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up.
When the blade type fuse is disconnected, remove it by using t ...
