Kia Stinger: Engine Control System / Injector

Kia Stinger CK 2018-2022 Service Manual / Engine Control / Fuel System / Engine Control System / Injector


Coil Resistance (Ω)
1.4 - 1.6 [20°C(68°F)]

Description and operation

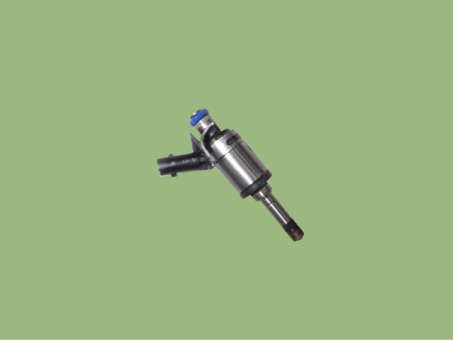

The GDI injector is similar to a standard injector, but sprays fuel at a much higher pressure directly into the combustion chamber and has a swirl disc to get the fuel swirling as it exits the nozzle. This aids in atomization of the fuel.

The ECM controls both the feed circuits (high side) to feed voltage to the injectors and the ground circuits (low side) to energize the injectors. Also, the feed for 2 injectors comes from the same driver set. As the ignition coils are paired with cylinders (1-4 and 2-3), the injectors are also set up in pairs.

Schematic diagrams

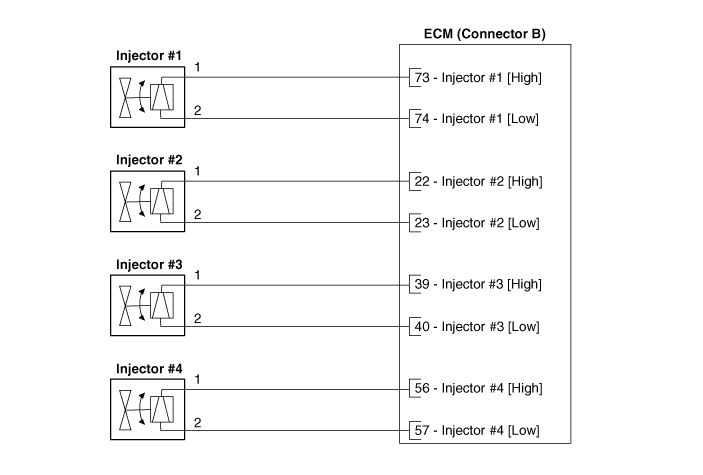

Circuit Diagram

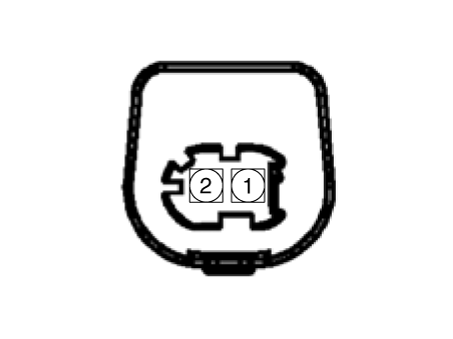

Harness Connector

Repair procedures

Switch "OFF" the ignition.


Disconnect the injector connector.


Measure resistance between the injector terminals 1 and 2.


Check that the resistance is within the specification.

Specification: 1.18 - 1.31 [20°C(68°F)]


Release the residual pressure in fuel line.

(Refer to the Fuel Delivery System - "Release Residual Pressure in Fuel Line")


Switch "OFF" the ignition and disconnect the negative (-) battery terminal.


Remove the intake manifold.

(Refer to Engine Mechanical System - “Intake Manifold”)

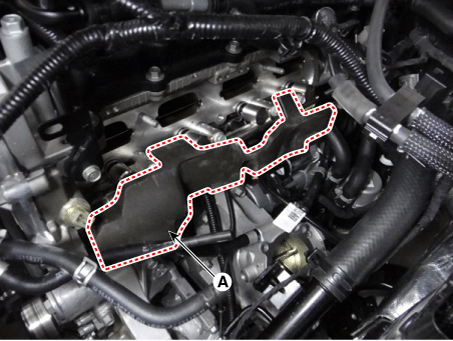

Remove the delivery pipe foam (A).


Remove the cowl top cover assembly.

(Refer to Body (Interior and Exterior) - Cowl Top Cover")

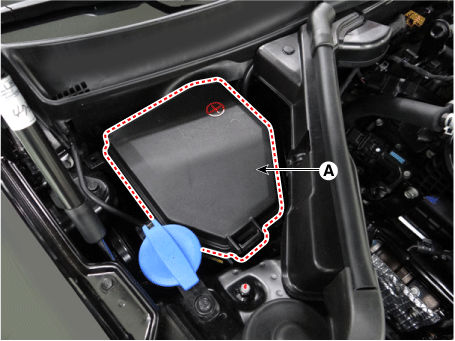

Remove the engine box cover (A).

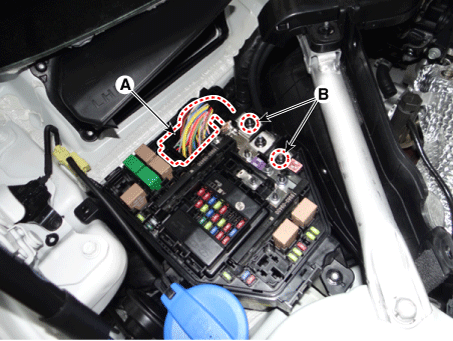

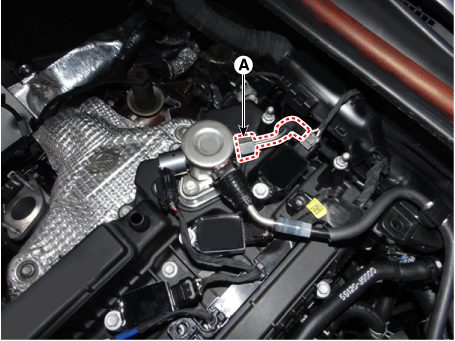

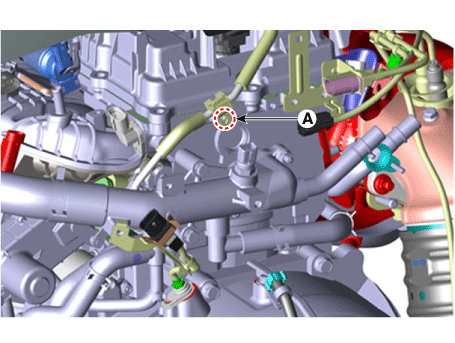

Disconnect the front control connector (A).


Remove the groune terminal nuts (B).

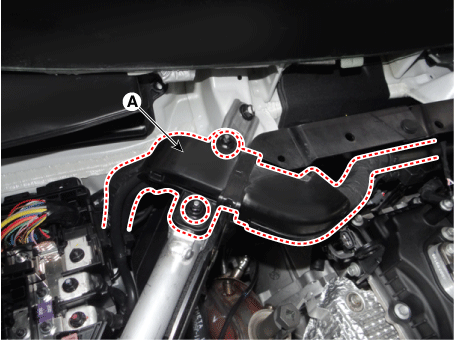

Remove the wiring protector (A).


Remove the high pressure fuel pipe.


Remove the high pressure fuel pipe mounting bolt (A).


Remove the high pressure fuel pipe flange nut (A).

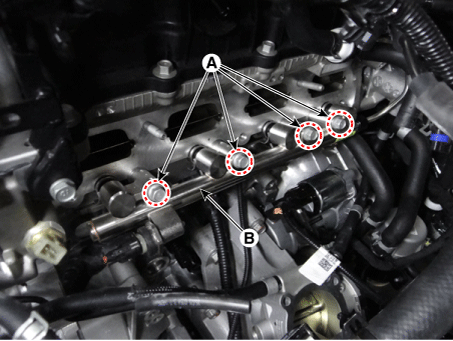

Remove the mounting bolts (A), and then remove the delivery pipe & injector assembly from the engine.

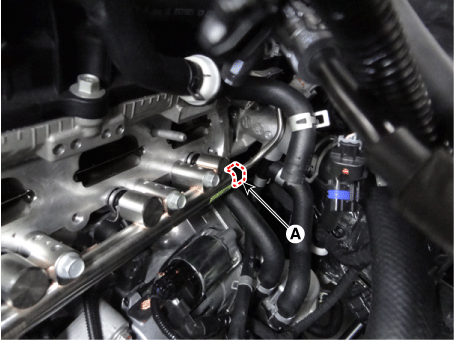

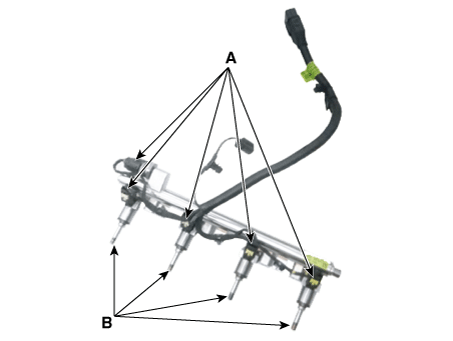

Disconnect the injector & rail pressure sensor connector (A).


Remove the injector (B) from the delivery pipe.

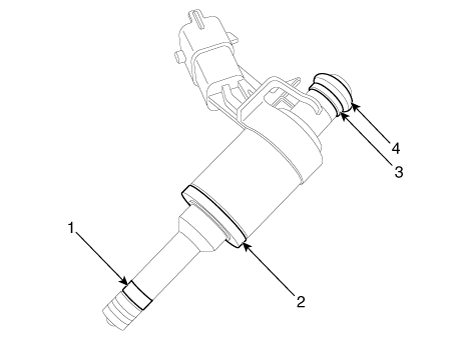

Combustion seal


Rubber washer


Support disc




Do not reuse injector fixing clips.

Install the component to the specified torques.

Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.

Apply engine oil to the injector O-ring.

Do not reuse injector O-rings.

Do not reuse bolts.

When inserting the injector, be careful not to damage the injector tip.

Do not reuse the high pressure fuel pipe.


Do not reuse the support disc.

Do not reuse the injector rubber washer.

When replacing the rubber washer, the steal plate (A) part should be facing the cylinder installation part and the rubber plate (B) part should be facing the injector body part.


Do not reuse the combustion seal.

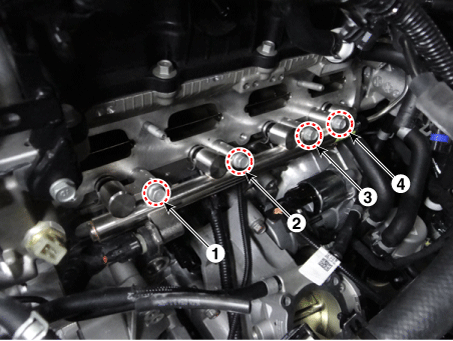

When tightening the delivery pipe installation bolts, pre-tighten them by hand, and then fully tighten them in the sequence of ② → ③ →① →④.


Install in the reverse order of removal.


The injector combustion seal should be replaced with a new one to prevent leakage after removing the injector.

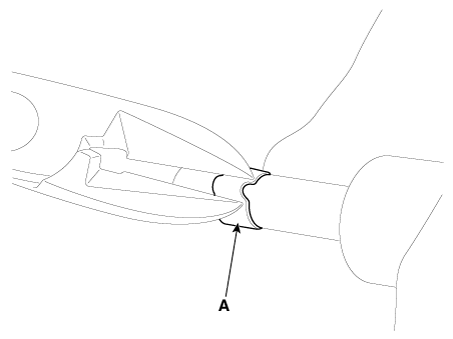

Remove the combustion seal (A) with a wire cutter.


With a wire cutter, carefully grab and pull out the sealing ring into a small loop and then cut it out.

Be careful not to damage the surface of the valve sleeve with the wire cutter.


Before reassembling the sealing ring, clean the groove with a clean cloth.

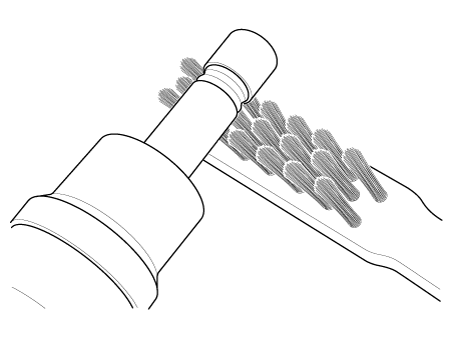

Any coking on the injector sealing surface must be carefully removed with a brass-wire brush.


The surfaces of the new sealing ring must be clean and free of grease.

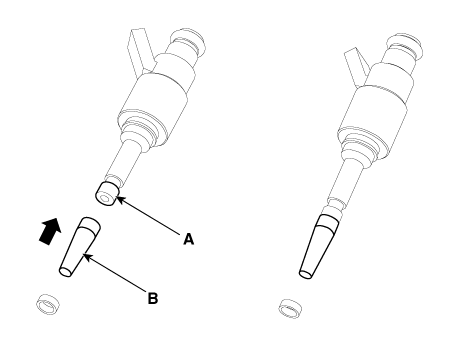

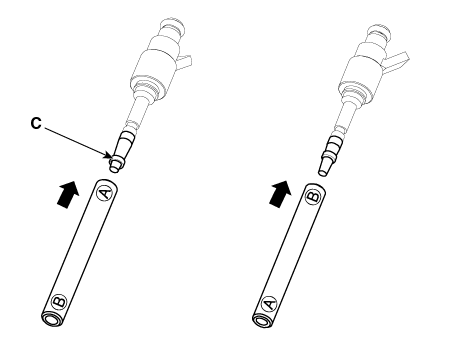

Place the seal installing guide (B) (SST No.: 09353-2B000) on the tip of the injector so as not to damage the injector tip (A).

Push the sealing ring (C) with thumb and index finger over the conical assembly tool until it snaps into the groove.

The complete assembly must not take longer than 2 to 3 seconds.

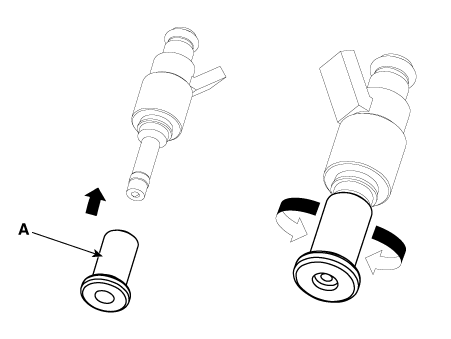

To size the sealing ring the injector is first introduced into the sizing tool (A) (SST No.: 09353-2B000) and then pressed and at the same time rotated 180° into the sizing tool.


Pull the injector out of the sizing tool by turning it in the reverse direction of the press-in process.


Check that the seal ring has not been damaged during assembly to the injector and that no circumferential scratches are present.

Do not reuse the combustion seal.

The seal must be completely free of grease and oil.

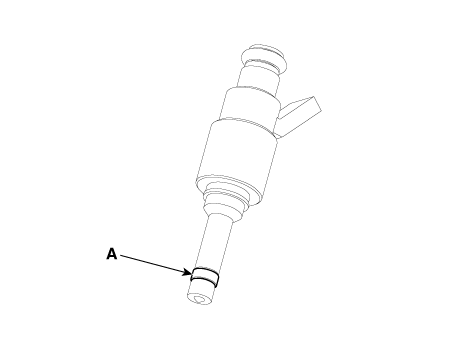

Check that the combustion seal (A) is correctly installed.

Signal Waveform

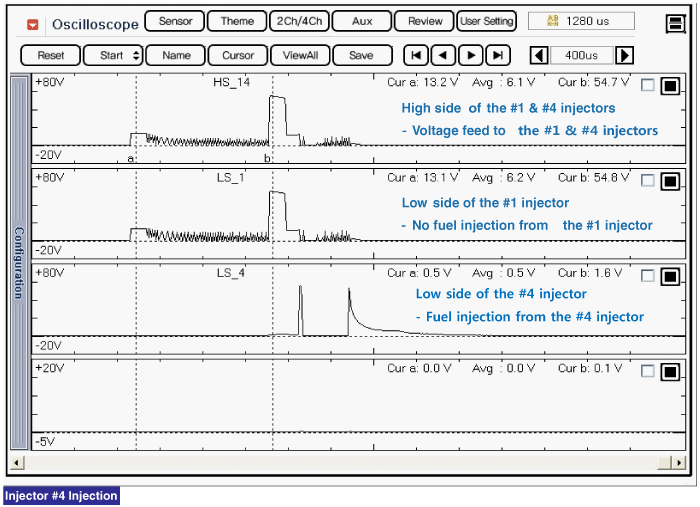

The three waveforms below are taken from the #1 and #4 injectors. The top waveform is from the high side (feed side) of the #1 and #4 injectors, while the middle waveform is from the low side (ground side) of the #1 injector and the bottom waveform is from the low side of the #4 injector.

The middle waveform is the same as the top waveform because there is no ground for the circuit. With no current flowing in the circuit, the #1 injector is not energized and fuel does not flow.

The bottom waveform shows that ground is supplied and there is a voltage drop across the #4 injector. With current flowing in the circuit, the #4 injector is energized and fuel flows.
