Kia Stinger: Light bulb position (Side) / Map lamp (LED type) bulb replacement

Kia Stinger CK 2018-2025 Owners Manual / Maintenance / Light bulb position (Side) / Map lamp (LED type) bulb replacement

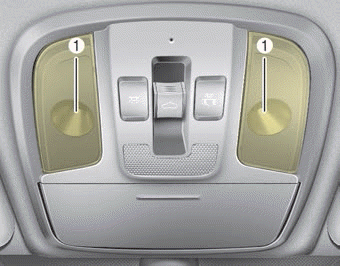

If the map lamp (LED) (1) does not operate, have the vehicle checked by an authorized Kia dealer.

The LED lamps cannot be replaced as a single component because they are part of an integrated unit. The LED lamps have to be replaced with the unit.

A skilled technician should check or repair the map lamp (LED), for it may damage related parts of the vehicle.
