Kia Stinger: Body Electrical System / Power Door Locks

Kia Stinger CK 2018-2025 Service Manual / Body Electrical System / Power Door Locks

Components and components location

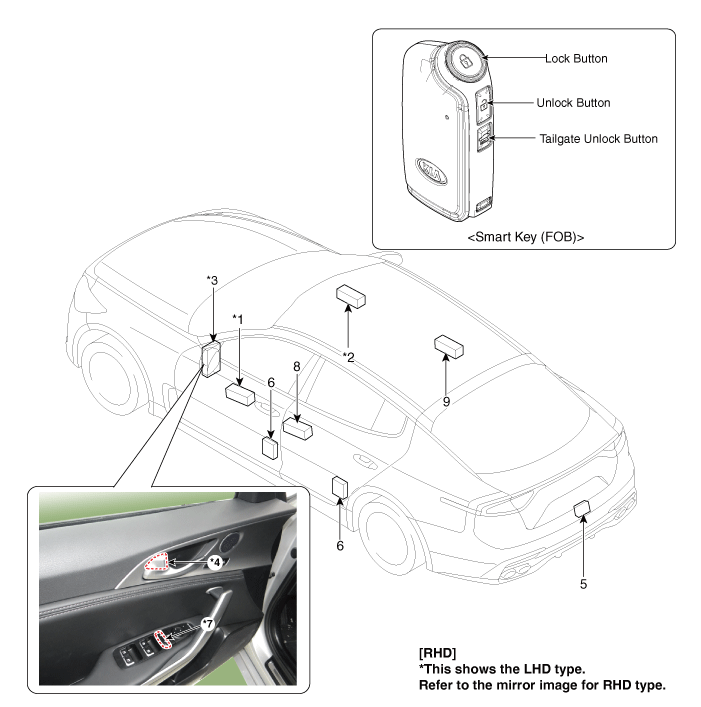

Component Location

1. Driver power window switch
2. Assist power window switch
3 . Integrated central control unit (ICU)
4 . Door lock knob
5 . Tailgate actuator

6. Door latch assembly
7 . Door lock/unlock switch
8 . Rear left power window switch
9 . Rear right power window switch
