Kia Stinger: If you have a flat tire / Removing and storing the spare tire

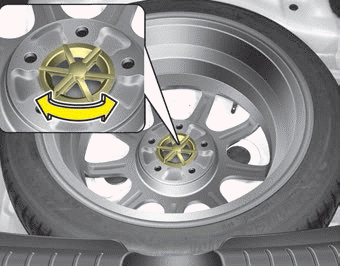

Turn the tire hold-down wing bolt counterclockwise.
Store the tire in the reverse order of removal.
To prevent the spare tire and tools from “rattling” while the vehicle is in motion,
store them properly.
If it is hard to loosen the tire holddown wing bolt by hand, you can loosen it
easily using the jack handle.

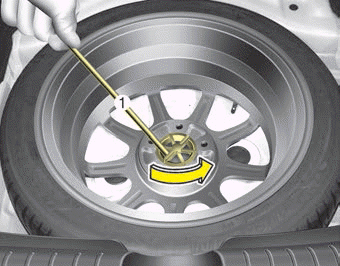

1. Put the jack handle (1) inside of the tire hold-down wing bolt.
2. Turn the tire hold-down wing bolt counterclockwise with the jack handle.
Use caution when utilizing the sharp jack handle.
WARNING - Touching luggage room floor surface
Do not touch luggage room metal surface while the engine is operating or hot.
Doing so could result in serious personal injury.
Turn the engine off and wait until it cools down or wear gloves to remove
the spare tire from the luggage room.
The jack and wheel lug nut wrench are stored in the luggage compartment. Remove
the panel indicated in the illustration.
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
Jacking instructions
...
1. Park on a level surface and apply the parking brake firmly.
2. Place the transaxle shift lever in P (Park).
3. Activate the hazard warning flashers.
4. Remove the wheel lug nut wrench, jack ...
