Kia Stinger: Suspension System

Kia Stinger CK 2018-2024 Service Manual / Suspension System

Special service tools
Special Service Tools

Tool Name / Number
Illustration
Description
Engine support fixture (bar)
09200-3N000

Used for holding engine assembly when removing / installing transaxle
Used with the supporter (09200-2S100)
Engine support fixture (supporter)
09200-2S100

Used for holding engine assembly when removing / installing transaxle
Used with the bar (09200-3N000)
0K517-J5100


Shock absorber lock nut remover
09546-3X100


Strut nut installation/remover tool
0K546-F6100



Engine support fixture assembly drawing

Troubleshooting
Troubleshooting

Symptom
Expected cause
Countermeasure
Heavy weight feeling on steering wheel
Faulty on front wheel alignment
Adjust or repair
Over rotation resistance of lower arm ball joint
Replace
Over rotation resistance of strut bearing
Replace
Too low amount of Tire air pressure
Adjust
Steering wheel recovery trouble
Faulty on front wheel alignment
Adjust or repair
Noise or ride comfort trouble
Faulty on wheel alignment
Adjust or repair
Inappropriated tire air pressure
Adjust
Faulty function of shock absorber
Replace
Damaged coil spring
Replace
Damaged stabilizer
Replace
Damaged lower arm bushing
Replace
Stabilizer link fixing nut got loosen
Retighten
Damaged stabilizer link (dust cover tearing, ring broke away)
Replace
Abnormal worned out of tire
Faulty wheel alignment
Adjust or repair
Inappropriated tire air pressure
Adjust
Unstable steering wheel
Front wheel alignment trouble
Adjust or repair
Lower arm ball joint turning resistance is too small
Replace
Damaged lower arm bushing
Replace
Vehicle pushed aside phenomenon
Wheel alignment trouble
Adjust or repair
Unbalance of right/left tire
Adjust or replace
Damaged or transformed lower arm bushing
Replace
Damaged coil spring
Replace
Steering wheel juddering
Front wheel alignment trouble
Adjust or repair
Wheel balance trouble
Adjust or repair
Lower are ball joint turning resistance is too much or too small
Replace
Damaged stabilizer
Replace
Damaged lower arm bushing
Replace
Shock absorber operating trouble
Replace
Coil spring trouble
Replace

Strange sound type from under body by parts

Conditions for occurrence
Strange sound on uneven ground
Parts
Step bar link
Step bar bush
Lower arm ball joint
Strut insulator
Trouble area

Type of strange sound
Rattling, Creaking noise
Squeaking noise
Clunking, Knocking noise
Clicking, Creaking noise
Occurring area
Under part
Under part
Under part
Upper part
Driving speed
20 - 40 ㎞/h (12.4 - 24.9 m/h)
While low speed driving (20 - 40 ㎞/h (12.4 - 24.9 m/h))
20 - 40 ㎞/h (12.4 - 24.9 m/h)
-
Condition of road
Uneven road / bump
Uneven road / bump
Uneven road / bump
Uneven road / tough road
Reason
Loosen / leakage (teared down) / corrosion
Separation of bar and bush / slip
Loosen / leakage (teared down) / corrosion
Tightened (decrease torque) and interference

Conditions for occurrence
Strange sound while going through uneven road / tough road
Parts
Strut / Shock absorber
Strut / Shock absorber
Strut / Shock absorber
Strut / Shock absorber
Trouble area

Type of strange sound
Rubbing noise
Clicking, Creaking noise
Rubbing noise
Clicking noise
Occurring area
Upper part
Upper part
Upper part (rear)
Upper part (rear)
Driving speed
15 - 25 ㎞/h (9.3 - 15.5 m/h)
15 - 25 ㎞/h (9.3 - 15.5 m/h)
15 - 40 ㎞/h (9.3 - 24.9 m/h)
30 - 50 ㎞/h (18.6 - 31.1 m/h)
Condition of road
Uneven road
Uneven road
Uneven road and tough road
Tough road
Reason
Friction sound from piston load and bumper rubber inner side
Rolled down bumper rubber
(tapping sound of bumper rubber upper part and insulator under part)
Adhesion trouble of upper bracket rubber
Suspension tuning trouble
(damping force, rubber characteristic)

Conditions for occurrence
Strange sound on uneven road
Strange sound while steering
Strange sound while driving
Parts
Lower arm "G" bush
Cross member bush
Strut bearing
Wheel / Hub bearing
Trouble area

Type of strange sound
Rubbing noise
Clicking noise
Clicking noise
Roaring noise
Occurring area
Under part
Under part
Upper part
Lower and side part
Driving speed
10 - 40 ㎞/h (6.2 - 24.9 m/h)
-
-
20 - 60 ㎞/h (12.4 - 37.3 m/h)
Condition of road
Bump / tough road
Even road
Even road
Even road
Reason
Dropped off / fallen off
Dropped off / fallen off
Grease leakage
Damaged from outer impact, foreign substance inflow

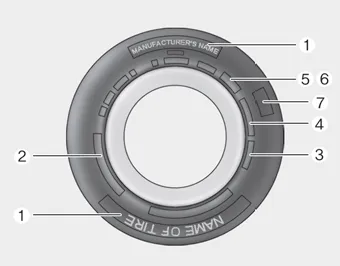

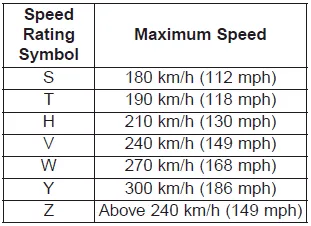

Wheel and tire diagnosis

Wheel /tire noise, vibration and harshness concerns are directly related to vehicle speed and are not generally affected by acceleration, coasting or decelerating. Also, out-of-balance wheel and tires can vibrate at more than one speed. A vibration that is affected by the engine rpm, or is eliminated by placing the transmission in Neutral is not related to the tire and wheel. As a general rule, tire and wheel vibrations felt in the steering wheel are related to the front tire and wheel assemblies. Vibrations felt in the seat or floor are related to the rear tire and wheel assemblies. This can initially isolate a concern to the front or rear.

Careful attention must be paid to the tire and wheels. There are several symptoms that can be caused by damaged or worn tire and wheels. Perform a careful visual inspection of the tires and wheel assemblies. Spin the tires slowly and watch for signs of lateral or radial runout. Refer to the tire wear chart to determine the tire wear conditions and actions

Wheel and tire diagnosis
Rapid wear at the center
Rapid wear at both shoulders
Wear at one shoulder

Center-tread down to fabric due to excessive over inflated tires

Lack of rotation

Excessive toe on drive wheels

Heavy acceleration on drive

Under-inflated tires

Worn suspension components

Excessive cornering speeds

Lack of rotation

Toe adjustment out of specification

Camber out of specification

Damaged strut

Damaged lower arm

Partial wear
Feathered edge
Wear pattern

Caused by irregular burrs on brake drums

Toe adjustment out of specification

Damaged or worn tie rods

Damaged knuckle

Excessive toe on non-drive wheels

Lack of rotation


Front Differential Carrier
