Kia Stinger: Specifications & Consumer information / Tires and wheels

Kia Stinger CK 2018-2025 Owners Manual / Specifications & Consumer information / Tires and wheels

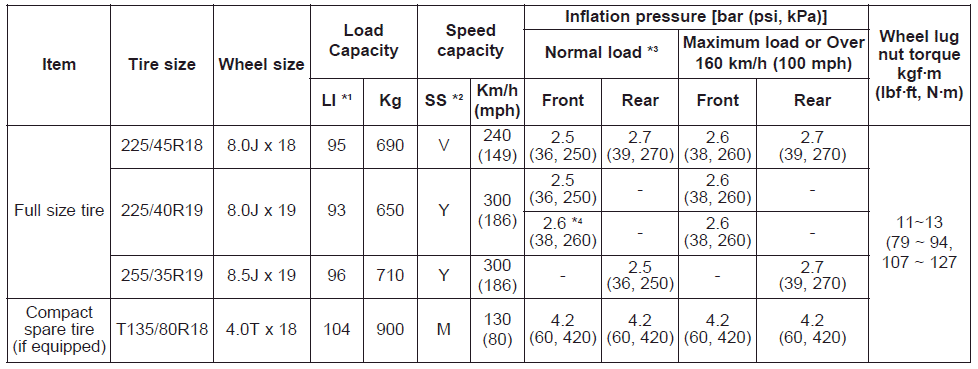

*1: Load Index
*2: Speed Symbol
*3: Normal load : Up to 3 persons
*4: It is applied to Lambda II PE 3.3L T-GDI AWD vehicle.

CAUTION

When replacing tires, use the same size originally supplied with the vehicle. Using tires of a different size can damage the related parts or make them work irregularly.

✽ NOTICE
