Repair procedures
Replacement


Put on gloves to protect your hands.



Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

Take care not to bend or scratch the trim and panels.

1.

Remove the tail gate trim.

(Refer to Tail Gate - "Tail Gate Trim")

2.

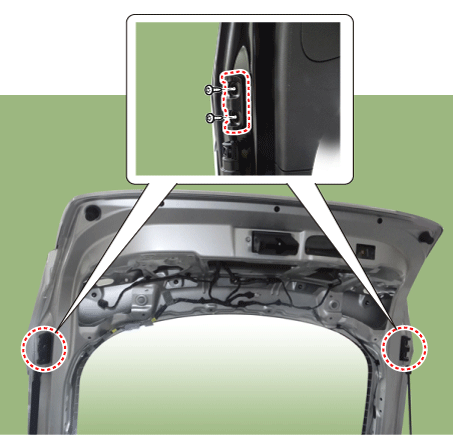

Remove the tail gate lever bumper (A) after loosening the mounting screw.

3.

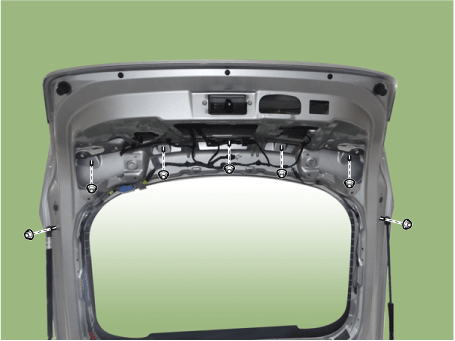

Loosen the rear spoiler mounting nuts.

Tightening torque :

5.9 - 6.4 N·m (0.6 - 0.65 Kgf·m, 4.3 - 4.7 lb·ft)

4.

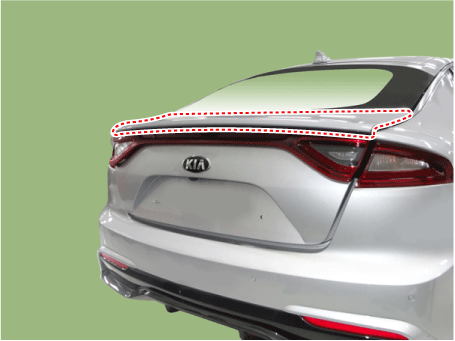

Remove the rear spoiler (A).

5.

Install in the reverse order of removal.



Replace any damaged clips.
