Kia Stinger: Your vehicle at a glance / Engine compartment

Kia Stinger CK 2018-2025 Owners Manual / Your vehicle at a glance / Engine compartment

■ THETA II 2.0L T-GDI Engine (Gasoline)

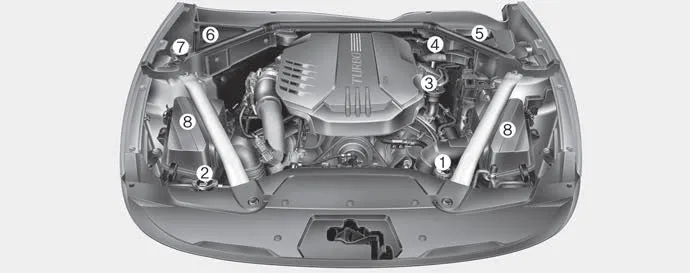

■ Lambda II PE 3.3L T-GDI Engine (Gasoline)

1. Engine coolant reservoir
2. Radiator cap
3. Engine oil filler cap
4. Engine oil dipstick
5. Brake fluid reservoir
6. Fuse box
7. Windshield washer fluid reservoir
8. Air cleaner
