Kia Stinger: Engine And Transmission Assembly / Engine Mounting

Kia Stinger CK 2018-2025 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Mounting

Components and components location

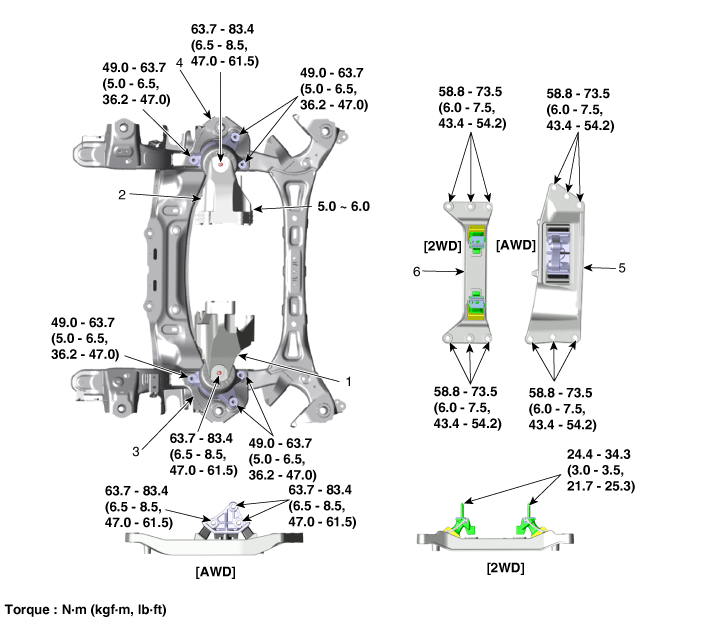

Components

1. Engine mounting support bracket (LH)
2. Engine mounting support bracket (RH)
3. Engine mounting bracket (LH)
4. Engine mounting bracket (RH)
5. Transmission mounting bracket (AWD)
6. Transmission mounting bracket (2WD)

Repair procedures
Removal and Installation

Engine Mounting Bracket

1.

Remove the engine room front under cover and engine room side cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")

2.

Disconnect the universal joint assembly from the shaft joint.

(Refer to Steering System - "Steering Column and Shaft")

3.

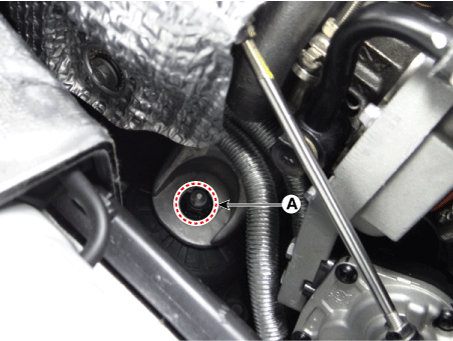

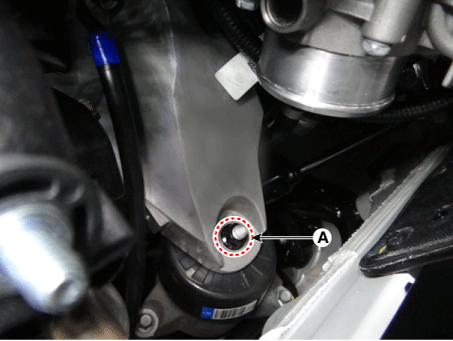

Remove the engine mounting support bracket nut (A).

Tightening torque :

63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 Ib·ft)

[LH]

[RH]

4.

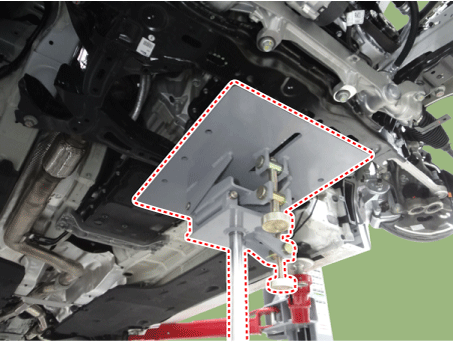

Install the jack to the edge of the oil pan to support the engine.



Put the rubber block between the jack and oil pan to avoid damaging the oil pan.

5.

Lift the engine slightly using the jack to obtain space for removing the engine mounting.

6.

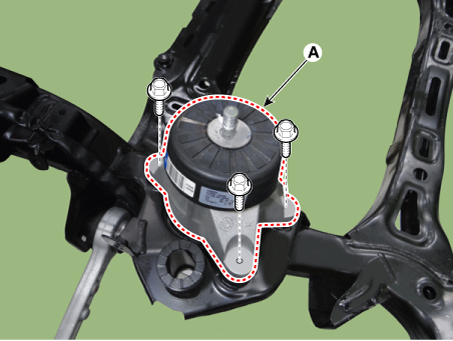

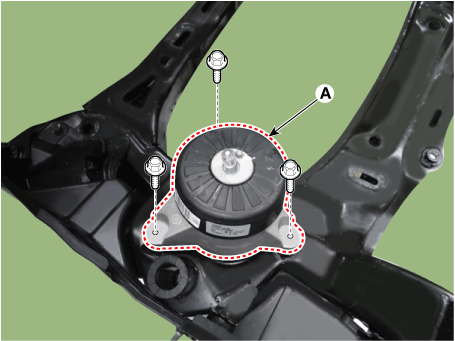

Remove the engine mounting bracket (A).

Tightening torque :

49.0 - 63.7 N·m (5.0 - 6.5 kgf·m, 36.2 - 47.0 lb·ft)

[LH]

[RH]

7.

Install in the reverse order of removal.

Transmission mounting bracket (AWD)

1.

Remove the engine room rear under cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")

2.

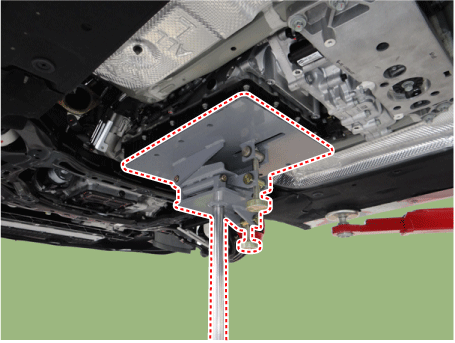

Install the jack under the transmission to support the transmission.



Put the rubber block between the jack and transmission to avoid damaging the transmission.

3.

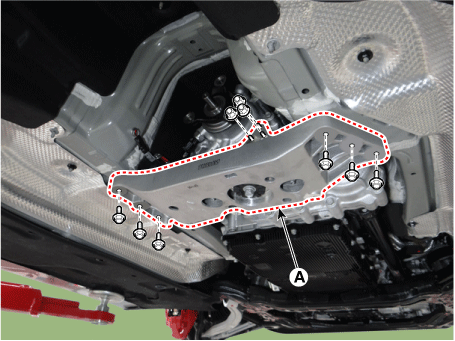

Remove the transmission mounting bracket (A).

Tightening torque

Bolts :

58.8 - 73.5 N·m (6.0 - 7.5 kgf·m, 43.4 - 54.2 lb·ft)

Nuts :

63.7 - 83.4 N·m (6.5 - 8.5 kgf·m, 47.0 - 61.5 lb·ft)

4.

Install in the reverse order of removal.

Transmission mounting bracket (2WD)

1.

Remove the engine room rear under cover.

(Refer to Engine and Transmission Assembly - "Engine Room Under Cover")

2.

Install the jack under the transmission to support the transmission.



Put the rubber block between the jack and transmission to avoid damaging the transmission.

3.

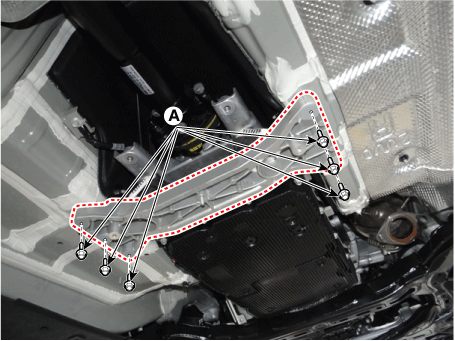

Remove the transmission mounting bracket mounting bolts (A).

Tightening torque :

58.8 - 73.5 N·m (6.0 - 7.5 kgf·m, 43.4 - 54.2 lb·ft)

4.

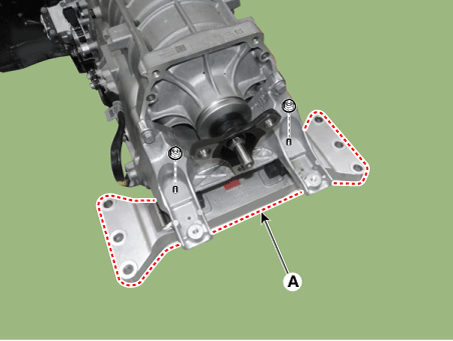

Remove the transmission mounting bracket (A).

Tightening torque :

24.4 - 34.3 N·m (3.0 - 3.5 kgf·m, 21.7 - 25.3 lb·ft)

5.

Install in the reverse order of removal.
