Kia Stinger CK: Transfer Assembly / Oil Seal

Kia Stinger (CK) 2018-2023 Service Manual / 4 Wheel Drive (AWD) System / Transfer Assembly / Oil Seal

Repair procedures

Replacement

Oil Seal (Main Shaft)

1.	Remove the transfer case assembly. (Refer to 4 Wheel Drive (AWD) System -"Transfer Case Assembly")

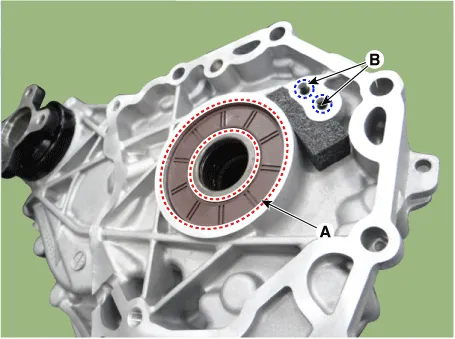

Remove the oil seal (A) using a flat head driver.

•	To prevent from oil leak at the Bentle Valve (B), replace the oil seal with the same installation direction of transfer case oil seal.

•	Watch out if the dust or foreign matters enters when oil seal replacement.

•	Do not reuse the oil seal.

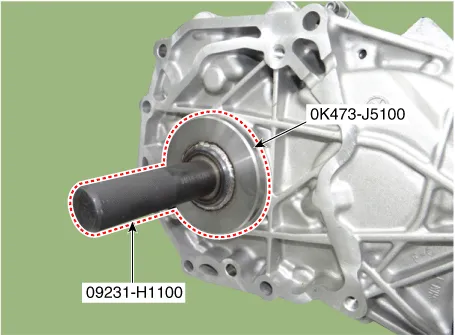

Install the new oil seal with special service tools (0K473-J5100, 09231-H1100).

Check if there is any gap after oil seal installation.

4.	Install the transfer case assembly. (Refer to 4 Wheel Drive (AWD) System -"Transfer Case Assembly")

Oil Seal (Rear Flange)

1.	Remove the rear propeller shaft assembly. (Refer to Driveshaft and axle -"Rear Propeller Shaft Assembly")

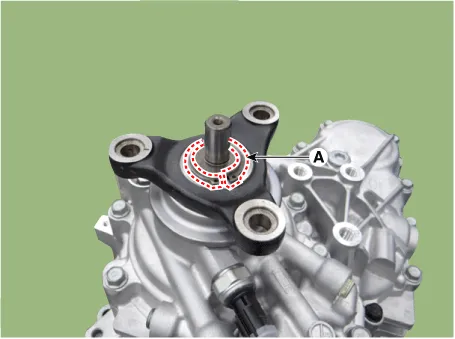

Remove the snap ring (A) using a snap ring plier.

Do not reuse the snap ring.

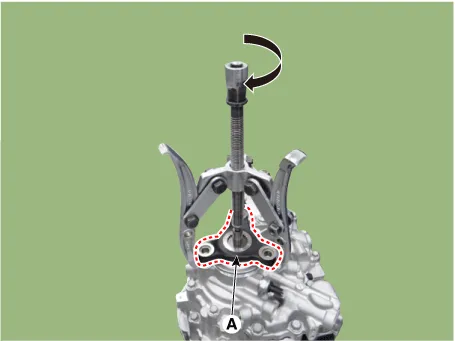

3.	Remove the rear flange (A) using a gear puller.

Remove the oil seal (A) using flat head driver.

•	Watch out if the dust or foreign matters enters when oil seal replacement.

•	Do not reuse the oil seal.

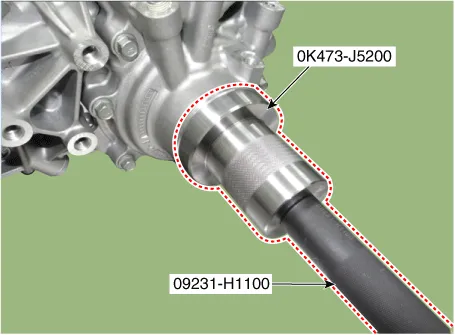

Install the new oil seal using special service tools (0K473-J5200, 09231-H1100).

Check if there is any gap after oil seal installation.

Install the rear flange.

(1)

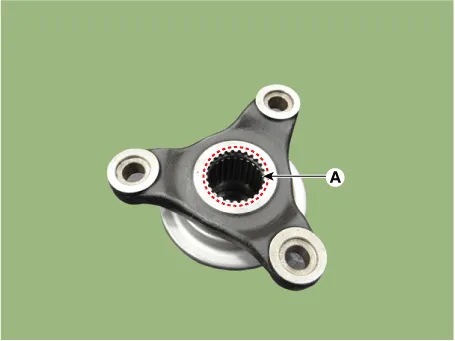

Replace the O-ring (A) at inner side of the rear flange.

Do not reuse the O-ring.

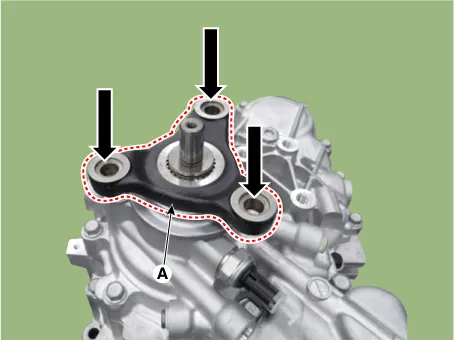

(2)	Install the rear flange (A) to the transfer case fully stick to it.

Install the snap ring.

(1)	Measure the thickness of disconnected snap ring.

(2)

Select the same size snap ring with the disconnected one using below table.

Part No.	Thickness [mm(in)]
47366-4J184	1.84 (0.0724)
47366-4J187	1.87 (0.0736)
47366-4J190	1.90 (0.0748)
47366-4J193	1.93 (0.0759)
47366-4J196	1.96 (0.0771)
47366-4J199	1.99 (0.0783)
47366-4J202	2.02 (0.0795)
47366-4J205	2.05 (0.0807)
47366-4J208	2.08 (0.0818)
47366-4J211	2.11 (0.0830)
47366-4J214	2.14 (0.0842)
47366-4J217	2.17 (0.0854)
47366-4J220	2.20 (0.0866)
47366-4J223	2.23 (0.0877)
47366-4J226	2.26 (0.0889)
47366-4J229	2.29 (0.0901)
47366-4J232	2.32 (0.0913)
47366-4J235	2.35 (0.0925)
47366-4J238	2.38 (0.0937)

(3)

Install a new snap ring (A) using snap ring plier.

Do not reuse the snap ring.

8.	Install the rear propeller shaft assembly. (Refer to Driveshaft and axle -"Rear Propeller Shaft Assembly")
