Kia Stinger CK: Fuel Delivery System / Fuel Tank
Repair procedures
| Removal |
| 1. |
Release the residual pressure in fuel line. (Refer to the Fuel Delivery System - "Release Residual Pressure in Fuel Line") |
| 2. |
Switch "OFF" the ignition and disconnect the negative (-) battery terminal. |
| 3. |
Remove the rear seat cushion. (Refer to Body - "Rear Seat Assembly") |
| 4. |

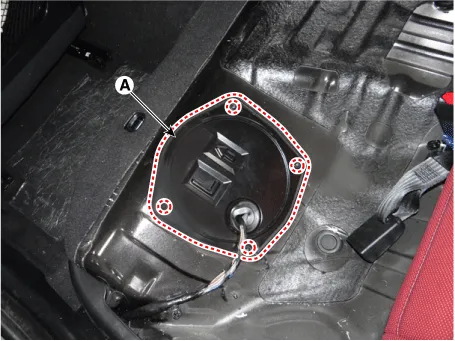

Remove the fuel pump service cover (A) after loosening the mounting screws.
|
| 5. |

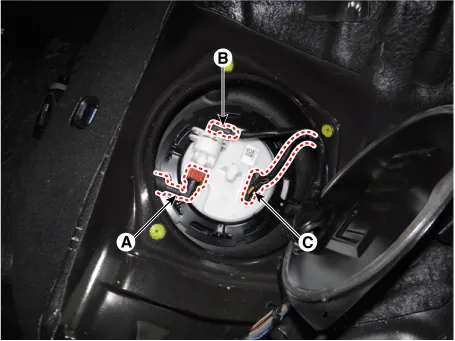

Disconnect the fuel feed quick-connector (A). |
| 6. |
Disconnect the fuel pressure sensor connector (B). |
| 7. |
Disconnect the fuel pump connector (C).
|
| 8. |

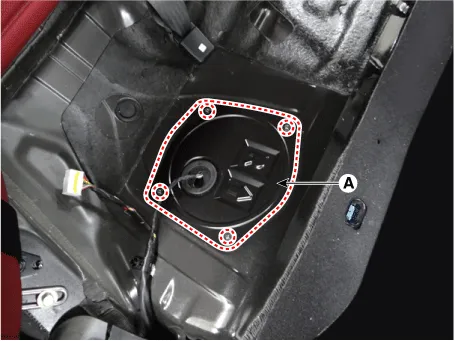

Remove the sub fuel sender service cover (A) after loosening the mounting screws.
|
| 9. |

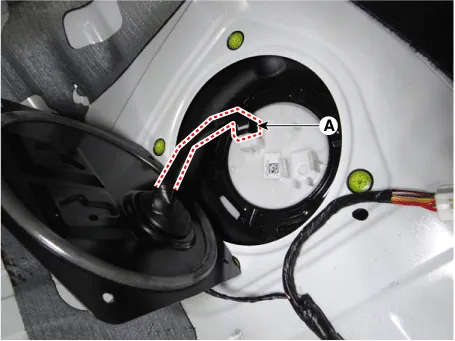

Disconnect the sub fuel sender connector (A).
|
| 10. |
Lift the vehicle. |
| 11. |
Remove the center muffler assembly. (Refer to Engine Mechanical System - "Muffler") |
| 12. |
Remove the propeller shaft assembly. (Refer to Driveshaft and Axle - "Propeller Shaft") |
| 13. |

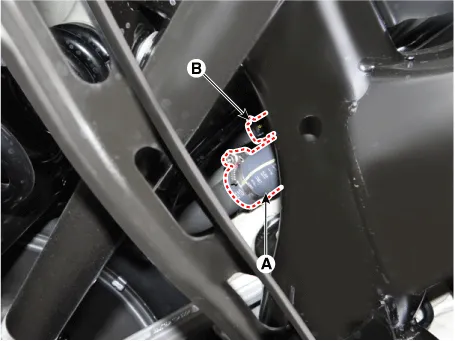

Disconnect the fuel filler hose (A) and leveling hose (B).
|
| 14. |

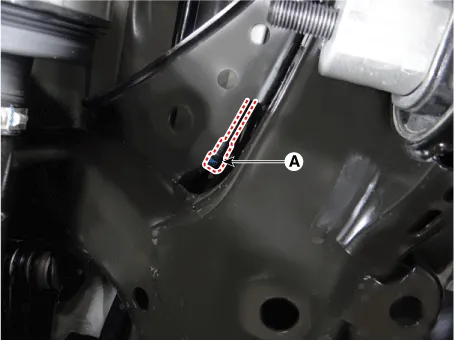

Disconnect the ventilation (A).
|
| 15. |

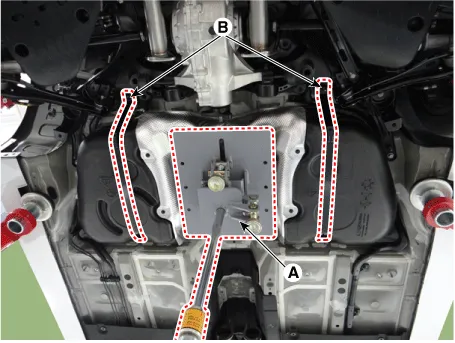

Support the fuel tank with jack (A). |
| 16. |
Remove the fuel tank installation nut (B) and then loosen the fuel tank.
|
| 17. |

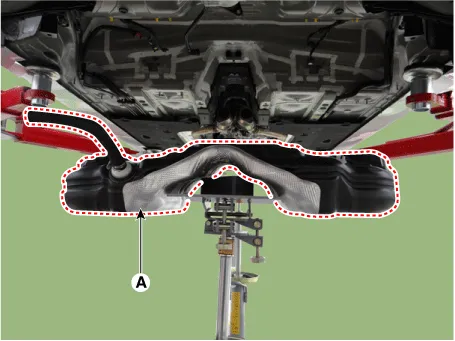

Remove the fuel tank (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
