Kia Stinger: Timing System / Front Oil Seal

Kia Stinger CK 2018-2023 Service Manual / Engine Mechanical System / Timing System / Front Oil Seal

Repair procedures
Replacement
1.

Remove the crankshaft damper pulley.

(Refer to Drive Belt System - "Crankshaft Damper Pulley")

2.

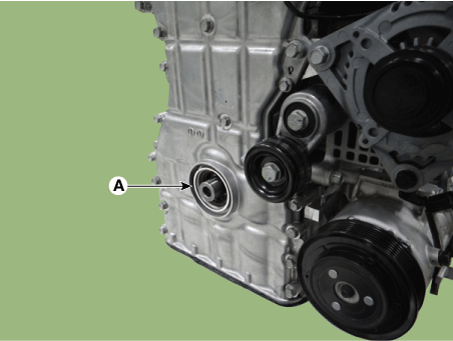

Remove the front oil seal (A).

3.

Install the new front oil seal.

(1)

Apply engine oil on the edge of new front oil seal.



Remove any debris from the lip portion of the oil seal.

(2)

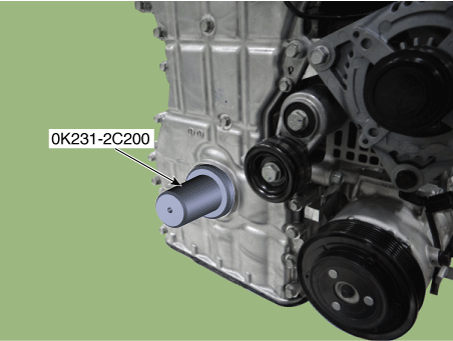

Using the SST (0K231-2C200), install a new front oil seal.



Always use a new front oil seal.

4.

Install the crankshaft damper pulley.

(Refer to Drive Belt System - "Crankshaft Damper Pulley")
