Kia Stinger: Features of your vehicle / Head Up Display (HUD)
Description

The head up display is a transparent display which projects a shadow of some
information of the instrument cluster and navigation on the windshield glass.
- The head up display image on the windshield glass may not be visible when:
- Sitting posture prevents visibility.
- Wearing polarized sunglasses.
- There is an object on the cover of the head up display.
- Driving on a wet road.
- Lighting is turned on inside the vehicle.
- Any light comes from the outside.
- Wearing inadequate glasses for your eyesight.
- If the head up display image is not shown well, adjust the height, rotation
or illumination of the head up display in the LCD window. ❈ For more details,
refer to “LCD window” in this chapter.
- When the head up display needs inspection or repair, consult an authorized
Kia dealer.
- Do not place any accessories on the dashboard or attach any objects on the
windshield glass.
✽ NOTICE
Installing window tint or any other type of metallic coating on the windshield
can prevent the driver from seeing the Head Up Display images.
WARNING - Head up display
The Head up display is a supplemental system. Do not solely rely on the system,
always drive safely, and pay attention to the driving conditions on the road.
✽ NOTICE
When replacing the front windshield glass of vehicles equipped with the head
up display, replace it with a windshield glass designed for the head up display
operation. Otherwise, duplicated images may be displayed on the windshield glass.
Head Up Display ON/OFF

The HUD display will be activated or deactivated in user setting mode while engine
is ON.

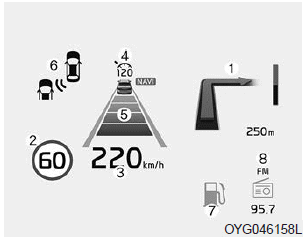

Head Up Display Information

1. Turn By Turn navigation information
2. Road signs
3. Speedometer
4. Cruise setting speed
5. Smart Cruise Control (SCC) information
6. Blind-spot Collision Warning (BCW) system information
7.Warning lights (Low fuel)
8. AV mode information
Head Up Display Setting
On the LCD display, you can change the head up display settings as follows.
1. Display height
2. Rotation
3. Brightness
4. Content select
5. Speedometer size
6. Speedometer color
❈ For more details, refer to “LCD window” in this chapter.
